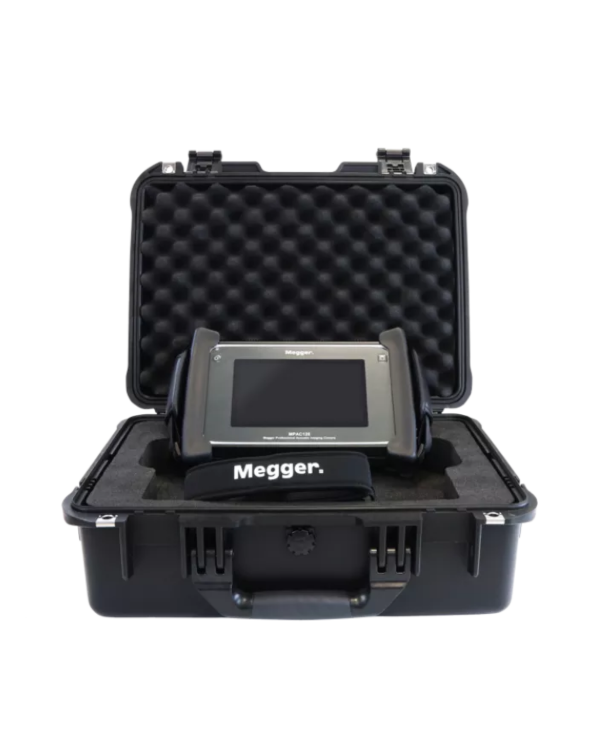

Megger MPAC128 Acoustic Imager

The Megger MPAC128 Acoustic Imaging Camera is made for detecting gas leaks, pressure leaks, and partial discharge in industrial systems. It operates within a frequency range of 2 kHz to 48 kHz and features a 128-microphone array for precise detection up to 120 meters. The device includes an 8 MP optical camera with a 62° horizontal and 48° vertical field of view and supports data storage in JPG, WAV, and MP4 formats. With an IP54-rated enclosure, a 7-inch touchscreen interface, and up to 4 hours of battery life, the MPAC128 is suitable for field operations. It is compliant with IEC 61010-1, IEC 61326-1, and ATEX standards for hazardous environments.

Product Info Related Products

Detection Frequency	2kHz - 48kHz
Detection Range	0.3 - 120m
Optical Camera Resolution	8 megapixels
Sound Image FOV	Horizontal: 62° Vertical: 48°
Leak Detection Rate	1m 7 bar 0.37 ml/s 10m 7 bar 0.7 ml/s
Microphones in Array	128
Camera Focal Lenth	3.04mm fixed focal length
Test Sound Pressure Level Range	25.7 dBA - 132.5 dBA
Nominal Frame Rate	25 fps (min)

Detects multiple gas types and pressurised gas leaks with ease.
Simple operation with only two parameters to set.
Provides leak rate quantification for cost estimation.
Phase Resolved Partial Discharge (PRPD) for discrimination between different types of partial discharge.
Focus function reduces unwanted noise in noisy environments.
Converts ultrasonic monitoring sounds to audible sounds for pinpointing leaks.
Expandable storage for storing results, images, and videos on site.
Easy update firmware to latest version via the USB-C memory stick or microSD card.
Free Acoustic Analysis software.
