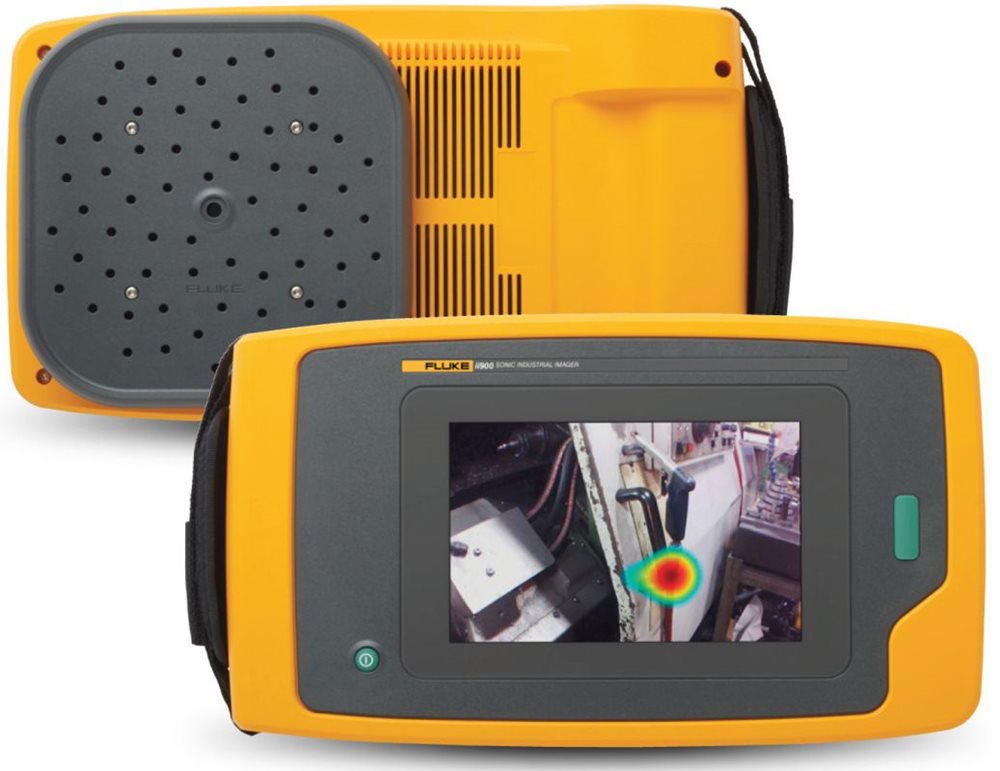

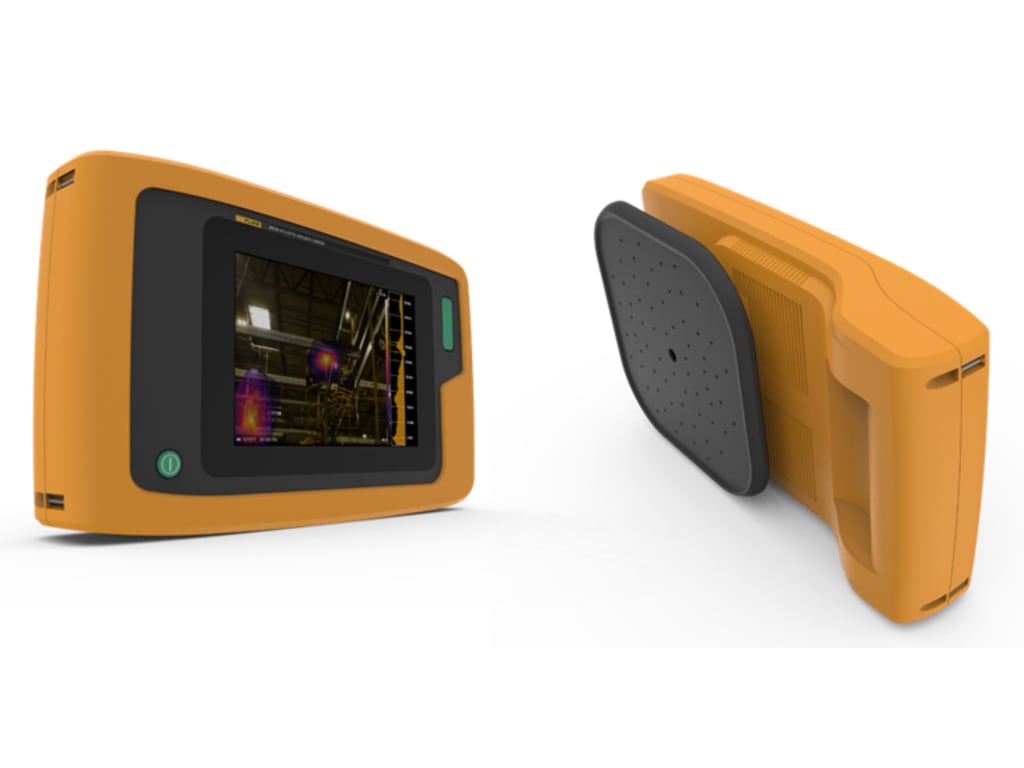

Fluke ii900 Series Sonic Industrial Imagers

The Fluke ii900 Series Sonic Industrial Imagers allows maintenance teams to accurately locate air, gas, and vacuum leaks in compressed air systems, even in noisy environments. The Fluke ii900 series consists of the Fluke ii910 and Fluke ii900 Acoustic Imagers, each equipped with an array of microphones that generate a spectrum of decibel levels per frequency that allow for an expanded field-of-view to perform these measurements.

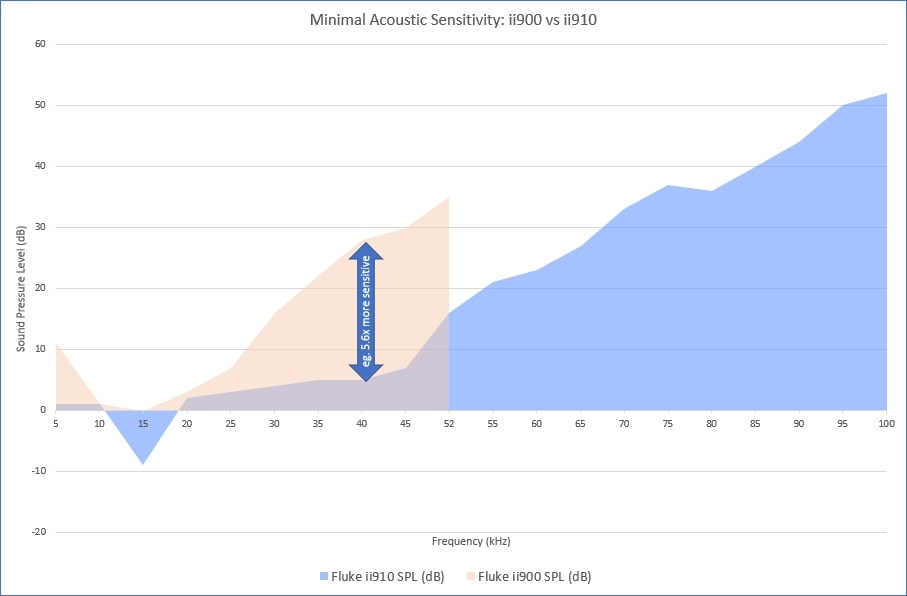

The Fluke ii910 provides increased sensitivity to detect leaks that are smaller or farther away. The Fluke ii900 and ii910 each have built-in SoundSight™ and SoundMap™ technology to visualize sound waves and showcase a visual map of noise sources using an acoustic array on a 7 inch LCD capacitive touchscreen.

High-voltage electricians, electrical test engineers, or grid-maintenance teams that are inspecting and maintaining power distribution or high voltage equipment will find that the Fluke ii900 or the Fluke ii910 Acoustic Imagers are simple to learn and easy to navigate.

Product Info Related Products

ii910		ii900
Sensors
# of microphones	64 digital MEMS microphones	64 digital MEMS microphones
Frequency band	2 kHz to 100 kHz	2 kHz to 52 kHz
Detection range	.5 m to 120 m (1.6 to 393 feet)	0.5 to > 70 meters (1.6 to > 230 feet)
Operation distance range	0.5 to > 50 meters (1.6 to > 164 feet)	0.5 to > 50 meters (1.6 to > 164 feet)
Field of view	63° ± 5°	63°± 5°
Nominal frame rate	25 FPS	25 FPS
Display
Resolution	1280 x 800 (1,024,000 pixels)	1280 x 800 (1,024,000 pixels)
Touchscreen	Capacitive	Capacitive
Acoustic image	Yes, SoundMap image	Yes, SoundMap image
Acoustic Measurements
Measurement range	12.1 dB SPL to 114.6 dB SPL ±1 dB SPL 2 kHz 4.4 dB SPL to 101.2 dB SPL ±2 dB SPL 19 kHz 12.8 dB SPL to 119.2 dB SPL ±1 dB SPL 35 kHz 19.8 dB SPL to 116.1 dB SPL ±3 dB SPL 52 kHz 41.4 dB SPL to 129.0 dB SPL ±1 dB SPL 80 kHz 54.4 dB SPL to 135.5 dB SPL ±1 dB SPL 100 kHz	15.4 dB SPL to 115.2 dB SPL ±1 dB SPL 2 kHz 5.6 dB SPL to 102.5 dB SPL ±2 dB SPL 19 kHz 28.4 dB SPL to 131.1 dB SPL ±1 dB SPL 35 kHz 41.8 dB SPL to 133.1 dB SPL ±3 dB SPL 52 kHz
Auto max/min dB gain	Auto or manual, user-selectable	Auto or manual, user-selectable
Frequency band selection	User-selectable through user-made presets or manual entry	User-selectable through user-made presets or manual entry

Extremely precise and quick responding touchscreen
SoundMap™ (a visual map of noise sources using an acoustical array)
SoundSight™ (conversion of sound waves to a visual image)
Intuitive user interface
Grayscale, Ironbow, and Blue-Red palettes
Rugged, hard carrying case
Ensure proper air pressure to your pneumatic equipment
Lower utility costs
Reduce leak detection time
Improve reliability in your production line

General Safety	IEC 61010-1
Electromagnetic Compatibility (EMC) International	IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2 CISPR 11: Group 1, Class A
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication)
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
