ANSI C62.45: Guide On Surge Testing For Equipment Connected To Low-Voltage AC Power Circuits
Standard Overview
ANSI C62.45 lists procedures for the performance of surge testing on electrical and electronic equipment connected to low-voltage AC power circuits, specifically using the recommended test waveforms defined in IEEE Std C62.41.2-2002. Nevertheless, these recommendations apply to any surge testing, regardless of the specific surges that may be applied. ANSI C62.45, the third document in a Trilogy of three IEEE standards addressing surges in low voltage ac power circuits, focuses on test procedures, using representative surge waveforms developed based on the two other documents of the Trilogy. There are no specific models that are representative of all surge environments; the complexities of the real world need to be simplified to produce a manageable set of standard surge tests. To this end, a surge environment classification scheme is presented in IEEE Std C62.41.2-2002.
Table 1: Summary of applicable standard and additional surge testing waveforms for Location Categories A, B, and C (Scenario I only) and for Scenario II
Download Standard
Table 1: Summary of applicable standard and additional surge testing waveforms for Location Categories A, B, and C (Scenario I only) and for Scenario II
Scenario I Surges impringing upon the structure from the outside and generated within |
Scenario II Direct lightning flash |
||||||
Location Category | 100 kHz Ring Wave | Combination Wave | Separate Voltage/Current | 5/50 ns EFT Burst | 10/1000 μs
Wave
|
Inductive Coupling | Direct Coupling |
A | Standard | Standard | — | Additional | Additional | Category B Ring Wave | Case-by-case assesment |
B | Standard | Standard | — | Additional | Additional | ||
C Low | Optional | Standard | — | Optional | Additional | ||
C High | Optional | — | Standard | Optional | — |
Download Standard
Products Used in Testing
Teseq NSG 3150 Combination Wave Surge Generator | 15 kV
- Surge voltage up to 15 kV
- CDN range: Single & Three Phase, up to 63 A, 690 VAC, 1000 VDC
- Safest 15 kV connector type on the market
Haefely AXOS 8 Compact Conducted Immunity Test System
- Easy to operate with manual and automated test modes, software assisted test preparation, pre-defined test routines and visual aided test setups.
- Economic & Efficient Touch screen guarantees reduction of time and effort - Experience and know-how at a reasonable price.
- Safe and reliable operation by using safety interlock, warning lamp and emergency stop functions.

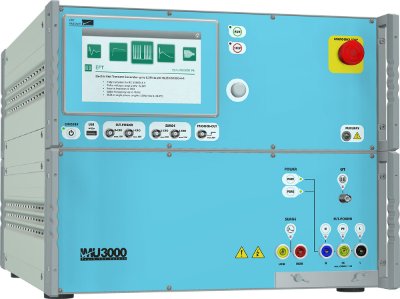

EMC Partner IMU3000 Immunity Tester
- 7” Colour touch panel
- Rotary knob for navigation and data entry
- EPOS (EMC PARTNER Operating System) a new concept in graphical user interface
EM Test NX5 Multifunctional Test Generator
- Small transient generator with 7" color touch screen
- IEC 61000-4-4 | Burst testing, 5.5kV
- IEC 61000-4-5 | Surge testing, 5.0kV
