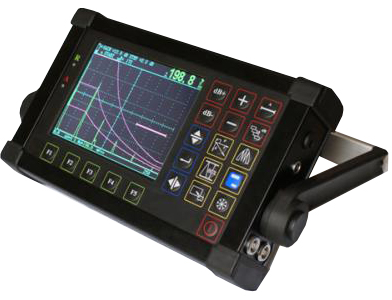

Qualitest QFD 200 Ultrasonic Flaw Detector

The Qualitest Ultrasonic Flaw Detector - QFD 200 is a redesigned version of Qualitest’s well known SUD 10 Ultrasonic Flaw Detector. The Qualitest Ultrasonic Flaw Detector - QFD 200 has all the familiar features of the SUD 10 flaw detector and is offered with an improved LCD screen, modern (USB) computer connection, compact design, and a more economical price package.

The Qualitest Ultrasonic Flaw Detector - QFD 200 allows for the automated calibration of transducer zero offset and/or velocity. With a large 300 A graph and 30,000 thickness value testing capabilities, this is the ideal unit for flaw detection.

Product Info Available Add-Ons

Scanning range (mm)	Scanning range (mm):2.5~10000 Steps: 2.5, 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 2000, 3000, 4000, 5000, 6000, 7000, 8000, 9000 and 10000. Step:0.1 mm (2.5 mm~99.9 mm),1 mm (100 mm~10000 mm)
Display delay (micro-s)	D-delay (micro-s):-20~+3400 Stage: -20, -10, 0.0, 10, 20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500, 2000, 2500, 3000, 3400. Step: 0.1 (-20 micro-s~999.9 micro-s), 1 (1000 micro-s~3400 micro-s)
Probe delay (micro-s)	P-delayt: 0.0~99.99 Step: 0.01
Frequency ranges (MHz)	Low frequency 0.2-1, middle frequency 0.5-4, high frequency 2-20, three steps optional
Detection sensitivity margin	=>60dB
Dynamic scope	=>32dB
