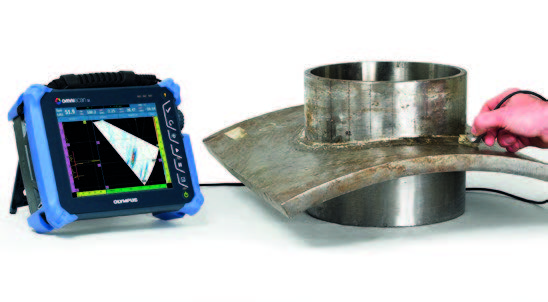

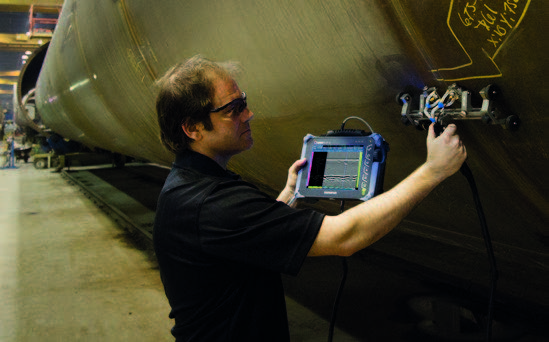

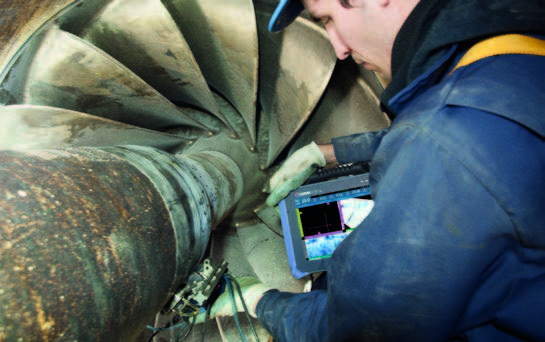

| Ultrasound Specifications |
| Connectors |
1 Phased Array connector: Olympus PA connector
2 UT connectors: LEMO 00 |
| Number of focal laws |
256 |
| Probe recognition |
Automatic probe recognition |
| Aperture |
16 elements |
| Number of elements |
64 elements |
| Pulser - PA Channel Voltage |
40 V, 80 V, and 115 V |
| Pulser - PA Channel Pulse Width |
Adjustable from 30 ns to 500 ns; resolution of 2.5 ns |
| Pulser - UT Channel Voltage |
95 V, 175 V, and 340 V |
| Pulser - UT Channel Voltage |
Adjustable from 30 ns to 1,000 ns; resolution of 2.5 ns |
| Receiver - PA Channel Gain |
0 dB to 80 dB, maximum input signal 550 mVp-p (full-screen height) |
| Receiver - PA Channel Input Impedence |
60 Ω (pulse-echo mode); 150 Ω (pitch- catch mode) |
| Receiver - PA Channel System Bandwidth |
0.6 MHz to 18 MHz (–3 dB) |
| Receiver - UT Channel Gain |
0 dB to 120 dB maximum input signal 34.5 Vp-p (full-screen height) |
| Receiver - UT Channel Input Impedence |
60 Ω (pulse-echo mode); 50 Ω (pulse-receive mode) |
| Receiver - UT Channel System Bandwidth |
0.25 MHz to 28 MHz (–3 dB) |
| General Specifications |
| Overall dimensions (W x H x D) |
267 mm × 208 mm × 94 mm (10.5 in. × 8.2 in. × 3.7 in.) |
| Weight |
3.4 kg (7.5 lb) with battery |
| Storage devices |
SDHC card or most standard USB storage devices |
| Data file size |
300 MB |
| VO Ports - USB ports |
2 USB ports, compliant with USB 2.0 specifications |
| VO Ports - Audio alarm |
Yes |
| VO Ports - Video output |
Video out (SVGA) |
| VO Lines - Encoder |
2-axis encoder line (quadrature, up, down, or clock/direction) |
| VO Lines - Digital input |
4 digital TTL inputs, 5 V |
| VO Lines - Digital output |
3 digital outputs TTL, 5 V, 15 mA maximum per output |
| VO Lines - Acquisition on/off switch |
Yes, through configuration of a digital input |
| VO Lines - Power output line |
5 V, 500 mA power output line (short-circuit protected) |
| VO Lines - Pace input |
5 V TTL pace input |
| Display size |
21.3 cm (8.4 in.) (diagonal) |
| Resolution |
800 pixels x 600 pixels |
| Operating temperature range |
-10 °C to 45 °C (14 ºF to 113 ºF) |
