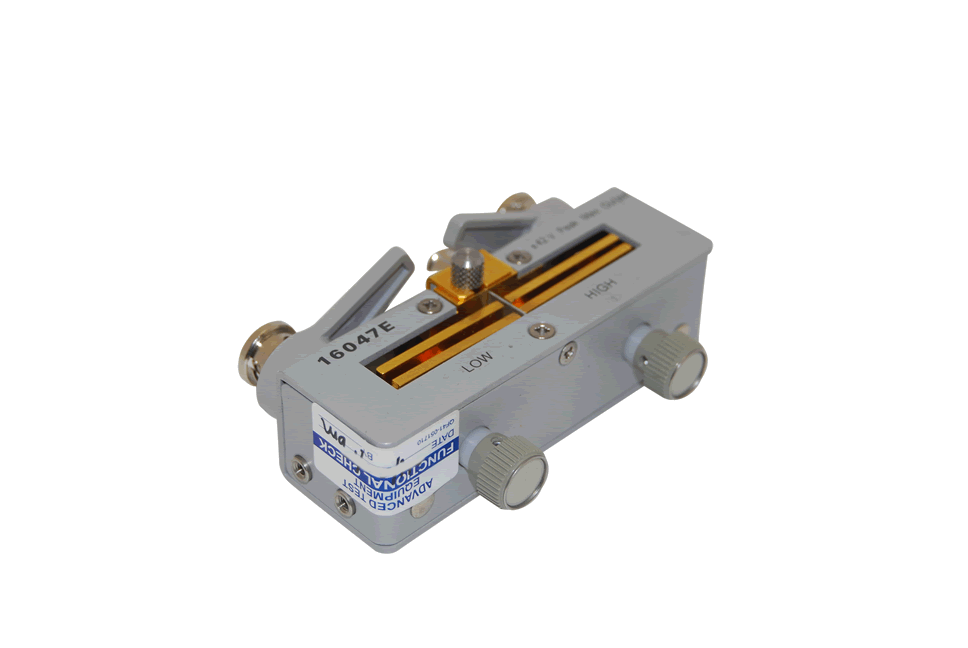

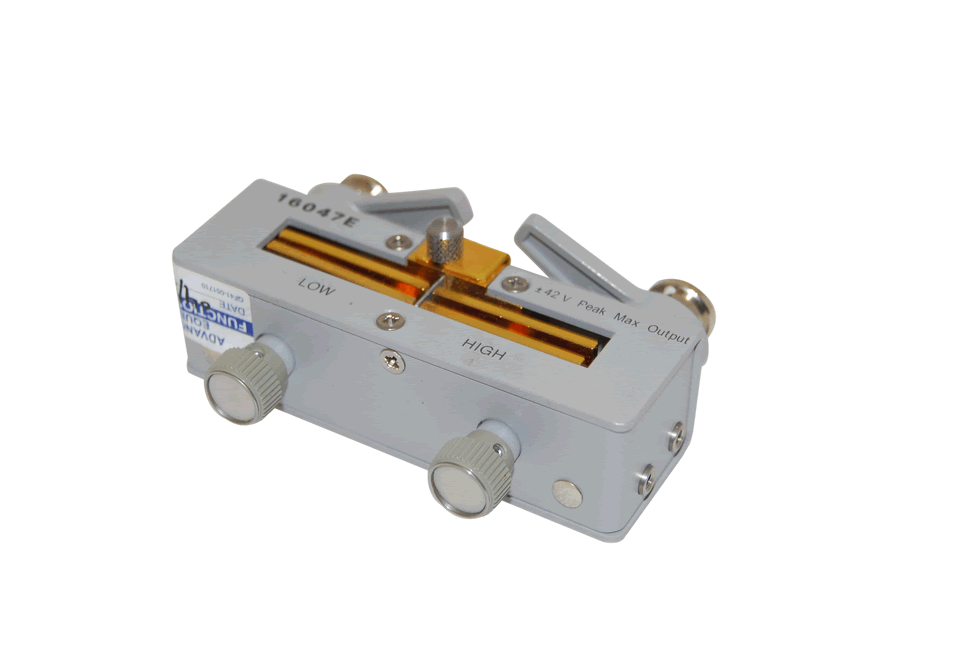

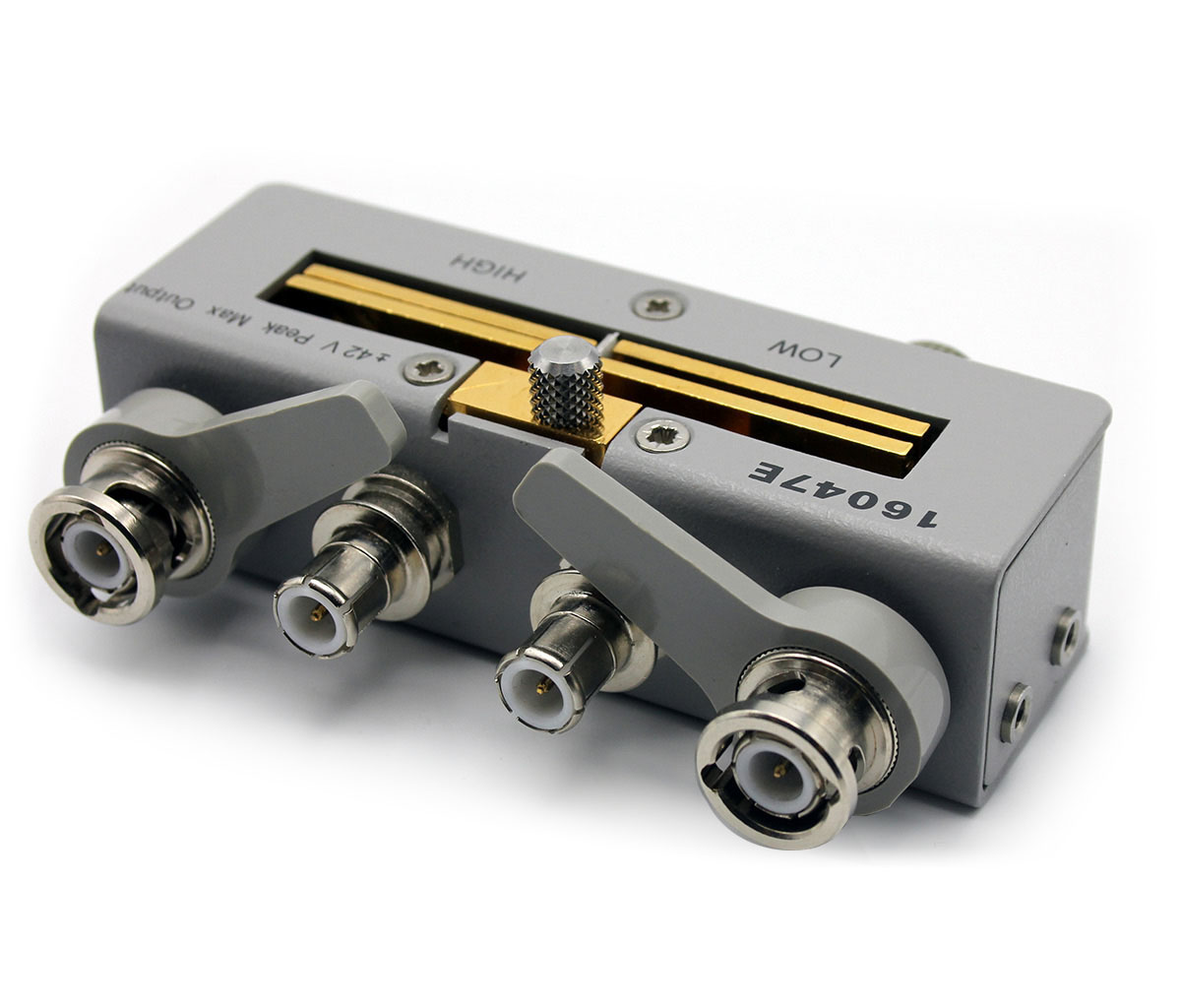

Keysight 16047E Test Fixture, Frequency to 100MHz
The Keysight 16047E is designed for impedance evaluation of lead type devices up to 110 MHz. A guard terminal is available for three terminal devices and a shorting plate comes secured on this fixure. The Keysight 16047E Test Fixture was previously manufactured as the Agilent 16047E Test Fixture.
| Applications | LCR meters and Impedance Analyzers with four-terminals | |
| Applicable DUT Type | Lead components | |
| Frequency | ≤ 110MHz | |
| DC Bias | ± 42V peak max. (AC+DC) | |
| Operating Environment | Temp. | -20°C to +75°C |
| Humidity | 15% to 95%RH( @ wet bulb temp. < 40°C) | |
| Non Operating Environment. | Temp. | -40°C to +70°C |
| Humidity | ≤ 90 % RH ( @ wet bulb temp. <65°C) | |
| Dimension | Approximately 135 (W) × 40 (H) × 65 (D) mm | |
| Weight | Approximately 200g | |
