NoiseKen INS-4040 Impulse Noise Simulator

The NoiseKen INS-4040 Impulse Noise Simulator is a further development of the INS series simulators designed for greater ease of use, durability and reliability with new technology specifically applied to this new product. The most significant addition is automatic ramp operation in output voltage, pulse repetition period and phase angle placement.

Complementary to the IEC61000-4-4, EFT/Burst test the NoiseKen INS-4040 with unique valuable features and capabilities, most of which are not met by Electrical Fast Transient/Burst generators, greatly helps to enhance your test program to ensure your products are really immune from real world phenomena.

Product Info Related Products

Output voltage:	0.01~4.00kV ±10% with 50 ohm load, 10 V step
Polarity:	Positive or negative
Square Wave
Pulse Width:	50ns, 100ns, 200ns, 250ns, 400ns and any combination thereof, maximum width 1μs , or 10ns±3ns (the shortest connection)
Rise Time:	< 1 ns
Output Impedance:	50Ω system (53.5Ω)
Pulse Repetition Mode
Phase:	50 or 60Hz, Injection phase angle 0~359°(Synchronized with L1, L2 of power supply to be injected, or external terminal.)
Variable:	16ms ~ 999ms ±10%, 1ms step
Ext:	>16ms TTL/Open collector negative logic
1 Shot:	By trigger switch, a single pulse injection to any phase angle of the power line

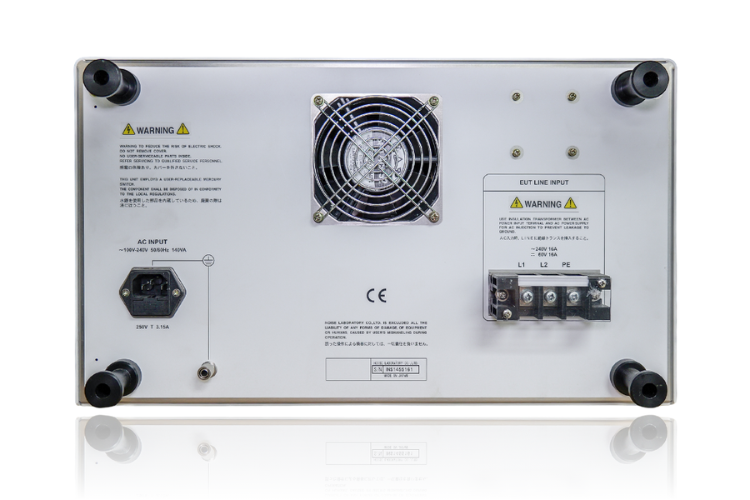

Power Capacity of EUT:	AC240V Single phase, DC60V, 16A
Power Supply:	100 ~ 240 VAC 50/60 Hz
Power Consumption:	140VA
Operating Temperature and Humidity:	15 ~ 35°C 25 ~ 75% (No dewing shall occur.)

Generates pulses of less than 1ns rise time up to 4kV
1 SHOT: By trigger switch, a single pulse injection to any phase angle of the power line
Power capacity of EUT: AC240V Single phase, DC60V, 16A
Automatic ramp operation for output voltage, phase angle and repetition period
Floating output
Coupling mode selection by plugging the supplied coaxial connector to the selected port
Easily changeable mercury relay
Built-in 50-ohm terminator
Up to 5 test settings can be stored in the memory
Easily changeable outlet panel

SKU: NOIS-INS-4040
