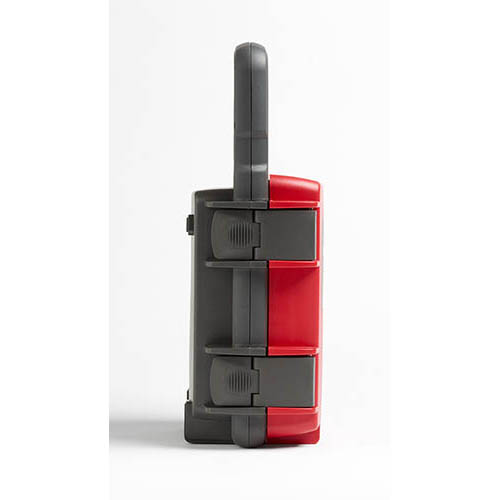

Amprobe UAT-600-T Underground Utilities Locator Transmitter

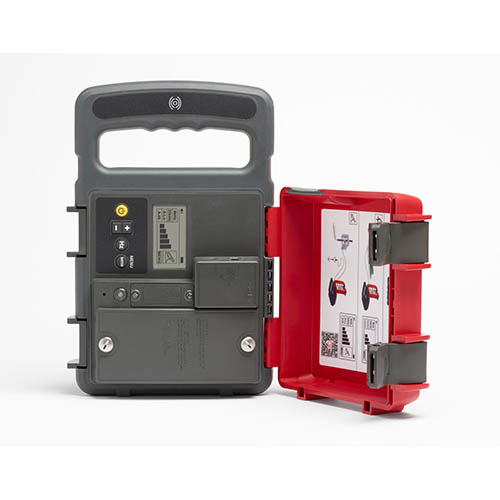

The Amprobe UAT-600-T Underground Utilities Locator is a transmitter that makes finding buried utilities easier and more efficient. The UAT-600-T transmitter works at operating frequencies of 8 kHz and 33 kHz, automatically choosing the best locating function depending on which accessory is connected to the device. The equipment also has an LCD display and a beeping audio indicator so the user can better track the signal and frequencies.

The Amprobe UAT-600-T Underground Utilities Locator transmitter allows for three active modes when using the locator kit: induction, clamp, and direct connection with test leads. With the induction mode, the transmitter uses an internal antenna to give off a signal and find cables that are completely buried. The clamp is a safe solution to find underground cables that don't allow for electrical contact. Through a direct connection with test leads, the UAT-600-T transmitter offers the most reliable method in finding underground utilities.

The Amprobe UAT-600-R Underground Utilities Locator Reciever is also available for rent to be used with the UAT-600-T transmitter.

Product Info

General Specifications
Transmitting Mode Power Output	Max. 3 Watts
Output voltage	Max. 50 V rms
Output Current	Max. 250 mA rms, constant current in 5 steps
Mains Voltage Measurement	0 V to 600 V, 50 Hz to 60 Hz Resolution: 1 V Accuracy:: ±10%
Resistance Measurement	0 Ω to 999 kΩ Range: 0 Ω to 999 Ω (resolution: 5 Ω) Range: 1 kΩ to 999 kΩ (resolution: 1 kΩ) Accuracy: ± 10%

Operating voltage/current from 0 to 600 V
Fast beeping audio indicates when the better signal is applied
Allows for three active modes when using the transmitter: Induction, Direct connection with test leads, and Clamp
Works in temperatures ranging from -20 °C to 50 °C
16 hours of battery life
