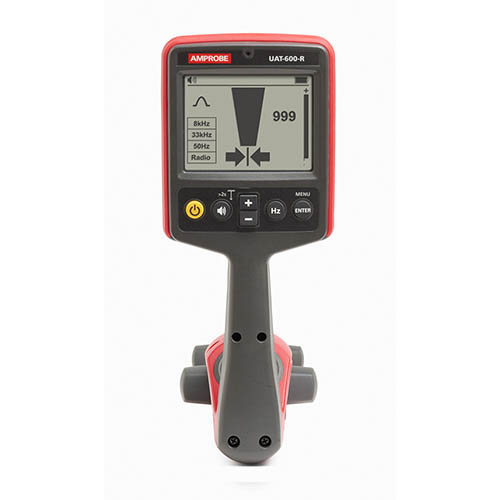

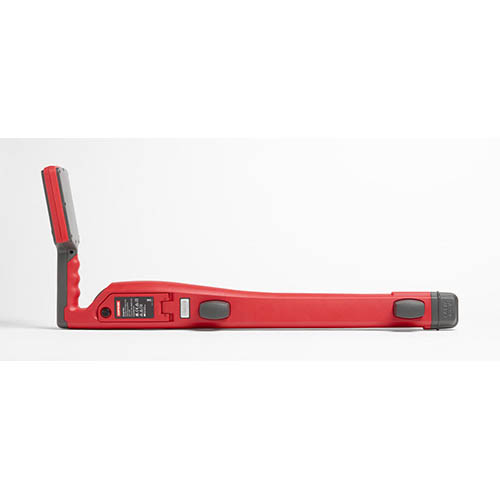

Amprobe UAT-600-R
The Amprobe UAT-600-R Underground Utilities Locator is a receiver that detects buried utilities up to 20 feet deep. It operates in two passive modes, using a 50/60 Hz frequency to trace current-carrying underground lines without a transmitter, and employing radiofrequency waves to locate utilities. Active tracing is available at 33 kHz and 8 kHz frequencies. Findings are displayed on a large, backlit LCD screen, ensuring visibility both day and night.
The Amprobe UAT-600-T Underground Utilities Locator Transmitter is also available for rent to be used with the UAT-600-R receiver.
| General Specifications | |
|---|---|
| Sensitivity at 1 m (Typical) |
|
| Display | 4.3 in, 320 x 240 BW outdoor LCD display with auto backlight |
| Update Rate | Instantaneous |
| Power Supply | (6) 1.5 V AA alkaline batteries |
- Operating voltage/current from 0 to 600 V
- Peak and Null locating modes
- Locate energized 50/60 Hz cables carrying current
- Identify the location of all metallic utilities: pipes*, energized and de-energized cables
- Trace individual pipes* or cables (energized or de-energized)*Tracing of non-metallic pipes and conduits is possible after inserting metal fish tape or cable
- Passive power mode (50/60 Hz) - tracing energized lines conducting current (no Transmitter necessary)
- Passive radio mode (RF) - using surrounding radio waves to trace underground utilities (no Transmitter necessary)
- CAT IV 600 V
- IEC 61010-1
- IEC 61010-2-033
- CSA/UL 61010-1
- CSA/UL 61010-2-033
- IP54
