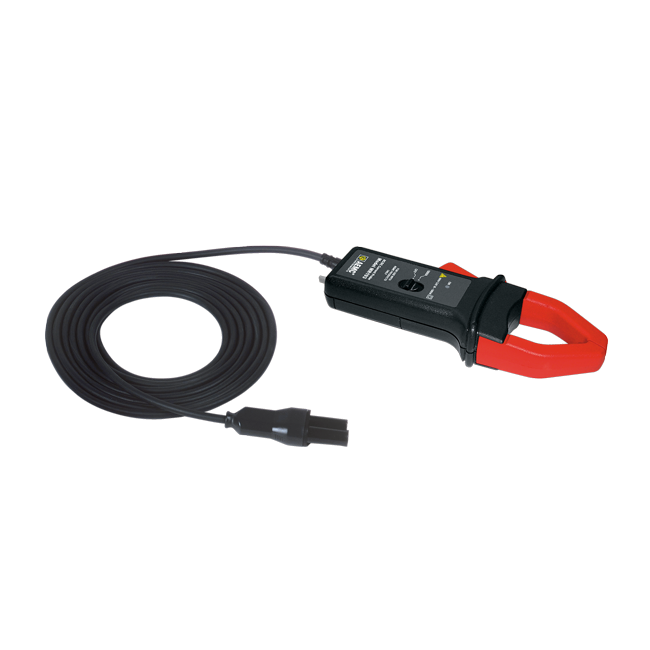

AEMC MR193 Current Probe
The AEMC AC/DC Current Probe Model MR193 features measurement ranges of 1 to 1000AAC and 1 to 1300ADC. The probe includes a 10' (3m) lead terminated by a proprietary CA connector. The Model MR193 is designed for use with PowerPad II/III Power Quality Analyzers Models 3945/3945-B, 8220, 8230, 8333, 8335, and 8336; as well as Power & Energy Loggers Model PEL instruments.
| Clamping Diameter | One 1.6”(42mm) or two 0.98”(25mm), or two bus bars 1.96 x 0.19”(50 x 5mm) |
| Current Range | 1000AAC / 1300ADC |
| Measurement Range | 1 to 1000AAC & 1 to 1300ADC |
| Lead Length | 10 ft (3m) |
| Output Termination | Proprietary connector |
