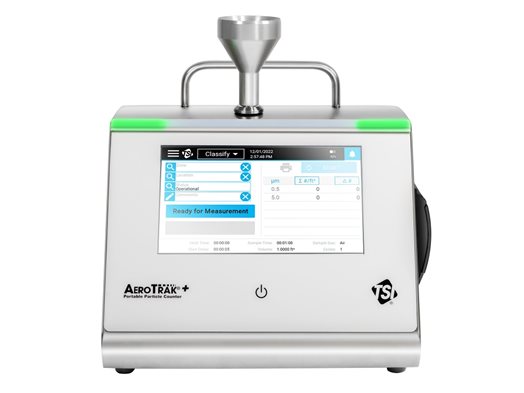

TSI AeroTrak A100-50 Portable Airborne Particle Counter
The TSI AeroTrak A100-50 Portable Airborne Particle Counter is a user-friendly instrument with a flow rate of 3.5 CFM (100 LPM). The A100-50 model has channel size options of 0.5, 0.7, 1.0, 3.0, 5.0, and 10.0 µm. Part of the TSI AeroTrak A100 Series, the A100-50 is a replacement for the TSI AeroTrak 9500 Portable Particle Counter.
| Model | A100-50 |
| Flow Rate | 3.5 CFM (100 LPM) |
| Channel Size Options | 0.5 µm to 10 µm 6 user-selectable channels |
| Size Resolution | <15% @ 0.5 μm (per ISO 21501-4) |
| Counting Efficiency | 50% at 0.5 µm 100% for particles >0.75 µm |
| Data Storage | 250,000 sample records 15 minutes of 1 second data with FMS |
| Printer | Built-in thermal printer |
| Languages | English, French, German, Italian, Polish, Portuguese, Spanish, Chinese (Simplified), Japanese, & Korean |
| Dimensions (HxWxD) | 8.9 in x 9.8 in x 8.7 in (22.6 cm x 25 cm x 22.2 cm) |
| Weight | 12.8 lb. (5.8 kg) with battery 11.8 lb. (5.4 kg) without battery |
- One instrument does it all- classify, monitor, filter scan, gas testing, and root-cause analysis
- Highly visible status conditions - LED light bar viewable 20 meters / 360°
- Access user controls for GMP compliance
- Sample the correct volume of gas with built in gas correction factors
- Automated ISO 14644-1 and GMP (EU GMP and China GMP) reporting and instrument workflow with included TrakPro™ Lite Secure Software
- Filter test and investigate mode (both audible and visual)
- ISO 21501-4 calibration compliance
- Fit for purpose - easy to clean, stainless steel housing
