Valhalla 2575A Precision AC/DC Active Current Shunt
The Valhalla 2575A Precision AC/DC Active Current Shunt is a dual-purpose instrument for meeting a variety of calibration requirements. This model has a frequency response of ±0.05% to 10 kHz, an input resistance of >1010 Ω, and an output resistance of <0.1 Ω. With a fan-cooled shunt, built-in amplifier, and more, the Valhalla 2575A allows for in-depth and precise calibration.
| Model | 2575A |
| Frequency Response | ±0.05% to 10 kHz |
| Ranges | 2 mA, 20 mA, 200 mA, 2 A, 20 A, 100 A |
| Input Resistance | >1010 Ω |
| Output Resistance | <0.1 Ω |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature Range | -30°C to 70°C (-22°F to 158°F) |
| Dimensions (W x H x D) | 17 x 3.5 x 10 in (43 x 9 x 25 cm) |
| Weight | 8 lb. (3.6 kg) |
- Six independent selectable current ranges

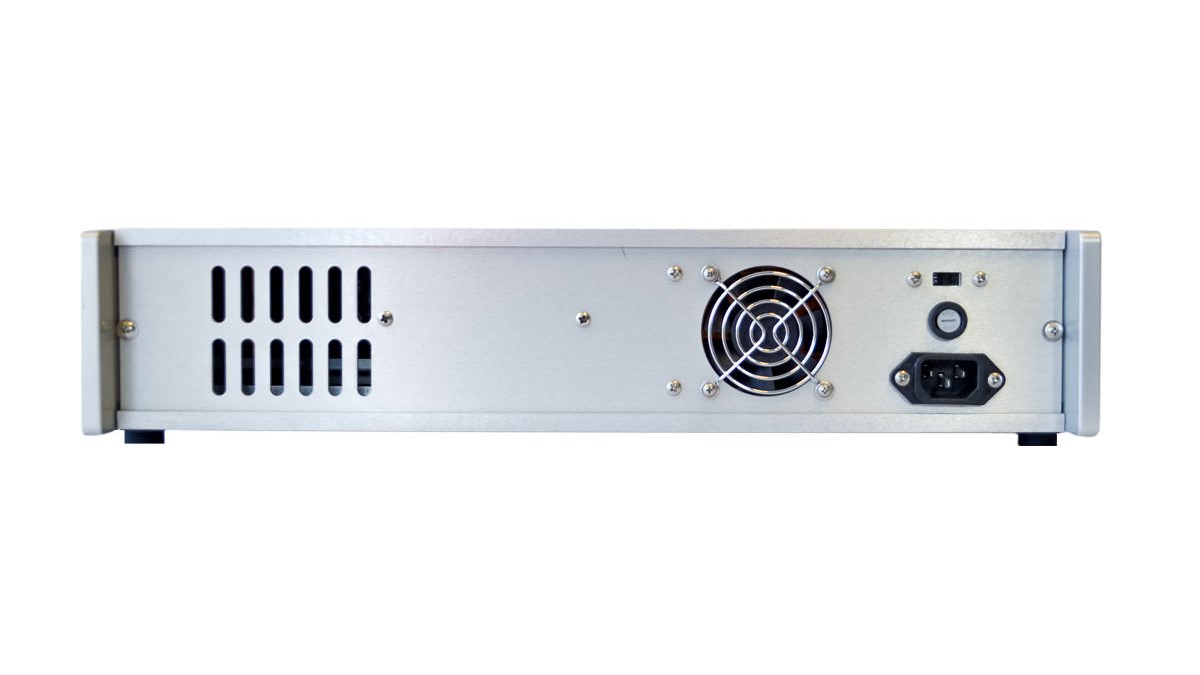

- Fan-cooled shunt for thermal stability
- N.I.S.T traceable calibration
- Compatible with current transformers
- AC/DC current calibrator
- Lab standard resistance bank
- Built–in chopper stabilizer amplifier
SKU: VALH-2575A
