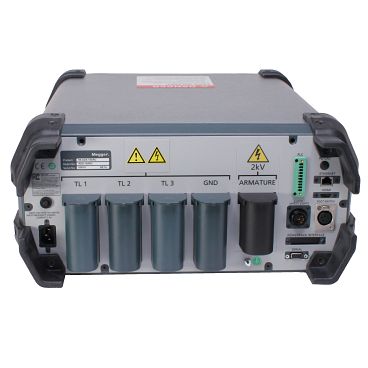

Megger ADX Automated Static Motor Analyzer
The Megger ADX Automated Static Motor Analyzer is an automated diagnostic test instrument with a high-definition interface, innovative applications, and more. With a processor speed of 1.0 GHz (Quad core) and XGA 1024 x 768 resolution, the ADX is the ideal device for efficient and accurate testing. The Megger ADX Automated Static Motor Analyzer allows operators to easily store data, complete analysis, and generate reports.
| Dimensions | ADX15: 18 x 23 x 8.5 in (457 x 584 x 216 mm) ADX15A: 18 x 23 x 8.5 in (457 x 584 x 216 mm) |
| Weight | ADX15: 46.3 lb. (21 kg) ADX15A: 50.7 lb. (23 kg) |
| Processor speed | 1.0 GHz (Quad core) |
| Resolution | XGA 1024 x 768 |
| Surge test short circuit current | 700 A (typical) |
| Operating temperature | 5 - 40°C (41 - 104°F) |
| Storage temperature | 0 - 60°C (32 - 140°F) |
| Operating altitude | ≤3,000 m (9,842 ft) |
| User interface | Capacitive touch screen Mouse Keyboard Stylus |
| Display | 10.4-in touch screen |
| Languages | English French (Europe) Spanish (Europe and Latin America) Portuguese (Europe and Brazil) German Czech Russian Chinese (Traditional and Simplified) |
| IP Rating | IP40 |

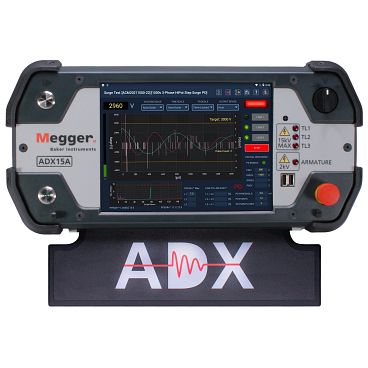

- High-definition graphical user interface displays surge test waveforms
- Displays DC HiPot results
- Displays hundreds of coil waveforms for quick analysis
- Stores reference waveforms for comparison coil testing
- Secure cloud-based data storage
- Ability to create and edit assets and test configurations remotely through PowerDB Dashboard
- Internal battery backup secures data due to unexpected power loss.
- Megger DLRO Connect System
- Remote Test Status Indication Lights and Remote E-Stop
- Foot Switch
- Surge Test Probes and Clips
- ADX Armature Surge Clips
- ADX Armature Surge accessory
- Data Storage
- Analysis & Management
- Report Generation
- IEC 61326-1 Ed. 2.0 2012-07
- FCC 47CFR: Part 15 Subpart B: 2020
- ICES-003 Issue 7, October 2020
- IEC 61010-031:2015
- IEC 61010-2-034:2017
- IEC 62133-2:2017
- CISPR 11:2009 +A1:2010, Class A
- IEC 61000-3-2:2014
- IEC 61000-3-3:2013
- IEC 61000-4-2:2009
- IEC 61000-4-3:2010
- IEC 61000-4-4:2012
- IEC 61000-4-5:2006
- IEC 61000-4-8:2010
- IEC 61000-4-11:2004
