Megger DLRO200-115 | 200 Amp

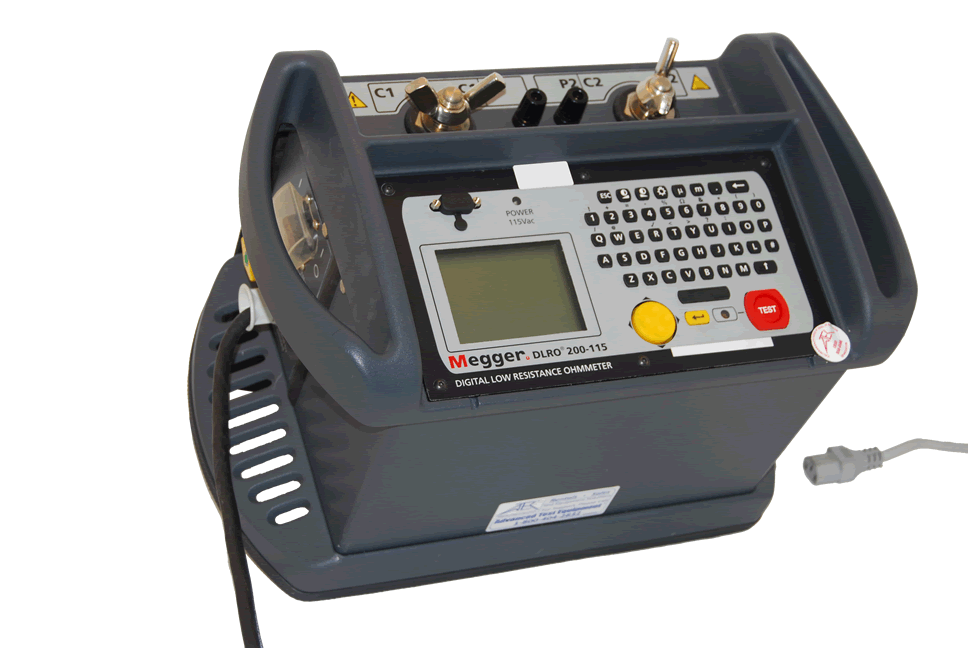

The Megger DLRO200-115 High Current Digital Low Resistance Ohmmeter, 200 Amp is a ductor designed to check and measure contact resistance in high voltage circuit breakers, disconnecting switches (isolators), busbar joints, or for any low resistance measurement. This DLRO test set accurately measures resistances ranging from 0.1µ ohms to 1 ohms, at high currents. The Megger DLRO200-115 is a versatile ductor that can provide test currents from 10 amps up to 200 amps, subject to the load resistance and supply voltage. For those applications that demand a smooth DC current, the DLRO200-115 ductor has extra filtering on the output to reduce mains frequency ripple and can drive 200 amps through a total current loop resistance of 11 milli ohms. The filtered output of the DLRO200-115 also eliminates magnetic transients that could inductively trip a breaker’s control (bus differential relay), if left in the test circuit.

The DLRO200-115 operates in one of three modes:

Continuous mode: for users who want to monitor a resistance over a period of time. The DLRO200-115 will pass a current continuously, and measure the load resistance at 2 second intervals, until the test button is pressed to stop the test or the test circuit is interrupted.
Normal mode: ramps the test current to the desired level, holds for 2 seconds and then ramp down. The process is about 10 seconds.
Auto mode: allows measuring individual joints in a busbar. When you move to the next joint the system automatically detects the completed circuit and carries out the next test until all the joints have been tested.

Product Info

Range	0.1 µΩ to 999.9 mΩ (Subject to supply voltage and leads used)
Accuracy	Voltage: ±0.5% ± 0.1 mV Current: ±0.5% ± 0.1 A Resistance: Better than 1% from 100 µΩ to 100 mΩ
Current Lead Resistance	2 x 16 ft (5 m) 25 mm2 current leads 8 mΩ 2 x 16 ft (5 m) 50 mm2 current leads 4 mΩ 2 x 33 ft (10 m) 70 mm2 current leads 5.4 mΩ 2 x 49 ft (15 m) 95 mm2 current leads 6 mΩ
Maximum continuous test time	More than 10 minutes at 200 A @ 68° F (20º C) ambient.
Power Supply for full output (additional smoothed)	100 to 130 V 50/60 HZ with a load less than 11 mΩ including current leads
Test Modes	Manual, Auto, Continuous.
Storage Capacity	300 result sets and memo, battery backed for 10 years. Memo field: 160 characters max.
Dimensions	16.4 x 9.84 x 10.63 in. (410 x 250 x 270 mm)
Weight	31.97 lbs. (14.5 kg) excluding test leads
