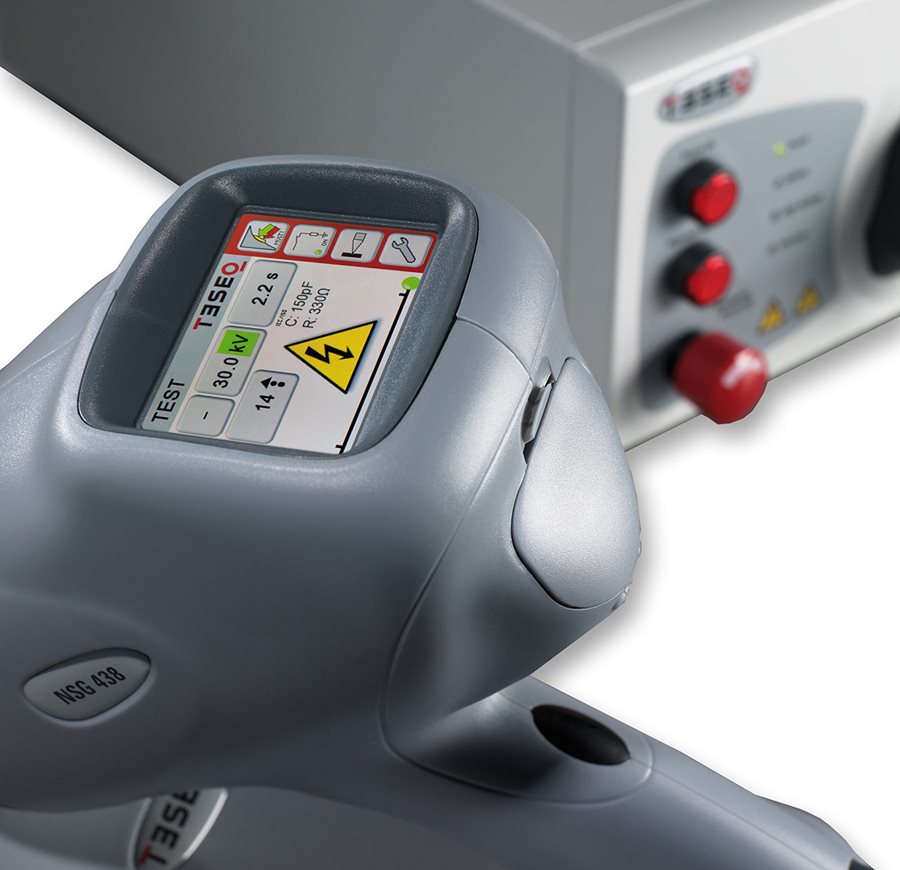

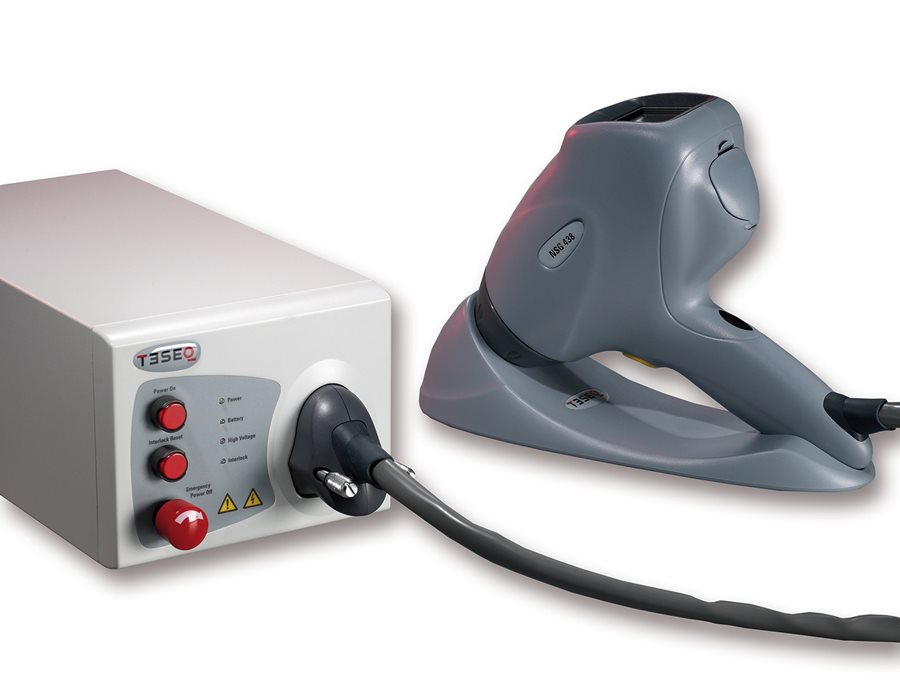

Teseq NSG 438 ESD Gun | 30 kV

SAE J551 specifies measurement procedures and performance levels for magnetic and electric field emissions and conducted power mains emissions over the frequency range of 150 kHz to 30 MHz for vehicles incorporating electric propulsion systems, e.g., battery, hybrid, or plug-in hybrid electric vehicles. Conducted emissions measurements for SAE J551 apply only to battery-charging systems which utilize a switching frequency above 9 kHz, are mounted on the vehicle, and whose power is transferred by metallic conductors. Conducted emission requirements apply only during charging the batteries from AC power lines. Conducted and radiated emissions measurements of battery-charging systems that use an induction power coupling device are not covered by the SAE J551 document. The measurement of electromagnetic disturbances for frequencies from 30 MHz to 100 MHz is covered in CISPR 12.

This test determines whether the EUT can operate as specified during and after being subjected to an electrostatic air discharge event. Both the test procedure and test generator used are similar to most other international ESD standards, except that the EUT is bonded to the ground plane and only air discharge is specified. Test points are chosen based on their accessibility to personnel, with 10 positive and 10 negative polarity discharges at 15 kV applied to each one. Equipment Categories There is only one category (A), with a test level of 15 kV. RTCA/DO-160 provides standard procedures and environmental test criteria for testing airborne equipment for the entire spectrum of aircraft from light, general aviation aircraft and helicopters through the "jumbo jets" and SST categories of aircraft. The tests outlined in this standard are performed to meet FAA and international regulations for electrical and electronic equipment installed on commercial aircraft. RTCA/DO-160 G is the current version of this standard. Coordinated with EUROCAE, RTCA/DO-160G and EUROCAE/ED-14G are identically worded. DO-160G is recognized by the International Organization for Standardization (ISO) as de facto international standard ISO-7137.   Changes between DO-160 D, E, F, and G From C to D From D to E From E to F From F to G A new section was added to address device level susceptibility issues for ESD. No significant changes were made. No significant changes were made, except correcting typographical errors in the figures.   Added note that ESD connection point is not applicable to connector pins. Added expansion of type and of the list of test points to be considered. Address case of no discharge.   More On ESD Testing     Recommended Bundle For All 30kV Regulated

MIL-STD-1576 establishes the general requirements and test methods for the design and development of electro-explosive subsystems to preclude hazards from unintentional initiation and from failure to fire. MIL-STD-1576 requirements apply to all subsystems utilizing electrically initiated explosive or pyrotechnic components. MIL-STD-1576 applies to all space vehicle systems (e.g., launch vehicles, upper stages, boosters, payloads, and related systems). Download Standard

MIL-STD-461G CS118 is the electrostatic discharge testing procedure for conducted susceptibility testing as specified by MIL-STD-461G. The ESD levels, test setup and test equipment of MIL-STD-461G CS118 are similar to IEC 61000-4-2 and RTCA/DO-160. To see the full version of MIL-STD-461G CS118, view MIL-STD-461G.   Advanced Test Equipment Rentals calibrates ESD guns in our lab Recommended Bundle For All 30kV Regulated Applications:  +   +   =  Teseq NSG 438 ESD Gun Simulator System   Teseq INA Custom Discharge Network   Electro-Tech 949-2 Verification Kit   ESD Simulator Kit Rent Bundle   CS118 Applicability This requirement applies to electrical, electronic, and electromechanical subsystems and equipment that have a man-machine interface. It does not apply to equipment that interfaces with or controls ordnance items.   CS118 Limits The EUT shall not exhibit any malfunction, degradation of performance, or deviation from specified indications, beyond the tolerances indicated in the individual equipment or subsystem specification when subjected to the values shown Table CS118-1. Contact up to 8kV is the required method. Air discharges shall be required only if specified by the procuring activity.   Purpose This test procedure is used to verify the ability of the EUT to withstand personnel borne electrostatic discharge (ESD) in a powered-up configuration:   ESD Simulator Gun LISN or other Isolation Transformer GP: Ground Reference Plane (Aluminum or Sheet Metal) HCP: Horizontal Plane (Aluminum or Sheet Metal) VCP: Vertical Coupling Plane (Aluminum or Sheet Metal) 470 kOhm Resistor Cables to mount from HCP/VCP to GP Insulation Material (Polyvinyl Chloride preferred material) Get a quick overview with this demo

MIL-STD-464 details the US military’s requirements for electromagnetic environmental effects on the interfaces of sea, space, ground and airborne systems. To safeguard the operation and performance of these systems, each should be compatible with equipment within the system and related subsystems. MIL-STD-464 primarily consists of design requirements and verification methods necessary to prevent or resolve these electromagnetic compatibility issues. Throughout the standard, Data Item Descriptions (DID) are referenced to determine problem areas early on in system design, minimize risks going forward and document testing results. The current version of MIL-STD-464 is MIL-STD-464C. The following are brief summaries of the standard's requirements: 5.1 Margins Margins should be offered based on system performance requirements, tolerances and uncertainties.   5.2 Intra-system electromagnetic compatibility (EMC) The system should be electromagnetically compatible with its own components.   5.3 External RF EME The system should be electromagnetically compatible with a specified external electromagnetic environment to the extent that operational performance standards are met.   5.4 High-power microwave (HPM) sources The system should meet its own requirements after exposure to narrowband and wideband HPM environments.   5.5 Lightning The system should possess the appropriate resistance to both direct and indirect lightning effects.   5.6 Electromagnetic pulse (EMP) The system should meet performance standards after exposure to the EMP environment.   5.7 Subsystems and equipment electromagnetic interference (EMI) Individual components, equipment and subsystems must meet radiated immunity, radiated emissions, conducted immunity and conducted emissions test requirements.   5.8 Electrostatic charge control The system should be able to both control and disperse electrostatic discharge (ESD) triggered

MIL-STD-750 defines testing methods for the environmental, physical and electrical testing of semiconductor devices utilized in military and aerospace electronic systems. The methods and procedures throughout the standard cover basic environmental, physical and electrical tests to assess resistance to deleterious effects of natural elements and conditions surrounding military and space operations. For this standard, the term "devices" includes such items as transistors, diodes, voltage regulators, rectifiers, tunnel diodes, and other related parts. This standard is intended to apply only to semiconductor devices. The test methods and procedures described in the various parts of this multipart test method standard have been prepared to serve several purposes: a. To specify suitable conditions obtainable in the laboratory that give test results equivalent to the actual service conditions existing in the field and to obtain reproducibility of the results of tests. The test methods described by this standard are not to be interpreted as an exact and conclusive representation of actual service operation in any one geographic location since it is known that the only true test for operation in a specific location is an actual service test at that point. b. To describe, in a series of standards, all of the test methods of a similar character which now appear in the various joint-services semiconductor device specifications so that these test methods may be kept uniform and thus result in conservation of equipment, man-hours, and testing facilities. In achieving this objective, it is necessary to make each of the general test methods adaptable to a broad range of devices. c. The test methods described by this standard for environmental, physical, and electrical testing of semiconductor devices shall also apply, when applicable, to parts not covered by an approved military sheet-form standard, specification sheet, or drawing. Download Standard

MIL-STD-883 establishes uniform methods, controls, and procedures for testing microelectronic devices suitable for use within Military and Aerospace electronic systems including basic environmental tests to determine resistance to deleterious effects of natural elements and conditions surrounding military and space operations; mechanical and electrical tests; workmanship and training procedures; and such other controls and constraints as have been deemed necessary to ensure a uniform level of quality and reliability suitable to the intended applications of those devices. For the purpose of this standard, the term "devices" includes such items as monolithic, multichip, film and hybrid microcircuits, microcircuit arrays, and the elements from which the circuits and arrays are formed. MIL-STD-883 is intended to apply only to microelectronic devices. The test methods, controls, and procedures described in MIL-STD-883 have been prepared to serve several purposes: a. To specify suitable conditions obtainable in the laboratory and at the device level which give test results equivalent to the actual service conditions existing in the field, and to obtain reproducibility of the results of tests. The tests described herein are not to be interpreted as an exact and conclusive representation of actual service operation in any one geographic or outer space location. This is because it is known that the only true test for operation in a specific application and location is an actual service test under the same conditions. b. To describe in one standard all of the test methods of a similar character which now appear in the various joint-services and NASA microelectronic device specifications, so that these methods may be kept uniform and thus result in conservation of equipment, many hours, and testing facilities. In achieving this objective, it is necessary to make each of the general tests adaptable to a broad range of devices. c. To provide for a level

ISO 13766-1:2018 provides test methods and acceptance criteria for the evaluation of the electromagnetic compatibility (EMC) of earth-moving machinery, and the following building construction machinery as defined in ISO/TR 12693:210: -drilling and foundation equipment; - equipment used for the preparation, conveyance and compaction of concrete, mortar, and processing reinforcement;  -road construction and maintenance machinery and equipment. ISO 13766-1:2018 deals with general EMC requirements under typical electromagnetic environmental conditions and functional safety. Electrical/electronic subassemblies (ESA) and separate ESA intended to be fitted to the machinery are also dealt with. The following electromagnetic disturbance phenomena are evaluated. broadband and narrowband electromagnetic interference electromagnetic field immunity electrostatic discharge conducted transients The machinery can have AC, DC, or a combination of both as the internal electrical power supply system. ISO 13766-1:2018 is not applicable to machines that are designed to be supplied by the external mains network or to phenomena caused by military applications.

ISO 14982 specifies test methods and acceptance criteria for evaluating the electromagnetic compatibility of tractors and other mobile agricultural machinery, forest machinery, landscaping, and gardening machinery as supplied by the machine manufacturer. It applies to machines and electrical/electronic sub-assemblies (ESA's) which are manufactured after the date of publication of this International Standard. Electrical components or subassemblies intended for fitting in machines are also within the scope of this standard, except regarding immunity for those parts whose functions are not involved in the direct control and modification of the state of the functions of the machine. For the purposes of ISO 14982, the following definitions apply (selected definitions follow) Electromagnetic compatibility is defined as the ability of a machine or components or a separate technical unit to function satisfactorily in its electromagnetic environment without introducing intolerable electromagnetic disturbances to anything in that environment.   Electromagnetic disturbance: any electromagnetic phenomenon which may degrade the performance of a machine or component or separate technical unity. Electromagnetic immunity: the ability of a machine or component or separate technical unit to perform in the presence of specified electromagnetic disturbances without degradation of performance. Electromagnetic environment: the totality of electromagnetic phenomena existing at a given location. The requirements of ISO 14982 shall be met by a machine operating in accordance with its final purpose. According to the choice of the machine manufacturer, the following alternatives are possible to demonstrate conformity with this International Standard.   The requirements of this International Standard are deemed to be fulfilled for a complete machine when the requirements identified in clauses 5 and 6, as applicable, are fulfilled. If the machine

ANSI C63.16 elucidates explanations, best practices, and guidance for avoiding the pitfalls associated with electrostatic discharge (ESD) testing to IEC and other international standards. ESD standards are provided and should be considered a supplement to these standards, rather than a replacement. Unique ESD test procedures related to connecting charged peripherals to equipment in use are also included. ANSI C63.16 Foreword This standard for performing electrostatic discharge (ESD) testing incorporates the latest research in ESD waveform characterization and strives to ensure product quality through proper operation in actual equipment installations. The discharge source is based on the hand/metal model: discharges from a human with an intervening metal object between the hand and point of contact. The modes of contact discharge and air discharge are specified, as well as direct (on the product) and indirect (near the product) discharge points. One of the primary goals of this standard will be to address the deficiencies in existing ESD standards, including IEC 61000-4-2. Existing ESD standards were written based on the state of the art in measurement technology and the industry’s understanding of the ESD phenomena at the time, and they have done much to improve the immunity of electronic devices to ESD.  The variation of human-metal ESD is large over typical voltage arc length ranges and differs from furniture ESD or human-skin ESD. The problem of finding a waveform that provides a reasonable level of product protection is difficult and leads to a compromise. For example, a present requirement of IEC 61000-4-2 is a 0.7 to 1 ns rise time, which is slower than many actual ESD events. Faster rise times like 200 ps will cover more of the very often occurring low voltage ESDs and the fast-rising high voltage ESDs (usually in very dry air), but it may be too fast compared to many ESDs above 4 kV in the moderately humid air. With contact

CISPR 14-2 deals with the electromagnetic immunity of appliances and similar apparatus for household and similar purposes that use electricity, as well as electric toys and electric tools, the rated voltage of the apparatus being not more than 250 V for single-phase apparatus to be connected to phase and neutral, and 480 V for other apparatus. Apparatus may incorporate motors, heating elements or their combination may contain electric or electronic circuitry, and may be powered by the mains, by transformer, by batteries, or by any other electrical power source. Apparatus not intended for household use, but which nevertheless may require the immunity level, such as apparatus intended to be used by laymen in shops, in light industry, and on farms, are within the scope of this standard, as far as they are included in CISPR 14-1. In addition, the following are also included in the scope of this standard: Microwave ovens for domestic use and catering Cooking hobs and cooking ovens, heated by means of RF energy Single- and multiple-zone induction cooking appliances Appliances for personal care equipped with radiators in the range from UV to IR, inclusive (this includes visible light) Power supplies and battery chargers provided with or intended for apparatus within the scope of this standard For ESD tests on contacts of plugs and sockets the note ("The 4 kV contact discharge shall be applied to conductive accessible parts. Metallic contacts, such as in battery compartments or in socket outlets, are excluded from this requirement") saying that no test on contacts is necessary has been removed. The IEC 61000-4-2 includes a detailed description of how to deal with ESD on contacts and other surfaces. Also, discharge on HCP and VCP is required by the basic standard IEC 61000-4-2. Advanced Test Equipment Rentals provides a variety of equipment for performing electromagnetic compatibility tests. Check out related equipment here.

GM GMW3097 (General Specification for Electrical/Electronic Components and Subsystems, Electromagnetic Compatibility) specifies the EMC requirements for all automotive products when evaluated by specified test procedures. It refers to International EMC standards whenever possible, occasionally including internet test procedures when necessary. Validation testing in accordance with GM GMW3097 must be performed at a laboratory that has received recognition through the Automotive EMC Laboratory Recognition Program (AEMCLRP). For GM GMW3097, A minimum of two samples shall be tested. The supply voltage shall be 13.5 (+0.5/-1) V unless otherwise stated in the test plan. The DUT (Device Under Test) shall pass both the component level tests according to this specification and the vehicle level tests according to GMW3091. Component tests are not intended to take the place of vehicle tests. The exact correlation between component and vehicle test performance is dependent on component mounting location, harness length, routing, and grounding, as well as the antenna system. Component testing, however, permits components to be evaluated before actual vehicle availability. Before testing, any deviations from the requirements and/or test procedures shall have been agreed with the GM EMC Engineer responsible for approving the test plan. Such deviations shall be detailed in the approved test plan and on component drawings, test certificates, reports, etc. Note: All EMC test results that are intended for validation purposes must be accompanied by a GMW3103 EMC Test Plan (complete with an approval number supplied by the GM EMC Engineer or by the CEMENT database process). Note: Any EMC development test results that are provided to GM (e.g., test results that have been taken before the EMC test plan approval, or results of limited testing due to root cause analysis or Pre-DV evaluation work) must be marked “Development Data – Not For

FMC1278 CI 280 replaces EMC-CS-2009.1, both referring to ISO 10605 for the ESD testing portion. FMV1278 is applicable for all 12 and 124 volt DC electrical and electronic components/subsystems that are planned for use on 2020 Ford vehicle programs and beyond in addition to E/E component/subsystems whose commercial agreements are signed after July 1, 2015.  CI 280 Electrostatic Discharge is required in most components including all electronic modules (A, AS, AM, AX, AW), electric motors (EM), and other devices (D).  Differences from EMC-CS-2009.1: Concerning reporting, the laboratory may not use the terms pass or fail. They may only report Status I, II, or III. FMC will determine pass/fail based during their review of the formal test report.  Parametric testing no longer required immediately after testing. However, parametric testing is recommended after testing additional test samples.  ISO 10506 (2001) replaced by ISO 10605 (2008). Affects ESD simulator verification.  For handling tests, the DUT is placed on dielectric support vs a dissipative mat. 200 mm ground still required.  Figures updated to show that CAN wiring remains co-bundled with another wiring during powered ESD tests.  ESD stress levels now extended to +/= 15 kV for CAN circuits in the diagnostic connector.

Preview Standard   Buy Standard IEC 61000-4-2 is an international test standard that outlines electromagnetic immunity requirements for electronic equipment when exposed to electrostatic discharge (ESD) generated from a human body or metal objects. The standard assumes that the source is an electrified human body discharge and testing simulates the current waveform generated in those conditions. Level Test Voltage (Contact Discharge) Test Voltage (Air Discharge) 1 2 kV 2 kV 2 4 kV 4 kV 3 6 kV 8 kV 4 8 kV 15 kV     Recommended Bundle For All 30 kV Regulated Applications:  +   +   =  Haefely ONYX 30 KV ESD Simulator   Brandenburg 149-01 High Voltage Meter   LeCroy WavePro 960 Digital Oscilloscope   ESD Simulator Testing System Rent Bundle   Discharge Current Waveform The ESD discharge simulator (ESD Gun) must meet the following specifications: Energy Accumulation Capacity: 150 pF (typical) Discharge Resistance: 330 Ω (typical) Charging Resistance: 50 MΩ - 100 MΩ Output Voltage: 8 kV for contact discharge, 15 kV for air discharge Tolerance: ±5% Polarity: Positive and Negative Hold Time: >= 5 Sec.   Testing Your ESD Gun The following characteristics in the table below must be verified to ensure proper test results:   Level Indicated Voltage 1st peak Current of discharge (±15%) Rise Time (±25%) Current at 30ns (±30%) Current at 60ns (±30%) 1 2 kV 7.5 A 0.8 ns 4A 2A 2 4 kV 15 A 0.8 ns 8A 4A 3 6 kV 22.5 A 0.8 ns 12A 6A 4 8

IEC 61000-6-5 sets immunity requirements for apparatus intended for use by Electricity Utilities in the generation, transmission and distribution of electricity and related telecommunication systems. The locations covered are the power stations and the substations where apparatus of Electricity Utilities are installed. Being part of Part 6 of the IEC 61000 series of standards, this covers generic immunity standards. IEC 61000-6-5 Immunity requirements are given for the frequency range 0 Hz to 400 GHz, but only in respect of electromagnetic phenomena for which detailed test procedures, test instrumentation and test set-up are given in existing IEC basic standards. The immunity requirements are suitable for satisfying the particular needs related to the functions and tasks of equipment and systems, for which reliable operation is required under actual electromagnetic conditions; in this respect, this technical specification establishes performance criteria for the different functional requirements. IEC 61000-6-5 has the task to specifiy a set of essential requirements, test procedures, and generalized performance criteria applicable to such products of systems operating in this electromagnetic environment.

EN 61000-6 is an electromagnetic compatibility (EMC) standard developed to keep interference between electronic devices under control to reduce disturbance and improve immunity in residential, industrial, and commercial environments. EN 61000-6 has four parts to date comprised of the following: 1) EN 61000-6-1: Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity for residential, commercial and light-industrial environments Applies to electrical and electronic apparatus intended for use in residential, commercial and light-industrial environments both indoor and outdoor. Immunity requirements in the frequency range 0 Hz to 400 GHz are covered. This generic EMC immunity standard is applicable if no relevant dedicated product or product-family EMC immunity standard exists. This standard applies to apparatus intended to be directly connected to a low-voltage public mains network or connected to a dedicated DC source which is intended to interface between the apparatus and the low-voltage public mains network. This standard applies also to apparatus which is battery operated or is powered by a non-public, but non-industrial, low-voltage power distribution system if this apparatus is intended to be used in the locations. This standard supersedes EN 50082-1. 2) EN 61000-6-2: Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity for industrial environments Applies to electrical and electronic apparatus intended for use in industrial environments. Immunity requirements in the frequency range 0 Hz to 400 GHz are covered. This generic EMC immunity standard is applicable if no relevant dedicated product or product-family EMC immunity standard exists. This standard applies to apparatus intended to be connected to a power network supplied from a high or medium voltage transformer dedicated to the supply of an installation feeding manufacturing or similar plant, and intended to operate in or in proximity to
