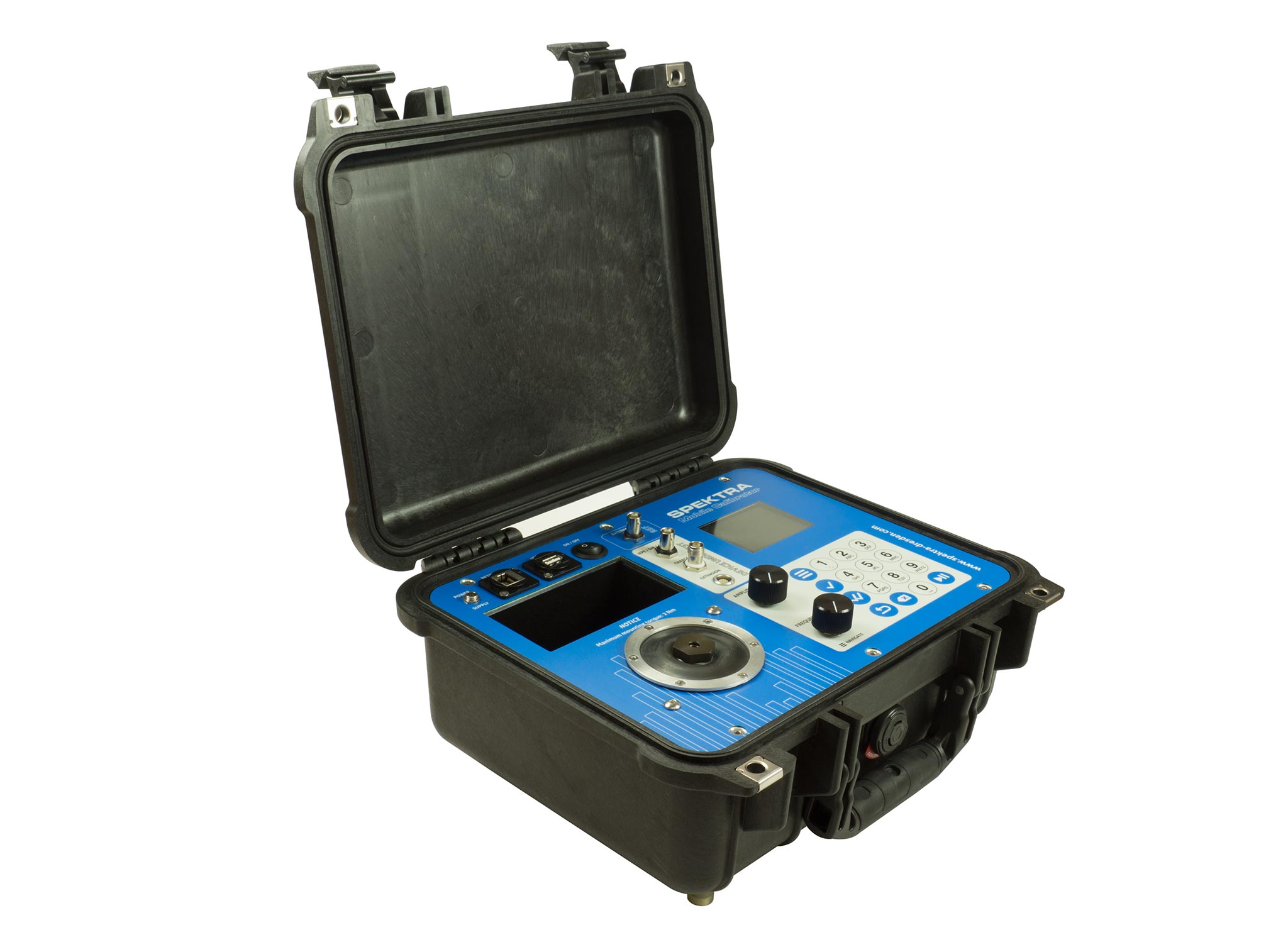

Spektra CV-10 Mobile Calibrator
The Spektra CV-10 Mobile Calibrator is a system for the calibration of acceleration sensors that offers all the advantages of a mobile calibration system - plus the proven user-friendly interface of SPEKTRA. Spektra CV-10 calibrators include an internationally recognized calibration certificate (ISO 17025, traceable to PTB, NIST,...). Different operation modes are offered (manual, sweep, stepped sine) for quick checks as well as automatic operation. The Spektra CV-10 also offers integrated signal conditioning for transducers with voltage, IEPE, charge and AC current output and optional signal conditioning for applications like piezo-resistive transducers, available via the extension connector.
| Frequency Range | 7 Hz … 10 kHz |
| Max. Acceleration | 200 m/s² pk |
| Max. Velocity | 700 mm/s |
| Max. Displacement | 5 mm pk-pk |
| Op. Temperature Range | 0 °C … +50 °C |
| Max. Payload | 900 g |
| Max. Torque for mounting of transducers | 2 Nm |
| Weight | 8.5 kg |
| Dimensions (HxWxD) | 146 mm x 347 mm x 295 mm |
- Frequency Range: 7 Hz ... 10 kHz
- Max. Stroke (peak-peak): 5 mm
- Max. Amplitude: 200 m/s²
- Standard Signal Conditioner: DIR, ICP, CHA
- Max. Payload: 900 g
- Weight: below 10 kg
- Fully operational in a rugged case
- Easy to understand and user-friendly interface
- Smart data processing and system integration
- Connectivity via Ethernet (WiFi as option)
- Transfer data to other SPEKTRA systems
- Comprehensive integrated signal conditioners e.g. for PR sensors (option)
- On-Site calibration of vibration transducers (acceleration, velocity, displacement)
- On-Site calibration of proximity probes (optional)
- Quick, simple and mobile in-field inspection/calibration of vibration transducers
