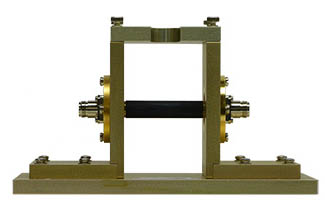

Solar 9125-1 Calibration Test Fixture | 20 Hz - 500 MHz
The Solar 9125-1 Calibration Test Fixture operates at a frequency range of 20 Hz - 500 MHz. The Solar 9125-1 uses Type N connectors and weighing just 9 pounds, it is portable and usable in a variety of environments.
| Model | 9125-1 |
| Frequency Range | 20 Hz – 500 MHz |
| Transfer Impedance | 1.0 to 5.0-ohms above 150 kHz |
| Output Load Impedance | 50 ±. j 0 ohms |
| Continuous Signal Current (CW) | 40 A |
| Maximum Power Current | 200 A. dc to 400 Hz |
| Peak Pulse Current | 60 Amp. Maximum |
| Connectors | Type N |
| Weight | 9 lb. (4.1 kg) |
- Calibration test fixture
- Frequency range of 20 Hz to 500 MHz
- Type N connectors
- Portable design
SKU: SOLA-9125-1
