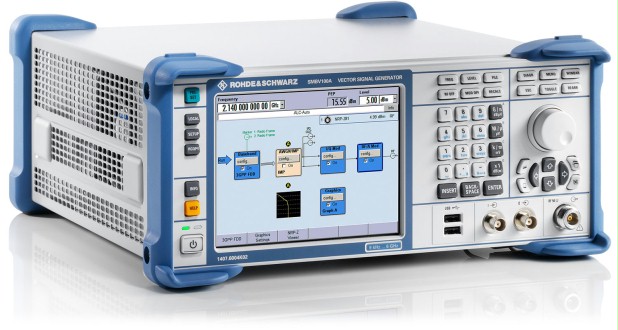

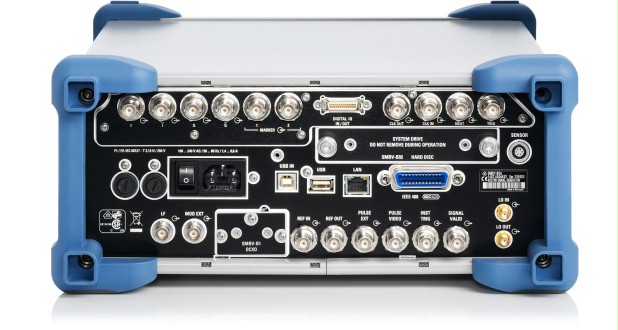

Rohde & Schwarz SMBV100A Vector Signal Generator

The Rohde & Schwarz SMBV100A provides outstanding RF capabilities, including a very high output level and rapid configuration times. Additionally, the device can be outfitted with an internal baseband generator, enabling it to produce various digital standards such as LTE, LTE-Advanced, IEEE802.11ac, and GNSS. The vector signal generator's broad frequency spectrum, ranging from 9 kHz to 6 GHz, encompasses all crucial bands for digital modulation, covering applications relevant to GPS standards.

Product Info Related Products

Frequency Range	CW mode	9 kHz - 6 GHz
Frequency Range	I/Q mode	1 MHz - 6 GHz
Maximum Output Power	1 MHz < f ≤ 6 GHz	> +18 dBm (PEP)
Output impedance VSWR in 50 Ω system	200 kHz < f ≤ 6 GHz	< 1.8
Wideband Noise	< –142 dBc
Maximum FM Deviation	16 MHz
Maximum φM	160 rad

Frequency options from 9 kHz to 3.2 GHz/6 GHz
Optional baseband generator with realtime coder and arbitrary waveform generator for maximum flexibility
Optional ARB-only baseband generators as cost-saving alternatives
Support of 3GPP LTE FDD and TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, WiMAX™ and all other important digital standards
Fully fledged GNSS simulator with GPS, Glonass, Galileo, BeiDou and QZSS/SBAS
Special package for cost efficient GNSS Production Tester
RF bandwidth of up to 160 MHz with internal baseband generator
I/Q modulator with 528 MHz RF bandwidth
Optimized for high production throughput
Prepared for aerospace and defense applications
Low cost of ownership due to simple service concept
