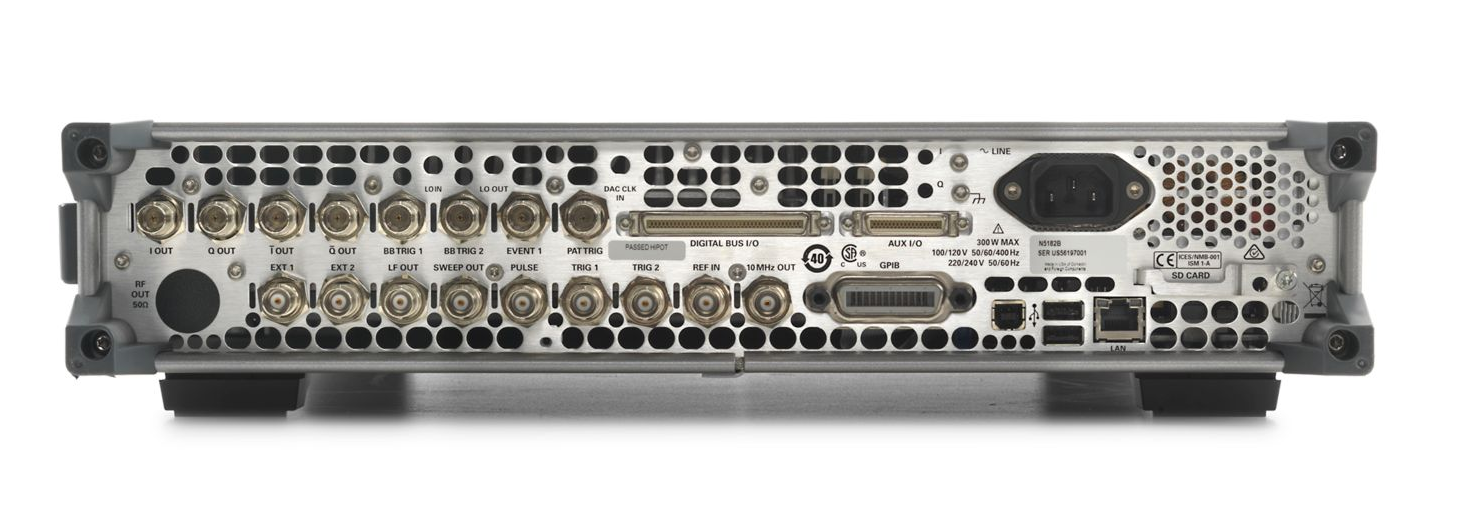

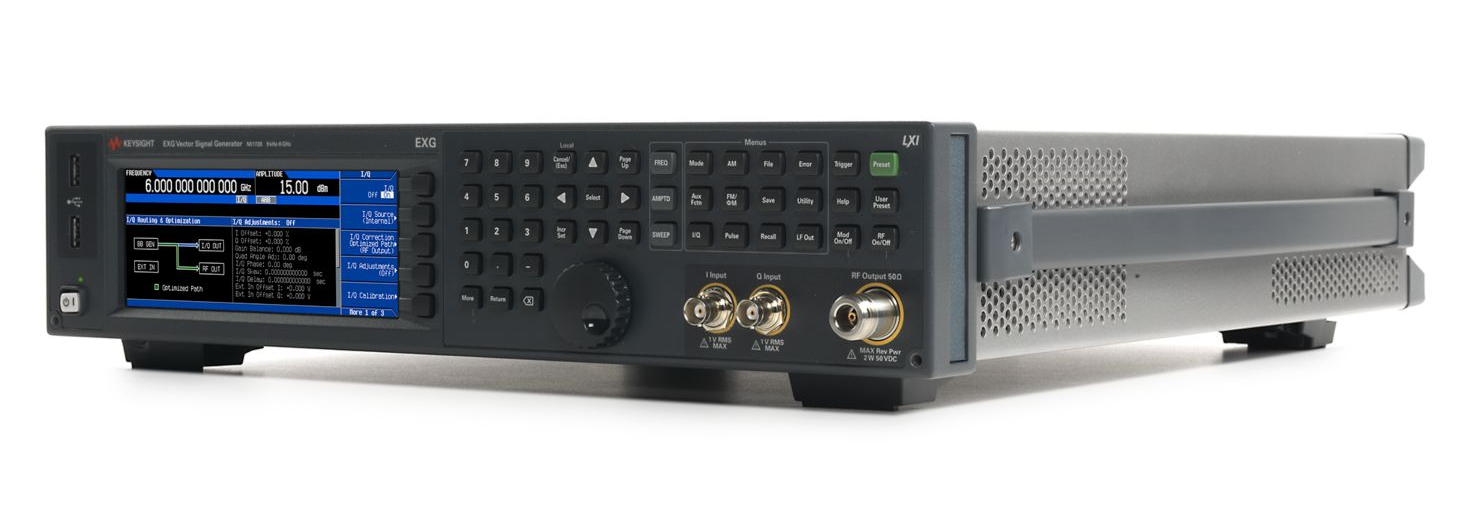

Keysight N5172B EXG X-Series RF Vector Signal Generator

The Keysight N5172B EXG X-Series RF Vector Signal Generator operates from 9 kHz to 6 GHz and is designed for efficient manufacturing tests. This model offers both analog and vector signal capabilities for comprehensive component testing and receiver verification. The N5172B features industry-leading ACPR and rapid throughput with sub-800 µs adjustments in frequency, power, and waveform type. Additional benefits include the use of pre-defined, standards-based waveforms for accurate testing and a compact design that fits a standard two rack-unit space.

Product Info

Frequency Range	9 kHz - 3 GHz
Resolution	0.001 Hz
Phase Offset	Adjustable in nominal 0.1 ° increments
Reference Output	Frequency	10 MHz
Reference Output	Amplitude	≥ +4 dBm, nominal into 50 Ω load
Amplitude Output Parameters	Settable Range	+19 to –144 dBm
	Resolution	0.01 dB
	Step Attenuator	0 to 130 dB in 5 dB steps electronic type
	Connector	Type N 50 Ω, nominal
Bandwidth	Baseband (I or Q)	Up to 100 MHz baseband, nominal
Bandwidth	RF (I+Q)	Up to 200 MHz RF, nominal
Impedance	50 Ω, nominal per output

Achieve faster throughput and greater uptime with cost-effective performance optimized for manufacturing test
Perform basic parametric testing of components and functional verification of receivers with industry-leading ACPR, EVM, and output power
Reduce the time you spend on signal creation with Signal Studio software; purchase only the waveforms you need with 5- and 50-pack licensing
Minimize downtime and expenses with self-maintenance solutions and low-cost repairs
