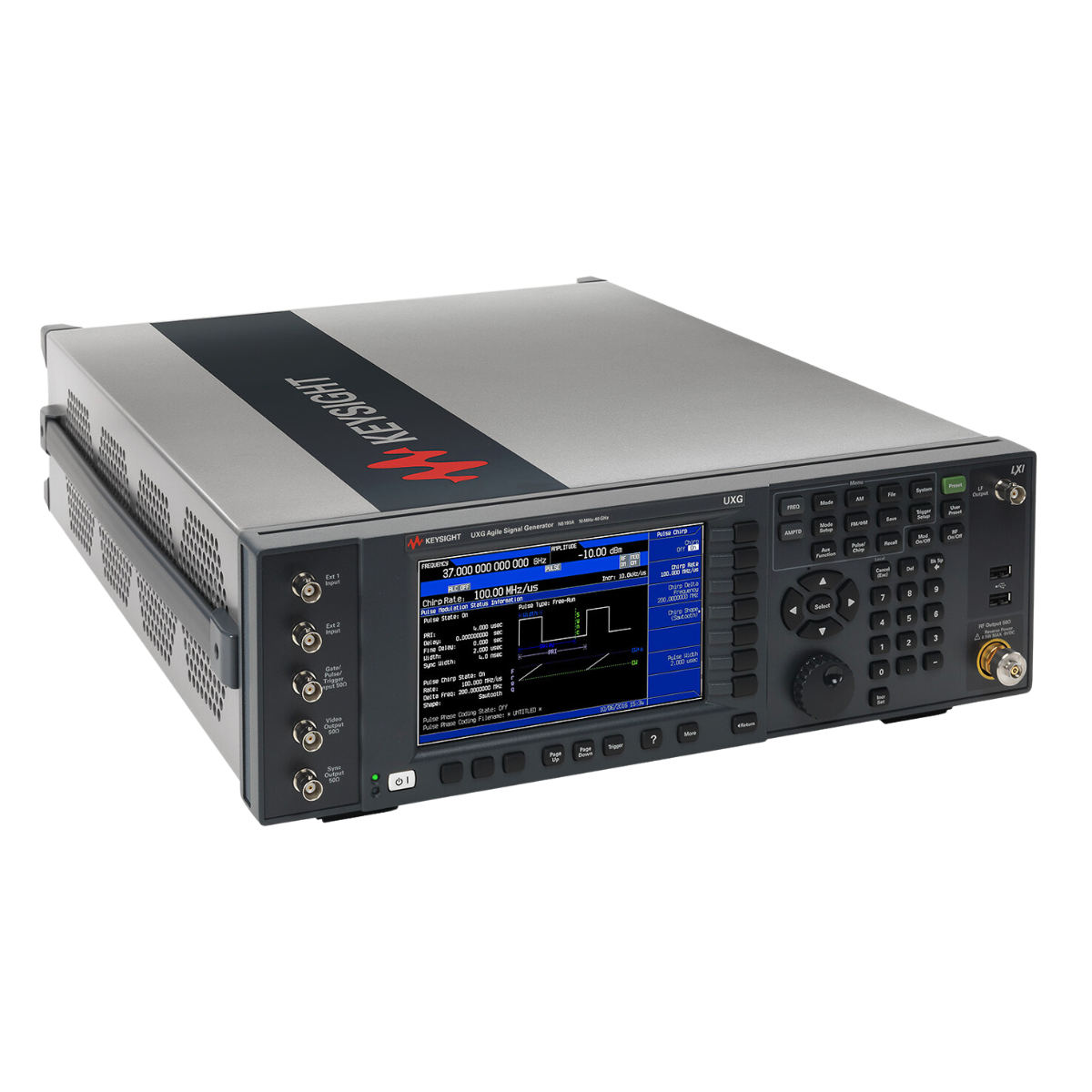

Keysight N5193A UXG Agile Signal Generator

The Keysight N5193A UXG Agile Signal Generator is an ideal instrument to simulate increasingly complex signal environments for radar, EW, and antenna-test. Keysight N5193A units allow users to test more quickly and increase confidence in EW systems by generating signal simulations when you need them. Keysight N5193A Signal Generators are designed to accurately simulate multi-threat environments with an update rate of 180-ns PDW, chirps 10 to 25% of the carrier frequency, and pulses as narrow as 10 ns.

Product Info Related Products

Frequency range	10 MHz - 20 GHz or 40 GHz
Phase noise	–126 dBc at 10 GHz, 10 kHz offset
Non-harmonic spurious	–70 dBc at 18 GHz
Output power	Standard: +10 dBm, Optional: –130 dBm - 10 dBm

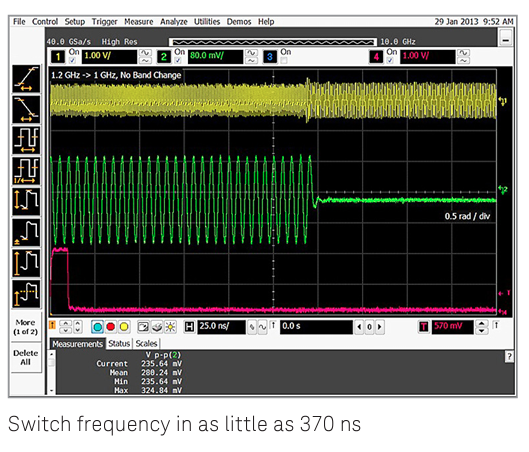

Fast CW mode frequency switching speed	370 ns
Normal/list update rate	< 180 ns in list mode (frequency, amplitude, phase)
Minimum pulse width	10 ns
Pulse rise/fall time	3 ns
Pulse on/off ratio	90 dB

Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test
Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator
Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics

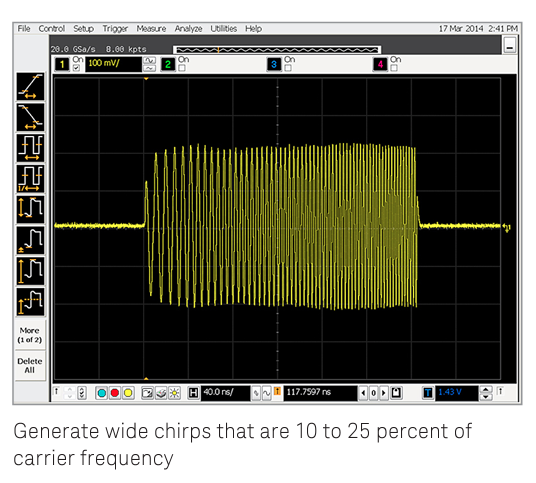

Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of the carrier frequency, pulses as narrow as 10 ns

SKU: KEYS-N5193A
