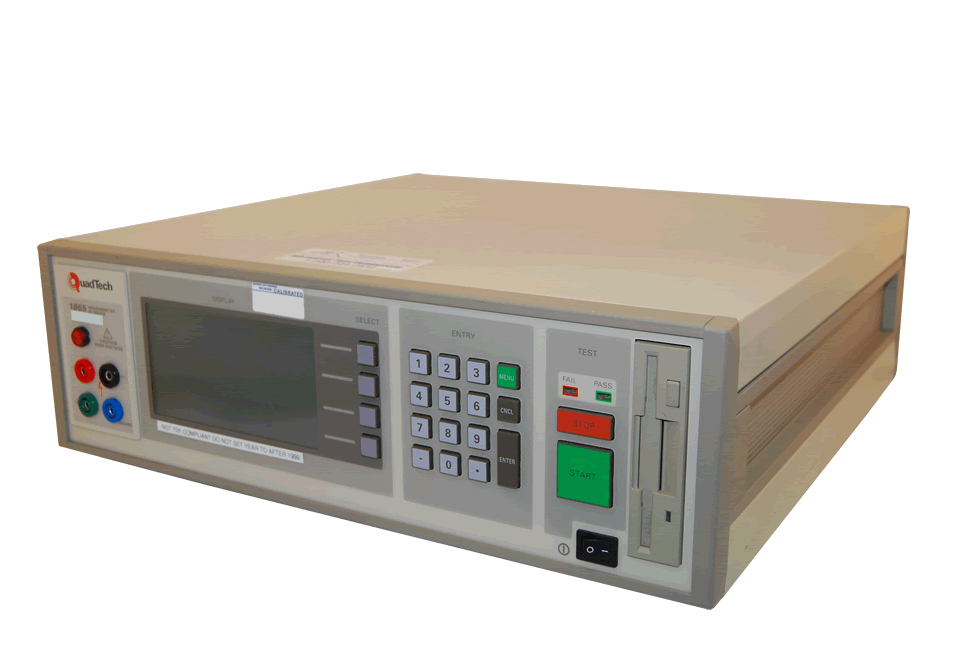

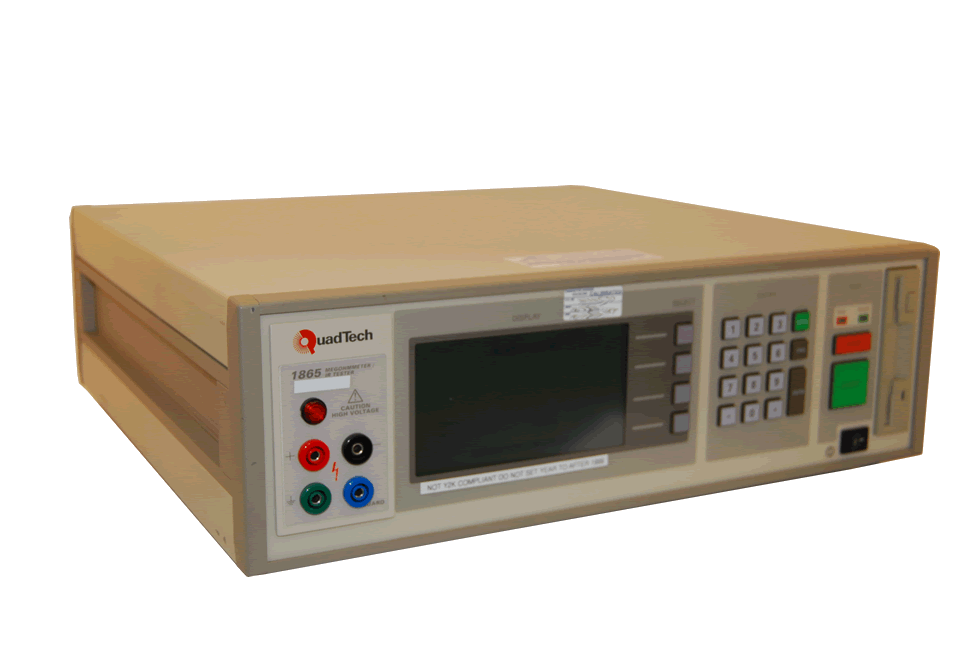

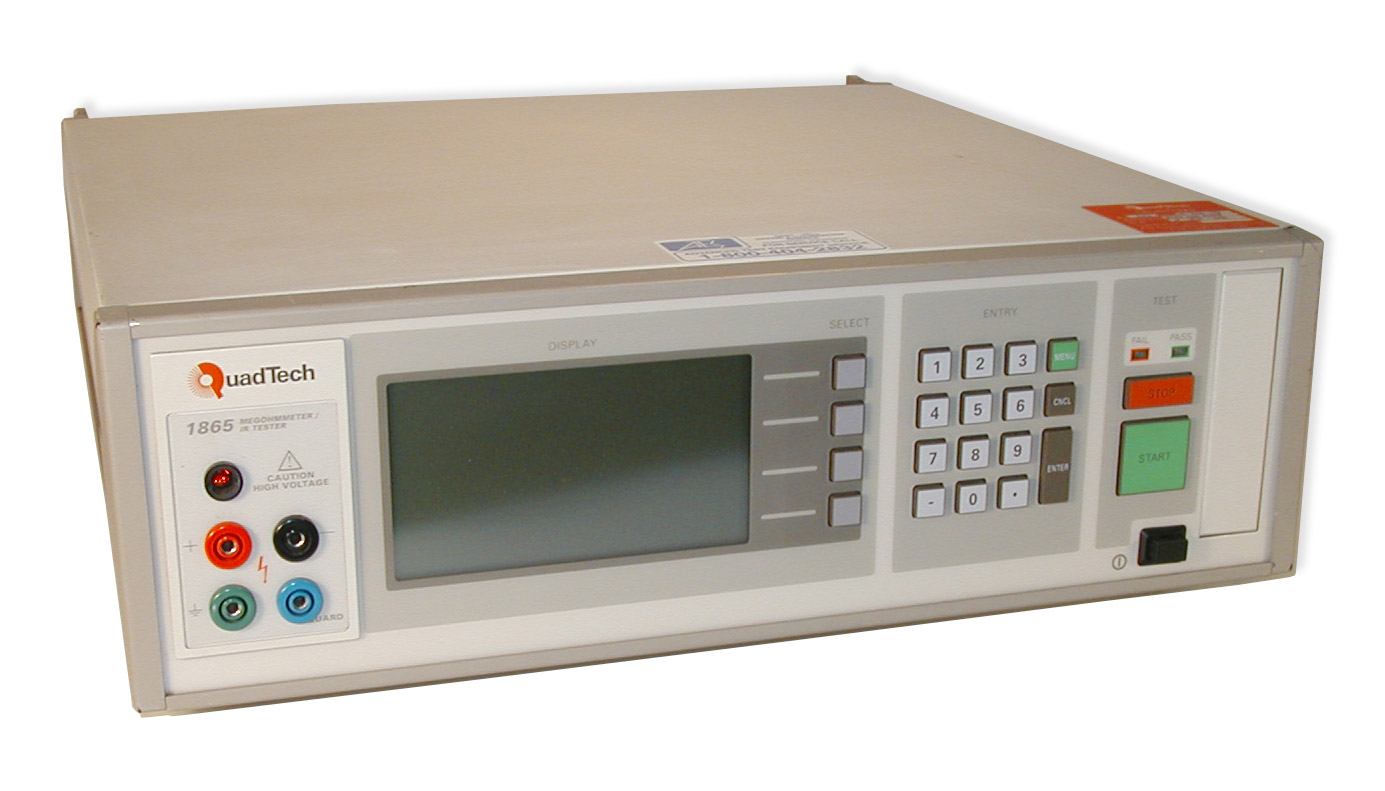

Quadtech 1865 Megohmmeter/IR Tester

The Quadtech 1865 Megohmmeter/IR tester, with digital display, is used for high accuracy measurements of insulation resistance on a wide variety of components, materials and electronic devices. With the Quadtech 1865 Megohmmeter/IR tester, resistance values greater than 100 teraohms can be measured with a basic accuracy of 0.5% at DC voltages up to 1000V. A programmable limit makes the 1865 Megohmmeter/IR tester ideal for pass/fail testing in a production environment and is also adaptable for use in automated system applications with its optional IEEE-488 interface.

Product Info Related Products

Measurement range to 100TΩ
Programmable test voltage from 1 to 1000 V DC
Measurement accuracy of 0.5%
Automatic ranging
Programmable test timers
High resolutions LCD display
Storage of test setup and results
Automatic zeroing of test leads
Limit entry for pass/fail testing
Direct reading of measured current
Keypad lockout with password protection
RS-232 and I/O interfaces
Optional IEEE-4888 interfaces

Test insulation on switches, connectors, cables, printed circuit boards, transformers, motors and other devices.
Test insulation properties of natural and synthetic materials such as oils, plastic, rubber or porcelain.
Screening and sorting of high resistance components.

SKU: QUAD-1865
