PalmSens Sensit Smart Smartphone Potentiostat

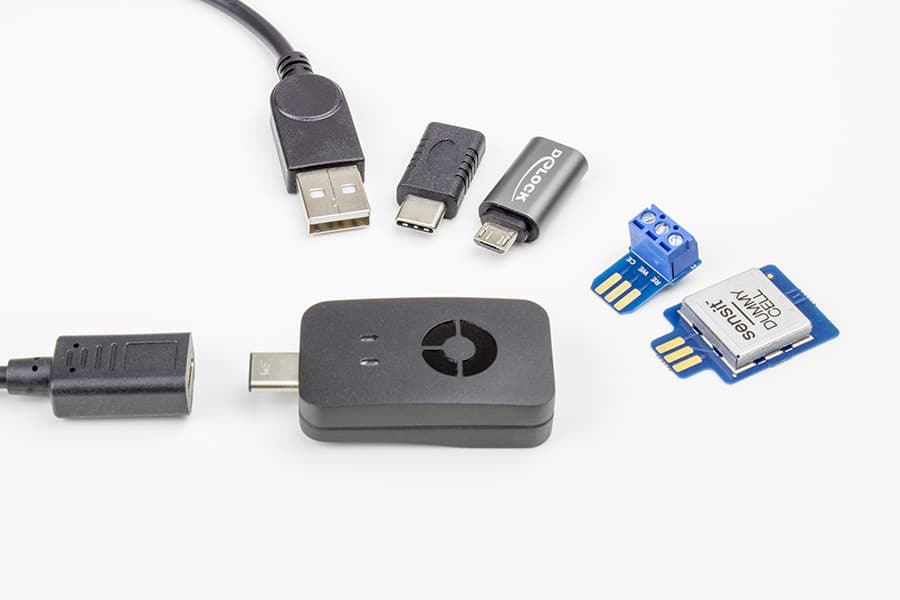

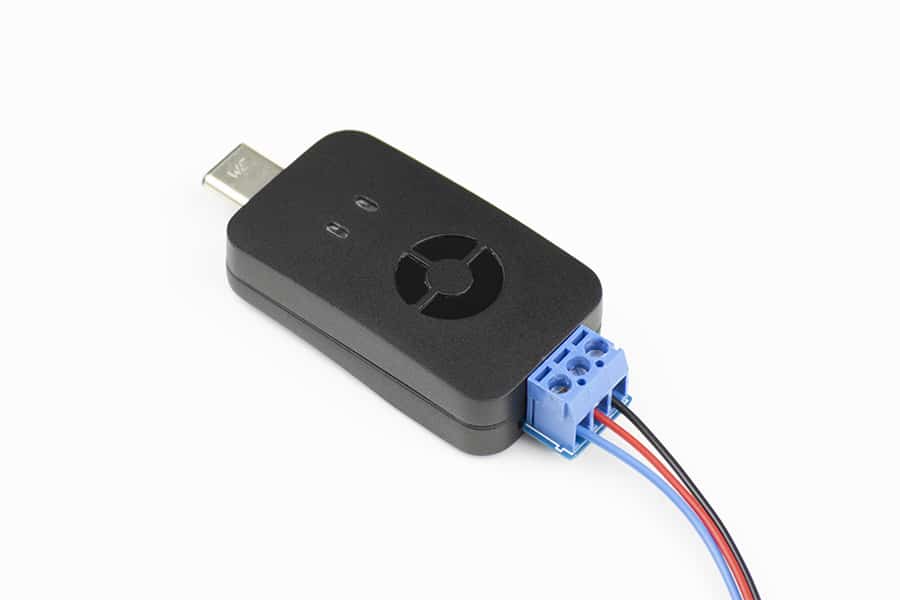

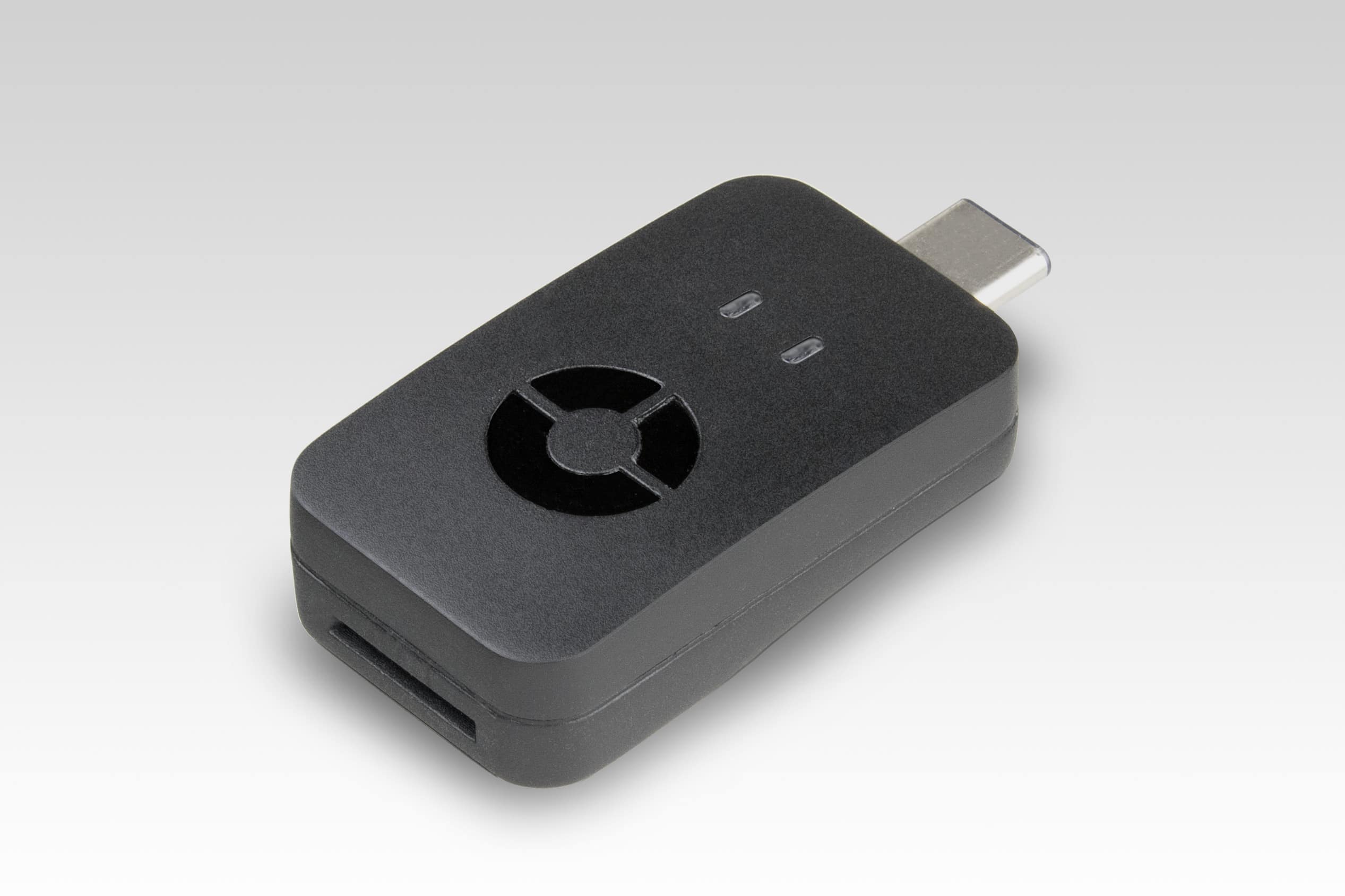

The PalmSens Sensit Smart Smartphone Potentiostat is the smallest device of its kind, collecting accurate cell measurements and analysis in a tiny package. The Sensit Smart potentiostat easily inserts into a tablet or smartphone without losing the electrochemical techniques that come standard with other, larger potentiostats. The device uses cyclic voltammetry, impedance spectroscopy, and square wave voltammetry all controlled through an app on the connected smartphone or tablet.

Even while coming in a unique, portable design, the PalmSens Sensit Smart Smartphone Potentiostat has a vast DC potential range from -1.7 to +2 V while in Max Range mode. The Sensit Smart also features a wide dynamic dc potential range of 2.6 V and a maximum current of ±3 mA.

Product Info Related Products

General Specifications
	Low Speed Mode	High Speed Mode	Max Range Mode
Full DC Potential Range	-1.2 to +2 V	-1.7 to +2 V	-1.7 to +2 V
Dynamic DC Potential Range	2.2 V	1.2 V	2.6 V
Compliance Voltage	-2.0 to +2.3 V
Maximum Current	±3 mA
Max. Acquisition Rate (Datapoint/s)	100	1000	100
Supports FRA/EIS	No	Yes	No

Potentiostat Specifications
	Low Speed Mode	High Speed Mode	Max Range Mode
Channels	1 (1x WE, 1x RE and 1x CE)
Applied DC Potential Resolution	537 µV	395 µV	932 µV
Applied Portential Accuracy	<0.2%	<0.5%	<0.5%
Current Accuracy	<0.5% of the selected current range <2% for 100 nA current range	<1% of the selected current range	<1% of the selected current range
Measured Current Resolution	0.006% of selected current range (5.5 pA on 100 nA range)
Measured Potential Resolution	56 uV

Capable of EIS up to 200 kHz
Built around the EmStat Pico module
Potential range -1.7 to +2 V
Current ranges 100 nA – 5 mA (max ±3 mA)
Low Speed mode: For scan rates up to 1 V/s or a bandwidth of 100 Hz.
High Speed mode: For high scan rates and frequencies.
Max Range mode: A combination of the Low and High Speed modes for optimal dynamic dc-potential range.
