Admiral Instruments Squidstat Plus Potentiostat

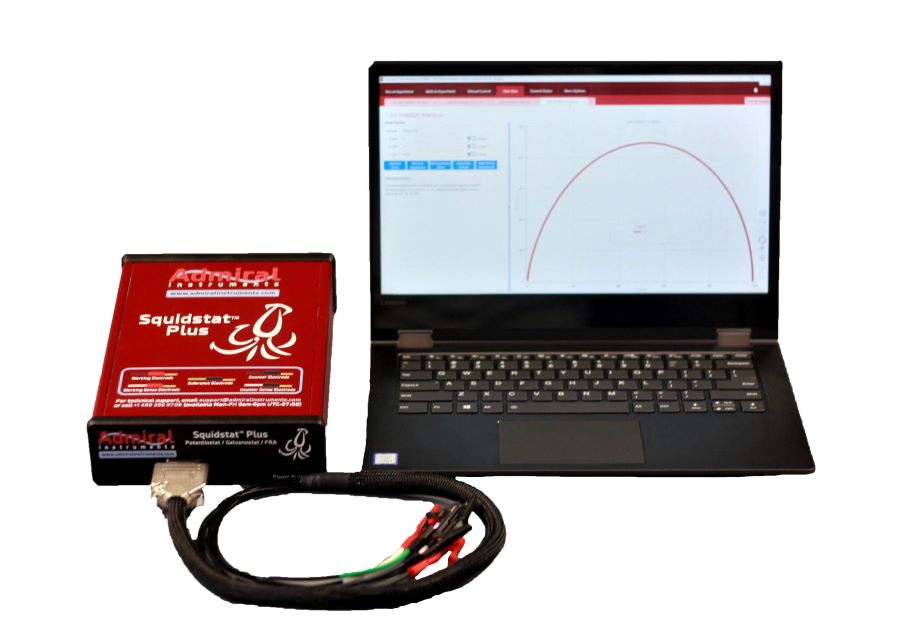

The Admiral Instruments Squidstat Plus is a ±1 A potentiostat with EIS up to 1 MHz and 1% / 1° accuracy at 1 mΩ. These models are ideal for energy storage and conversion system test applications like battery cell research, fuel cell and electrolysis cell research, battery reuse characterization, solar fuels, artificial photosynthesis and more. They are also effective instruments for general electrochemistry, solar cell research, corrosion testing, photo-electrochemical systems and sensor development and calibration. Each device includes one 90 cm channel cable, one USB cable, and one power supply with over 300 cm in length between the power outlet and potentiostat.

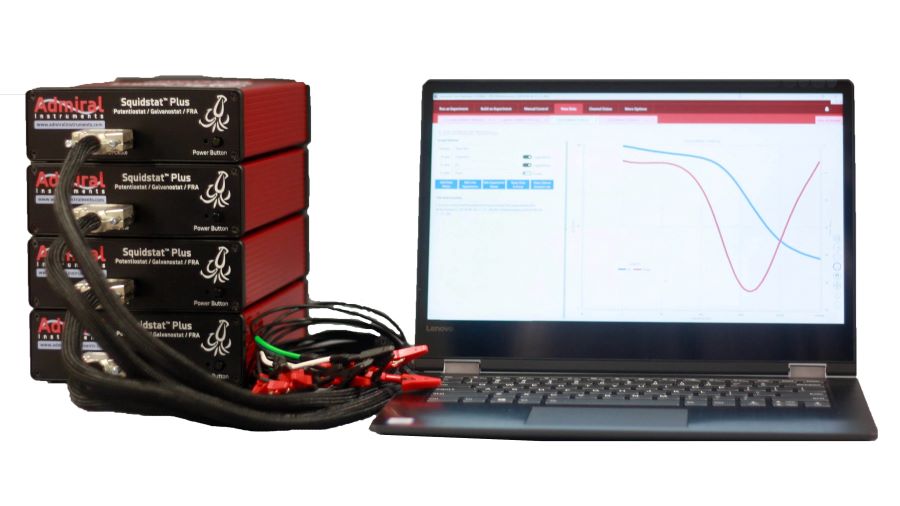

The Admiral Instruments Squidstat Plus Potentiostat is similar to the Admiral Instruments Squidstat Cycler Potentiostat and can be used in unison or separately.

Product Info

General Specifications
Channels Per Unit	1
Operating Modes	Pot / Gal / ZRA / FRA
Cell Connections	2, 3, 4, or 5 electrode
ADC/DAC Resolution	16 bit resolution
Slew Rate (No Load)	5 MV/s
Maximum Sampling Speed	100,000 samples/s
Floating and/or Earth-grounding	Both (Switchable)
Input Impedance	>10 Tera-ohm
Input Bias Current	<1 pA
Data Backup Memory (Onboard)	16 GB
Physical Dimensions	24 cm x 17 cm x 6 cm
Channel Cable Length	90 cm
Computer Interface	1 USB per unit
Power Supply Requirements	100 – 240 VAC, 50 – 60 Hz
Potentiostatic Input/Output
Compliance Voltage	±12 V per channel
Scan Range (Controlled Voltage)	1 range, ±10 V
Applied Potential Accuracy	0.1% of setpoint, 2 mV max accuracy
Applied Potential Resolution	300 µV
Measured Potential Accuracy	0.1% of setpoint, 1 mV max accuracy
Measured Potential Resolution	300 µV
Galvanostatic Input/Output
Maximum Current	±1 A per channel
Current Ranges	8 ranges (100 nA to 1 A)
Applied Current Accuracy	0.2% of range, 1 nA max
Applied Current Resolution	0.003% of range, 3 pA max
Measured Current Accuracy	0.1% of range, 100 pA max
Measured Current Resolution	0.003% of range, 3 pA max
Impedance Analyzer

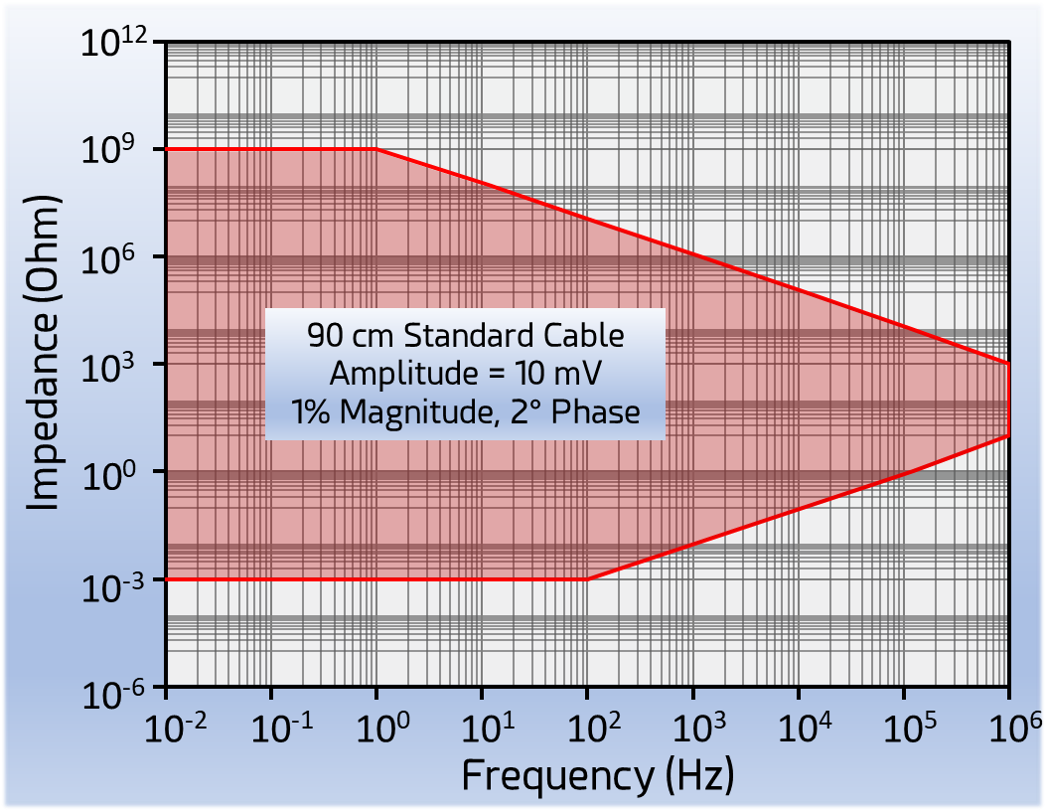

AC Frequency Range for EIS	10 μHz – 1 MHz
AC Frequency Accuracy	0.005% or better
AC Frequency Resolution	0.0004%, 3 µHz max
Potentiostatic Amplitude	≤10% of range, 1 V max
Pot. Amplitude Resolution	240 µV, 12 bit resolution
Galvanostatic Amplitude	≤10% of range, 100 mA max
Gal. Amplitude Resolution	0.002% of range, 2.4 pA max
