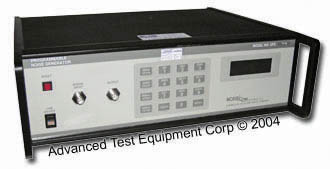

NoiseCom UFX7112 Noise Generator, 1 MHz - 2 GHz
Discontinued
The NoiseCom UFX7112 Noise Generator is not available. See other models.
The NoiseCom UFX7112 1MHz-2GHz 1mW noise generator is easy to use, combining dedicated keys for control of operations and programming with a large 4 x 20 character LCD display for instant status information. The UFX7112 noise generator is a direct replacement for NoiseCom's NC7000 Series of instruments.
The NoiseCom UFX7112 1MHz-2GHz 1mW noise generator contains an amplified noise source that is tuned to provide the best flatness at the instrument output. The amplifier is optimized to deliver an output with a Gaussian amplitude distribution. Noise output power level can be adjusted from 0 to 127 dB in 1 dB (optionally 0.1 dB) steps. The instrument's output signal is controlled by an RF type switch. In the "standby state", the noise is terminated into an RF load, and in the “on” state it is directed to the output connector. The NoiseCom UFX71112 is microprocessor-controlled and provides information about operation of the instrument via its color TFT display.
| Output | White Gaussian noise |
| Attenuator | 0 to 127 dB in 1 dB steps |
| 0 to 79 dB above 2 GHz | |
| (0.1 dB steps optional) | |
| Control | Local and IEEE-488 |
| Impedance | 50 Ω (others optional) |
| Typical VSWR | 1.5:1 |
| Standard Output Connector | SMA female (K female for UFX7240) |
| Frequency Range | 1 MHz to 2 GHz |
| Output Power | 0 |
| Output dB/Hz | -93 |
| Output Flatness | ±2.0 dB |
