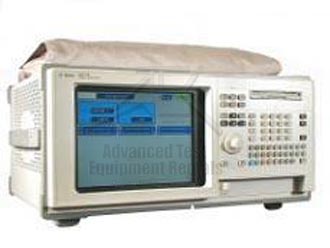

Keysight 1671D-30 Logic Analyzer

Discontinued

The Keysight 1671D Logic Analyzer, 102 Channel logic analyzer can take real-time code traces showing cause and effect events separated by hundreds of thousands of microprocessor instructions. Having a trace that long can be very important when you need to look through nested interrupt service routines and other lengthy sections of code to find answers. And, with the added depth, you wont have to worry about program loops that can quickly fill the memory buffer in a normal logic analyzer.

Product Info

State and timing channels: 102/51
State/timing memory depth
Standard depth: 64 samples on all channels, 128K samples on half channels
Optional depth: 500K samples on all channels, 1000K samples on half channels (state analysis depth is halved when time tags are turned on)
Setup/hold time: 3.5/0 ns to 0/3.5 ns adjustable in 500-ps increments
State analysis speed: 70 MHz in all modes
Timing analysis modes and speeds:
Conventional: 125 MHz on all channels, 250 MHz on half channels
Probe input R & C: 100k ohms and ~ 8 pF
Trigger resources: Patterns: 10; Edge and glitch terms: 2; Ranges: 2; Timers: 2
Trigger sequence levels: 12 with state analysis and 10 with timing analysis
Trigger macros: 23 predefined trigger sequences with graphical representations and plain language descriptions
Mass storage: Hard disk drive and 1.44 MB flexible disk drive
Ethernet LAN interface: Standard equipment; twisted pair and coaxial connectors
OS Boot Method: Flash ROM
