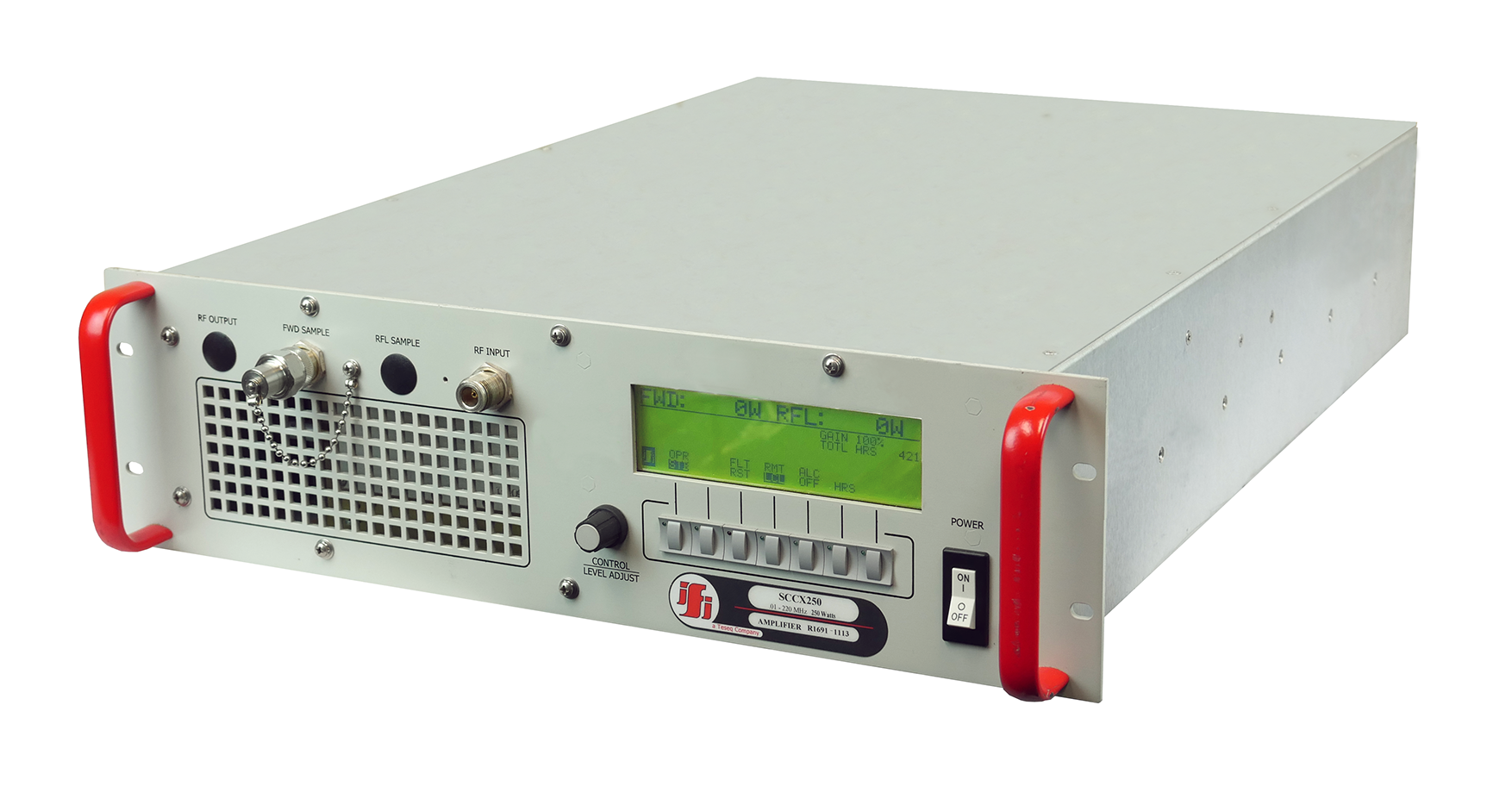

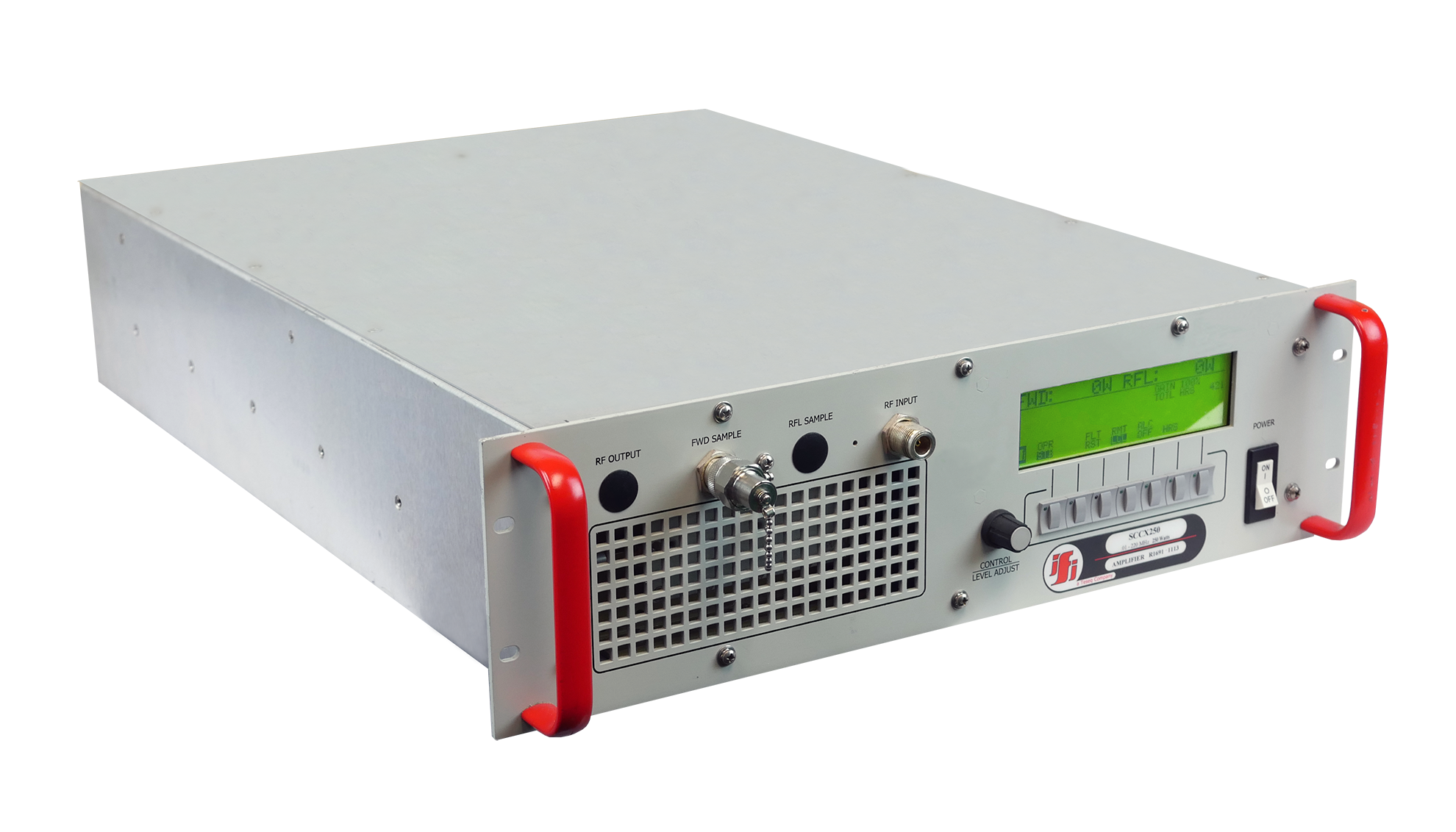

IFI SCCX250 Solid State RF Power Amplifier

Larger

SKU: IFI-SCCX250

Categories

Documents

Datasheet

The IFI SCCX250 is a CW and solid state power amplifier that produces 250 watts / min. of rated power, 200 watts / min. of P1dB power, and 54 dB / min. of gain. These radio frequency amplifiers operate at a frequency range of 10 kHz – 220 MHz. IFI SCCX250 units demonstrate superb RF performance, their solid state design minimizing EMI signal leakage while providing an accessible interface for technicians. Conservatively designed, they operate below maximum ratings for ruggedness and long term reliability, with sixth generation LDMOS Transistors providing reliable brute-power performance. The IFI SCCX’s innovative power amplifiers are specifically designed for laboratory and testing applications. IFI SCCX250 products feature individually shielded aluminum assemblies for the module level, the shielded modular design minimizing EMI signal leakage and allowing for joint use of multiple SCCX units. Self-diagnostic circuitry communicates any issues that might arise with the unit, and integrated force air cooling ensures your device does not overheat. A backlit screen and IEEE-488 interface are complimented by RS232 remote operation.

The IFI SCCX250 is the eighth model in the IFI SCCX Solid State RF Power Amplifier Series, specifically designed for laboratory and all testing applications.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Input / Output Impedance	50 Ohms
RF Input / Sample Connectors	Type N Female, unless specified otherwise
RF Output Connector	Type N Female (Other connectors available by request or specification)
Input VSWR	2.0:1
Output VSWR	2.5:1
Operating Temp.	0-50° Celcius
Non-Operating Temp.	40-70° Celcius (50,000 feet max)
Humidity	95% without condensation
Altitude	10,000 ft
Cooling System	Air cooled, self contained
Modulation	AM, FM, Pulse
Spurious Outputs	Greater than -60 dBc nominal
Harmonics	-20dBc minimum @ Linear Power
