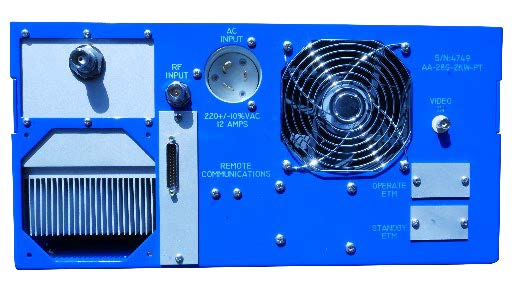

Advanced Amplifiers AA-818G-400-GT TWT High Power Amplifier

Larger

SKU: AA-818G-400-GT

Categories

CW Amplifiers
TWT Amplifiers

Documents

Datasheet

The Advanced Amplifiers AA-818G-400-GT is a high-power TWT amplifier that produces a continuous wave (CW) with a frequency ranging from 7.5 to 18 GHz. The AA-818G-400-GT TWT High Power Amplifier is ideal for use with linear high-power applications and comes with built-in protection circuits for added safety. Reaching a peak output power of 56 dBm and a power ripple of ±0.1 dB, the TWT amplifier remains powerful and efficient. The Advanced Amplifiers AA-818G-400-GT TWT Amplifier delivers reliable power with a rugged design and small form factor for frequent usage.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

RF Specifications
Parameter	Specification	Notes
Frequency	7.5 - 18.0 GHz
Power Ripple	±0.1 dB (maximum)
Output Peak Power	+56 dBm (minimum)
Load VSWR	2:1 (maximum)
Duty Cycle	CW (maximum)
Gain (for Rated Output)	56 dB (minimum)
Input Power (for Rated Output)	0 dBm (typical)
Spurious Output	0 - 250 Hz > 250 Hz	-55 dBc (minimum) -60 dBc (minimum)
Output VSWR Protection	100%
Gain Stability	0.25 dB / 24 hours (typical)

RF Sampling Specifications
Parameter	Specification
RF Output Pulse Video Sample	+10 mv/kw into 50Ω
RF Output Power Sample	-40 dB
RF Interstage Power Sample	-20 dB

Advanced Amplifiers AA-818G-400-GT TWT High Power Amplifier

RF Specifications

RF Sampling Specifications
