Fischer Custom Communications F-120-9A

The F-120-9A has been designed to extend the use of conducted immunity testing over the bandwidth of 10 kHz – 230 MHz. The usable frequency range is 10 kHz - 230 MHz with an insertion loss of less than 8 dB between 150 kHz – 200 MHz. The input power rating is 100 watts for 30 minutes.

Solar 9120-1N Injection Probe

Injection probe
Split toroidal design for easy clamping onto test wires
Calibrated for insertion loss and transfer impedance

PMM EMCL-35 10 kHz - 1 GHz EM Injection Clamp | 35mm Aperture

EM clamp for immunity testing of cables with up to 20 (35) mm diameter
High coupling factor: less than 15 watts amplifier output power is required to obtain a test level of 10 V
Calibration unit and calibration data are supplied with each instrument

Solar 9719-1N Injection Probe

Bulk current injection probe
Has a frequency range of 10 kHz to 350 MHz
Designed for continuous 30-minute use at full power

Fischer Custom Communications F-130A Bulk Current Injector Probe

Broad band high efficiency injection probe
Frequency range of 1 MHz to 700 MHz
Insertion loss of 6 dB or less

PMM EMCL-20 10 kHz - 1GHz EM Injection Clamp | 20mm Aperture

EM clamp for immunity testing of cables with up to 20 (35) mm diameter
High coupling factor: less than 15 watts amplifier output power is required to obtain a test level of 10 V
Calibration unit and calibration data are supplied with each instrument

Solar 9335-2 Multiple Impedance Coupling Device

Connector - 4 x BNC
1:1.0 voltage or current transfer
1:1.5 voltage step-up or current step-down

Fischer Custom Communications FCC-BCICF-2

Bulk current injection probe fixture
Matched with the F-140 bulk current injection probe
Easy-to-use design

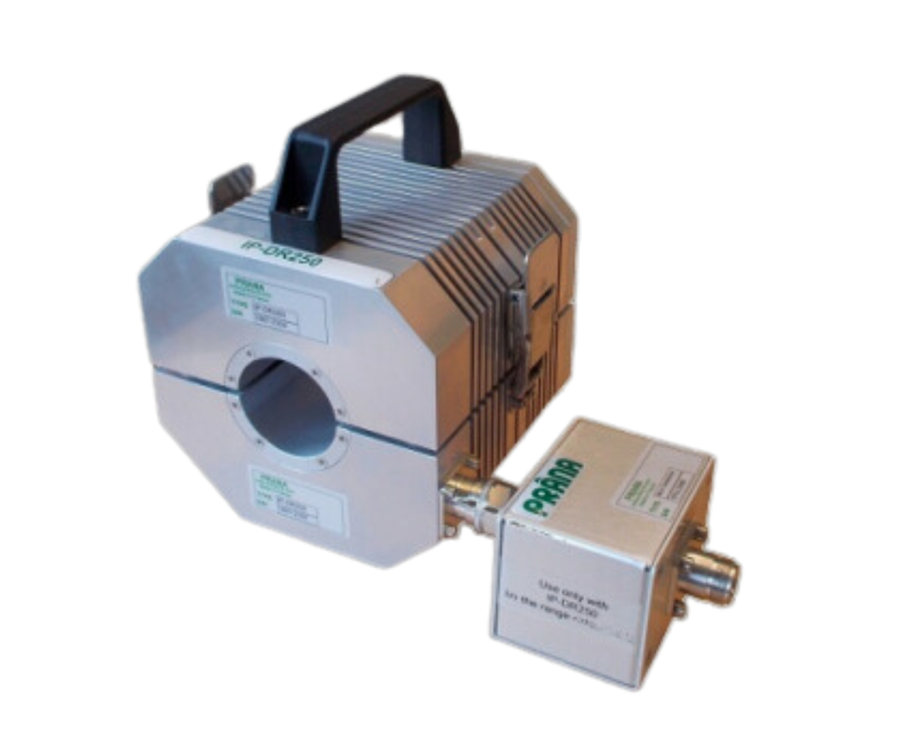

Prâna IP-DR250 Bulk Current Injection Probe

0.01 - 400 MHz
500 W
Broadband (instantaneous single band) : 10 kHz – 400 MHz

AH Systems ICP-622 Injection Current Probe | 1 MHz – 500 MHz

Broad frequency range of 1 MHz to 500 MHz
Individually calibrated
Split type clamp-on design

Solar 9144-1N Injection Probe

Injection probe
Unique split toroidal structure
Designed to maintain a low voltage standing wave ratio

Solar 9142-1N Bulk Current Injection Probe | 2 MHz – 450 MHz

Bulk current injection probe
Frequency range of 2 MHz to 450 MHz
Maximum input power of 200 W

AH Systems ICP-621 Injection Current Probe | 10 kHz – 100 MHz

Broad frequency range of 10 kHz to 100 MHz
Individually calibrated
Split type clamp-on design

ETS-Lindgren 95236-1 Bulk Current Injection Probe

Solar 9108-1N Clamp-On Injection Probe | 10 KHz – 200 MHz

Bulk current injection probe
Frequency range of 10 kHz and 200 MHz
1.25-inch diameter window

Frequency	10 kHz - 2 30 MHz
Internal Diameter	40 mm (1.58 inches)
External Diameter	127 mm (5 inches)
Thickness	134 mm (5.28 inches)
Input Power	100 watts for 30 minutes or 200 watts for 15 minutes
Connector	Type N
