Bacharach PCA 400 Combustion & Emissions Analyzer

The Bacharach PCA 400 Combustion & Emissions Analyzer is a handheld analyzer for commercial and industrial gas analysis applications. The Bacharach PCA 400 offers everything you and your technicians need to commission, tune, maintain and certify any boiler. It is perfect for spot-checking and tuning your engines with the high-range CO sensor and available sample conditioner. Whether it's boiler combustion or emissions testing of your natural gas, stationary genset or mobile fleet vehicles, monitoring your emissions is fast, easy and accurate. Users of the Bacharach PCA 400 have the option to save measured data in the unit as discreet tests, or stream it live via Bluetooth communications to a PC or other smart hand-held device for compliance reporting.

Product Info

Measurements: O₂ CO-H₂ compensated CO (high) NO SO₂ Stack Temperature Ambient Temperature Draft/Differential Pressure	0 to 20.9% 0 to 10,000 ppm 0 to 40,000 ppm 0 to 3,000 ppm 0 to 5,000 ppm -4 to 2192°F (-20 to 1200°C) -4 to 999°F (-20 to 537°C) ± 72 in H₂O (± 179 mB)
Display:	4.3 in. (10.9 cm) color touch panel LCD

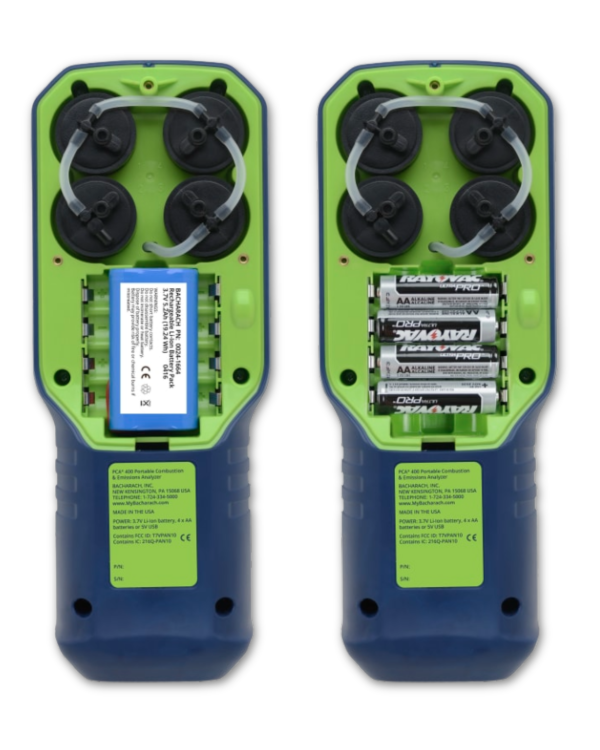

Power:	Rechargable Li-Ion battery pack, 4x AA batteries or wall adapter (5V USB)
Run Time:	12 to 14 hours (typical, w/ included Li-Ion battery pack)
Size (H x W x D):	10 x 3.8 x 2.5 in. (25.4 x 9.7 x 6.4 cm)
Weight:	1.5 lb. (0.68 kg) w/ Li-Ion battery pack
Fuels:	Natural gas, coal, oil 2/4/6, propane, wood/biofuel, kerosene, bagasse, digester gas, B5, pellets, KOKS, LEG, LPG, butane, wood chips
Operating Conditions:	32 to 113°F (0 to 45°C), 15 to 90% RH (non-condensing), 1 ATM ± 10%
Warm-Up Time:	60 seconds
Memory:	500 sets of records
Communications:	USB 2.0 (micro-B), IrDA, Bluetooth
Approvals:	CE, EN 50379-1 & -2
Warranty:	2 years for instrument, 5 years for O₂ sensor
Sample Flow Rate:	0.6 to 0.7 L/min (standard) 1.0 L/min (high flow mode)

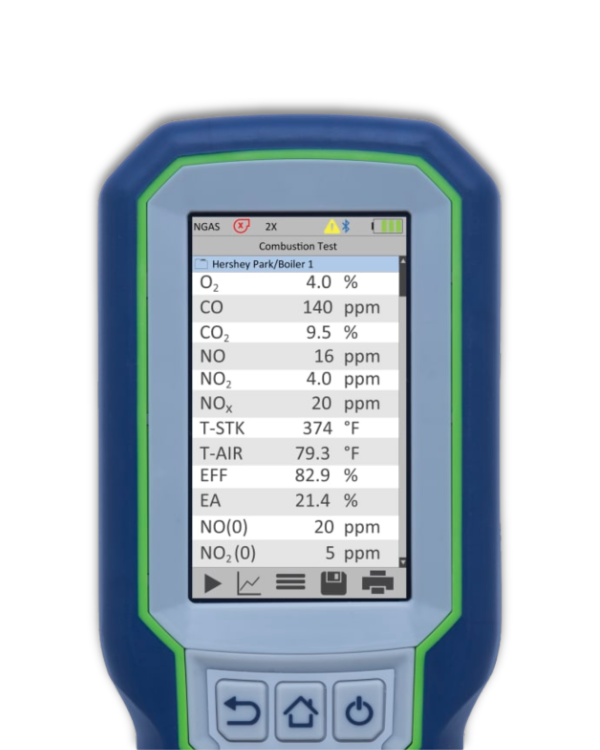

Large touch screen display
Bluetooth wireless communications
Long-life O₂ sensor
Customizable reports for data viewing
Standard Li-Ion battery
Rugged, one step probe connection
Automatic sensor protection
B-Smart sensor exchange program

PCA-400 36" Probe
PCA-400 24" Probe

CO
CO₂
NO
NO_x
O₂
SO₂
SO_x

EPA Method 7E - DETERMINATION OF NITROGEN OXIDES EMISSIONS FROM STATIONARY SOURCES
EPA Method 10 - DETERMINATION OF CARBON MONOXIDE EMISSIONS FROM STATIONARY SOURCES (INSTRUMENTAL ANALYZER PROCEDURE)
