mPower Electronics mPlatoon

Multi-Gas Team Warning System

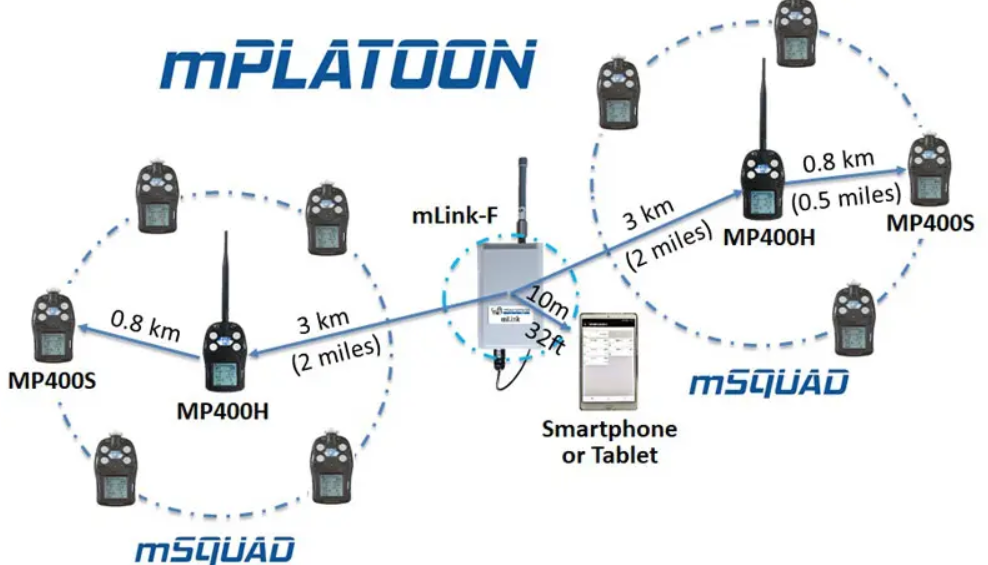

The mPower Electronics mPlatoon Multi-Gas Team Warning System is a wireless device with a lightweight design and several user-friendly applications. With real-time readings, pump detectors, a wireless host, and a modem, this product provides operators with the technology needed to complete a variety of test requirements. The mPower Electronics mPlatoon is ideal for firefighters, hazmat response personnel, and others who work in potentially dangers environments.

Product Info Related Products

Sensors	Interchangeable and field-replceable: PID for VOCs (MP400S only) EC for Toxic & O2 Pellistor for LEL NDIR for LEL Vol% & CO2
Response Time (t90)	15 s (LEL/CO/H2S/O2) - MP400S 20 s (LEL/CO/H2S/O2) - MP400H Others vary up to 120 s
Sampling	MP400S: Internal pump MP400H: Diffusion
Battery	8-36 hr (depending on sensors and pump installed)
Direct Readout	Real-time reading of gas concentration PID measurement gas and correction factor Battery status STEL, TWA, peak, and minimum values Man-Down alarm on/off
Alarms	Audible (95 dB @ 30 cm) Visual (flashing bright red LEDs) Vibration On-screen indication of alarm conditions Man-Down alarm and manual Panic alarm
Temperature	-4° - 122°F (-20° to 50°C)
IP Rating	MP400S: IP-65 (pump) MP400H: IP-67 (diffusion)
Display	128 x 128 graphical LCD 1.77 x 1.73 in (45 x 44 mm) LED backlight and auto “flip” screen
Dimensions (without antenna)	5.7 x 3.3 x 1.7 in (140 x 84 x 42 mm)
Weight	15.5 oz (435 g)
