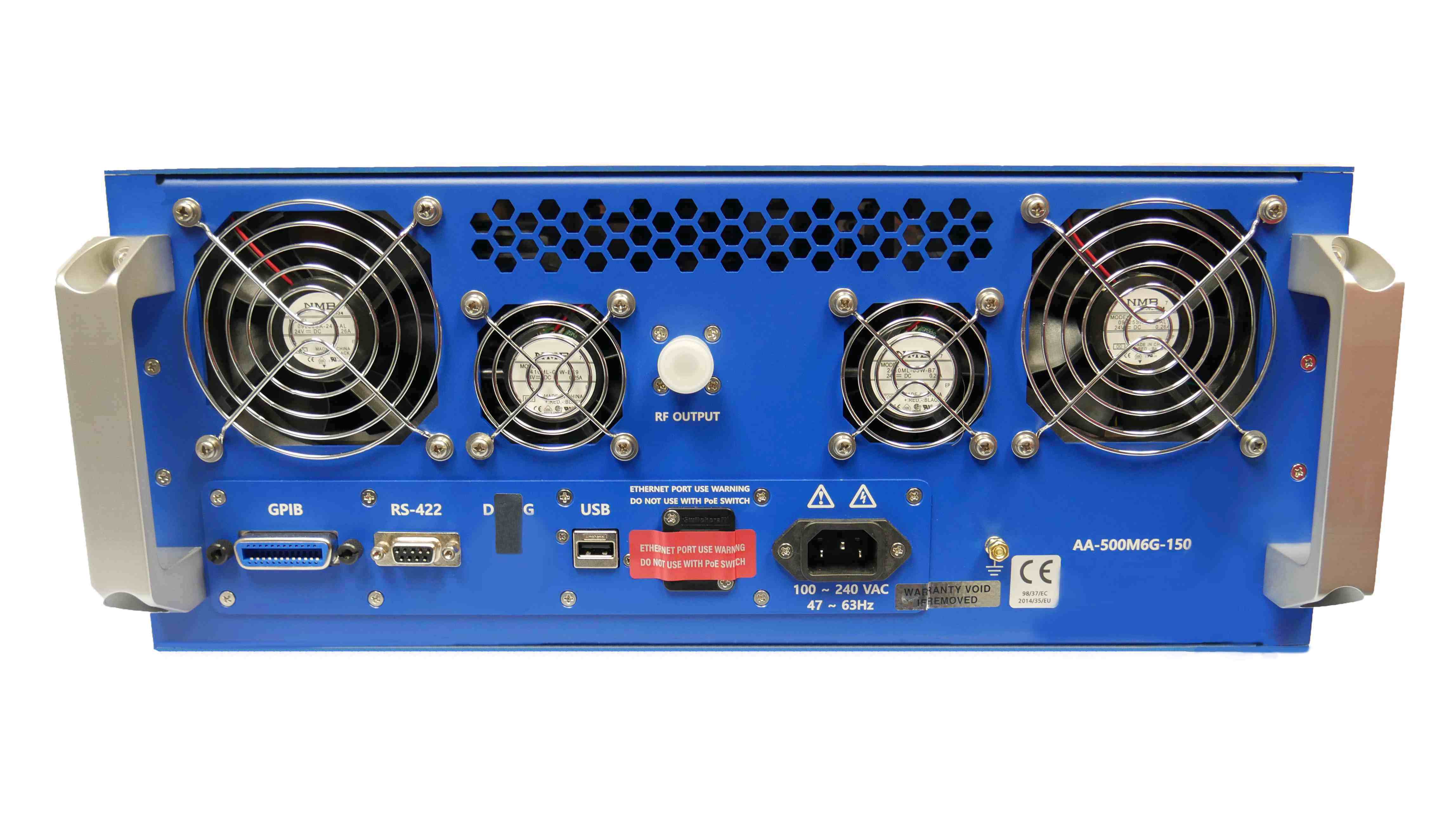

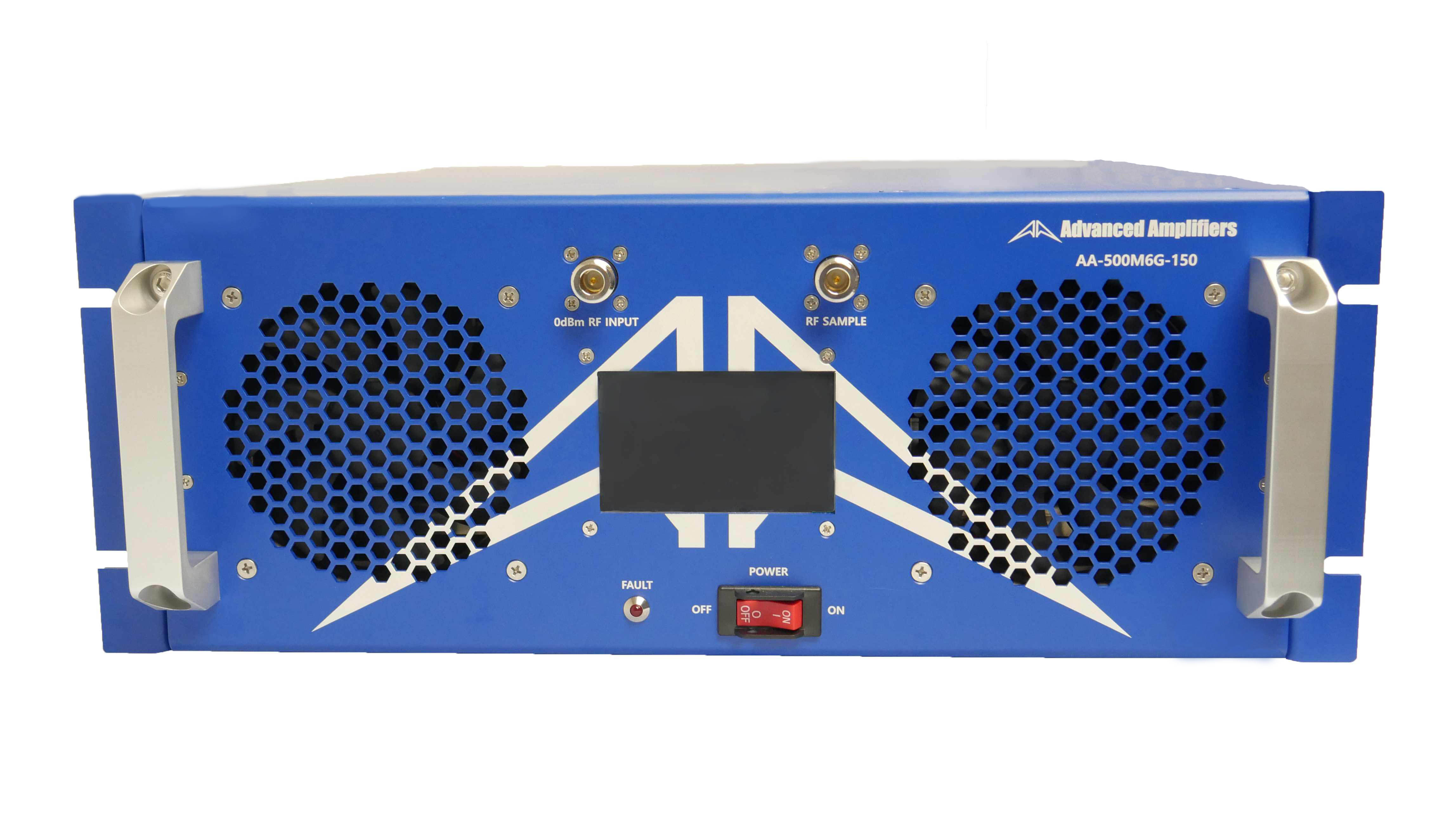

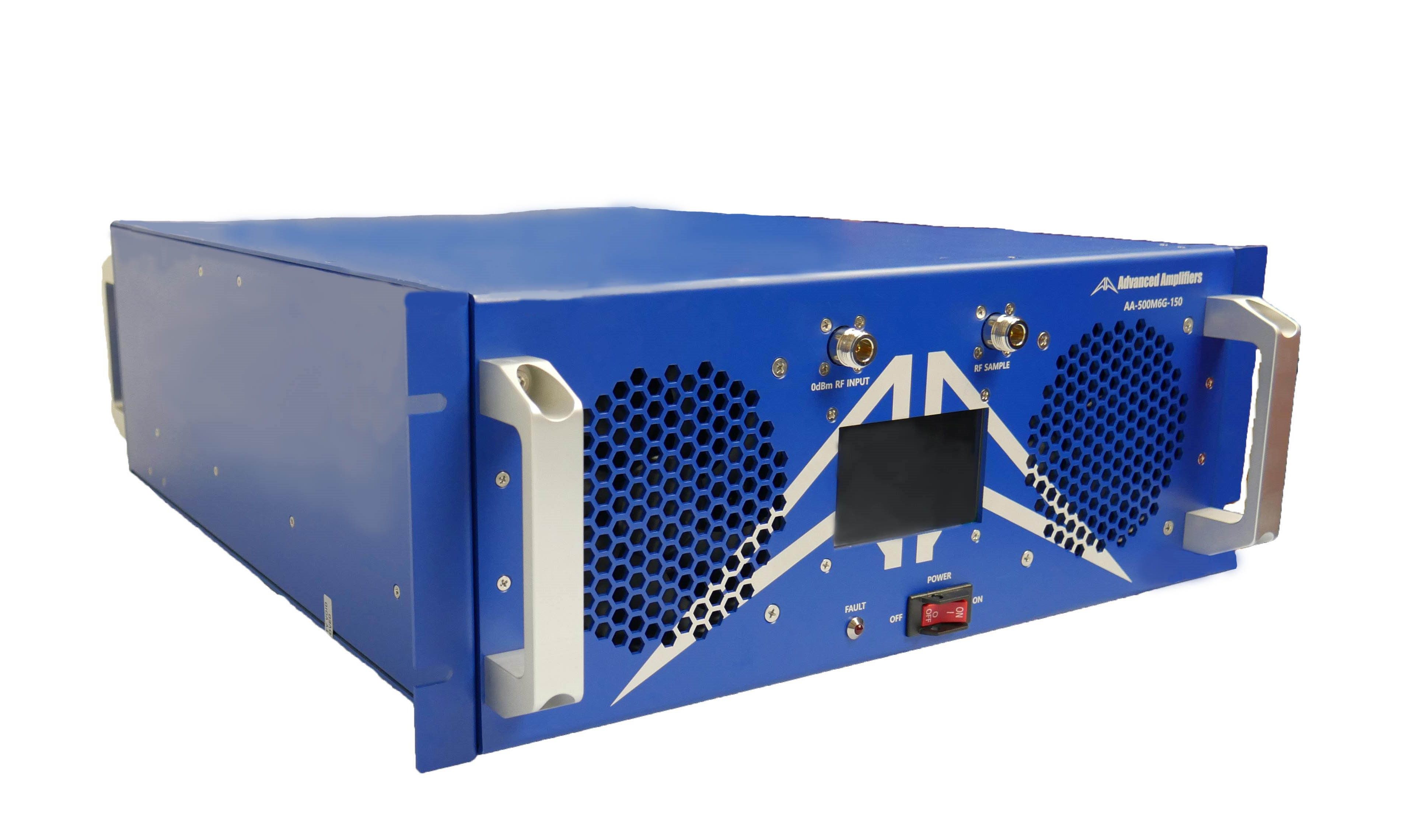

Advanced Amplifiers AA-500M6G-150 Solid-State RF Amplifier | 500 MHz - 6 GHz, 150 W

The Advanced Amplifiers AA-500M6G-150 Solid-State RF Amplifier has a frequency range of 0.5 to 6 GHz, an output power of 150 W, and more. With a voltage range of 100 to 240 VAC and a 1-phase input, the AA-500M6G-150 model is the ideal model for a variety of testing requirements. The device is user-friendly and has an innovative design.

Product Info Related Products

Electrical Specifications
Parameter	Specification	Notes
Operating Frequency Range	500 MHz - 6 GHz
Power Output @ Psat	150 Watt Min	CW or Pulse
Power Output @ P1dB	100 Watt Min
Power Gain	53 dB Min	0 dBm or less for rated power
Power Gain Flatness	4.0 dB p-p Typ	Constant input power
Input Return Loss	-10 dB Max
2-Tone Intermodulation (IMD)	<-30 dBc Typ	42dBm/Tone, Δ = 1MHz
Harmonics	<-20 dBc Typ	At rated output
Spurious	-60 dBc Max	Non-harmonic
Operating Voltage	100 - 240 VAC	47 - 63 Hz
Power Consumption	1400 Watt Max	At rated output
Load VSWR Protection	4:1: Max	Foldback @ preset limit
Sample Port	-50 dB	N-Female

Environmental Characteristics
Parameter	Specification	Notes
Operating Ambient Temperature	0 to +50°C
Storage Temperature	-40 to +85°C
Relative Humidity	Up to 95%	Non-condensing
Altitude	3000 meters
Shock & Vibration	Normal Transport

Frequency range of 0.5 to 6 GHz
Output power of 150 W
Voltage range of 100 to 240 VAC
1-phase input
User-friendly and innovative design
