Advanced Amplifiers AA-10M1G-100 Solid State Amplifier | 10 - 1000MHz, 100W

The Advanced Amplifiers AA-10M1G-100 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 10 - 1000MHz and generates 100W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-10M1G-100 has a power gain of 50 dB minimum and operates with an input of 100 – 240 VAC 1-phase (700W).

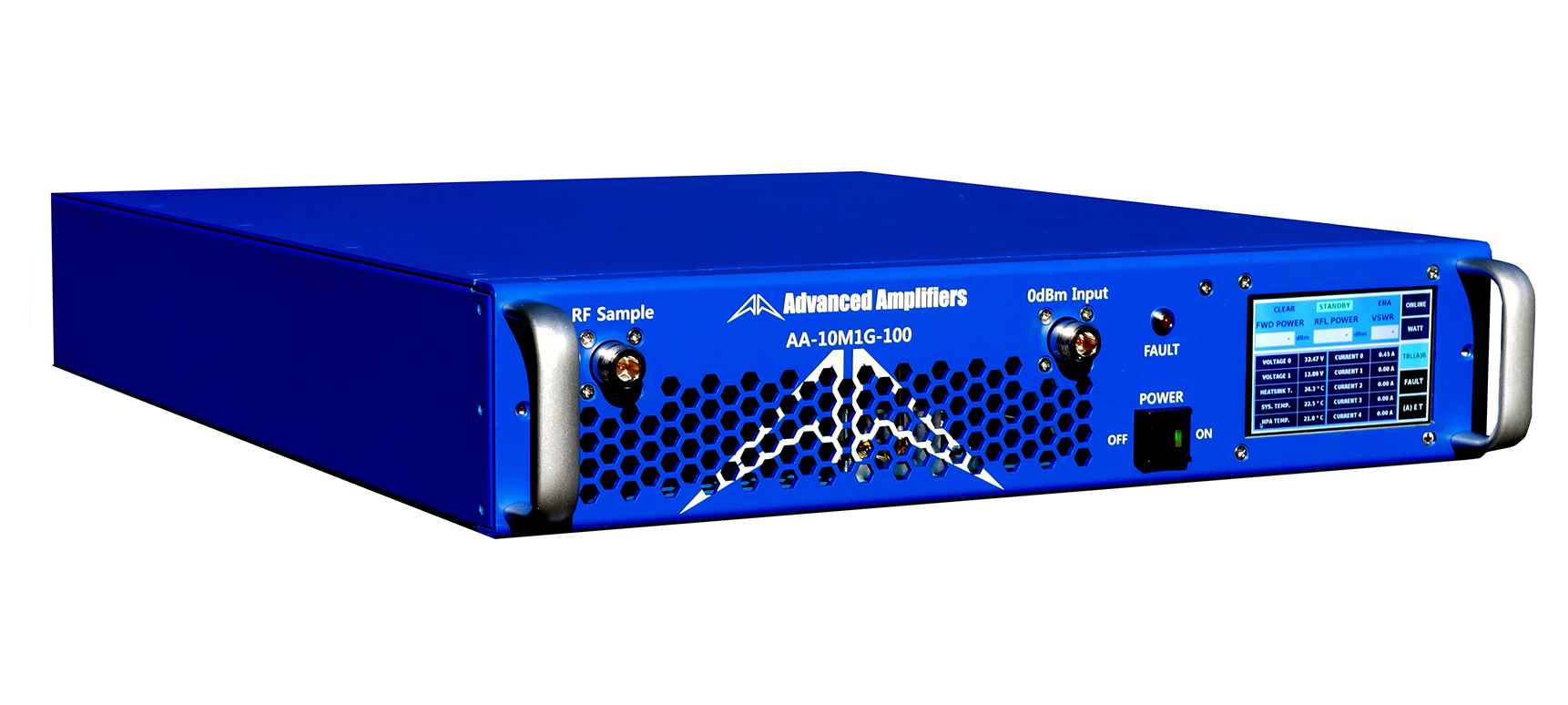

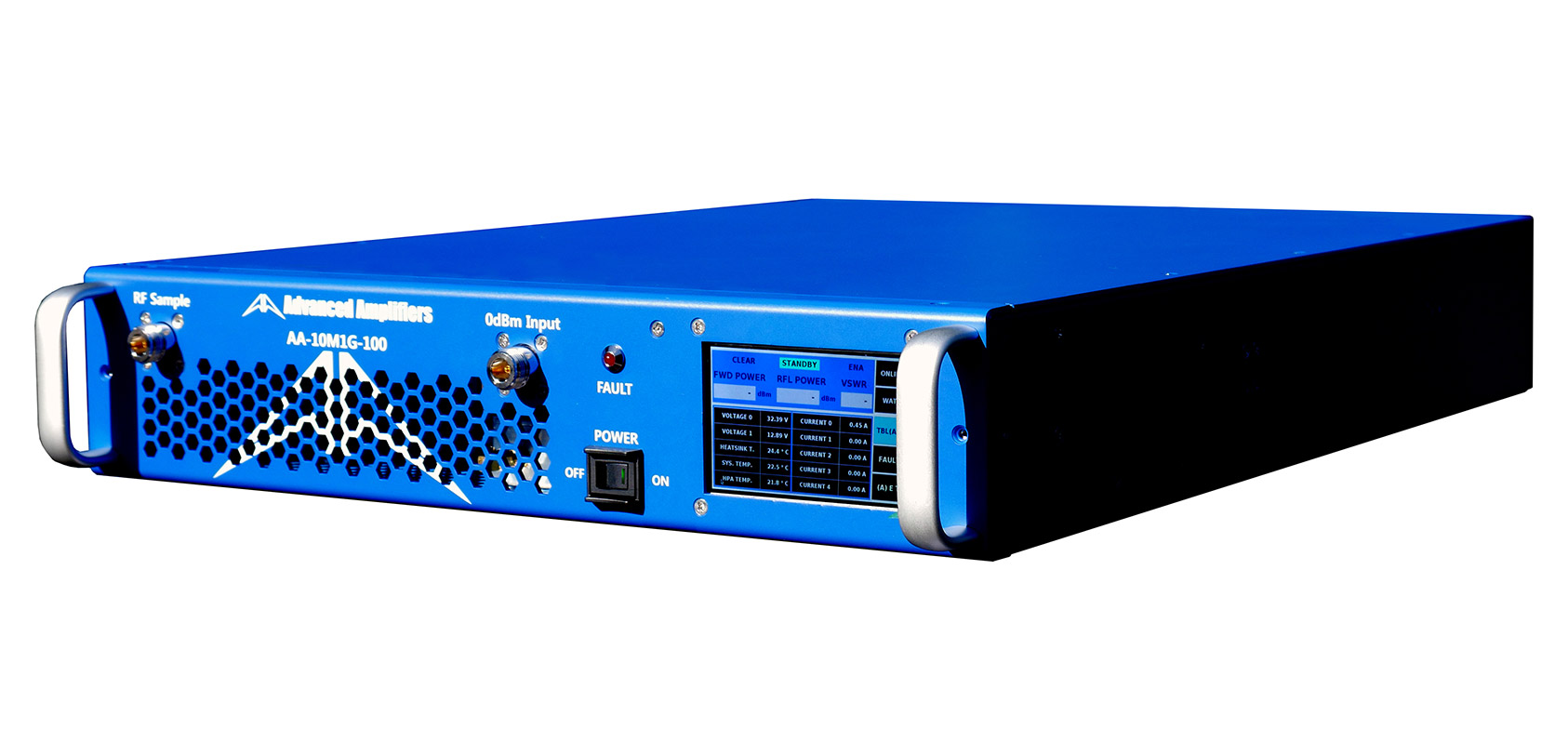

The AA-10M1G-100 is lightweight and has a low-profile (2U) build, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifier AA-10M1G-100 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.

Product Info Related Products

Parameter	Specification	Notes
Operating Frequency Range	10 - 1000 MHz
Power Output	100 Watt Min
Power Gain	50 dB Min
Power Gain Flatness	4.0 dB p-p Max
Input Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	30 dBc Typ	40dBm/Tone, Δ = 1MHz
Harmonics	>25 dBc Typ	At Rated Pout
Non Harmonics Spurious	60 dBc Min	Non Harmonics
Operating Voltage	100 - 240 VAC
Power Consumption	700 Watt Max	At rated Pout
Max Input Power	+8 dBm	Without damage
Load VSWR Protection	∞: 1
Operating Ambient Temperature	0 to +50 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non Condensation
Dimensions W x H x D	430 x 88 x 562 mm	2U
Weight	12 kg.

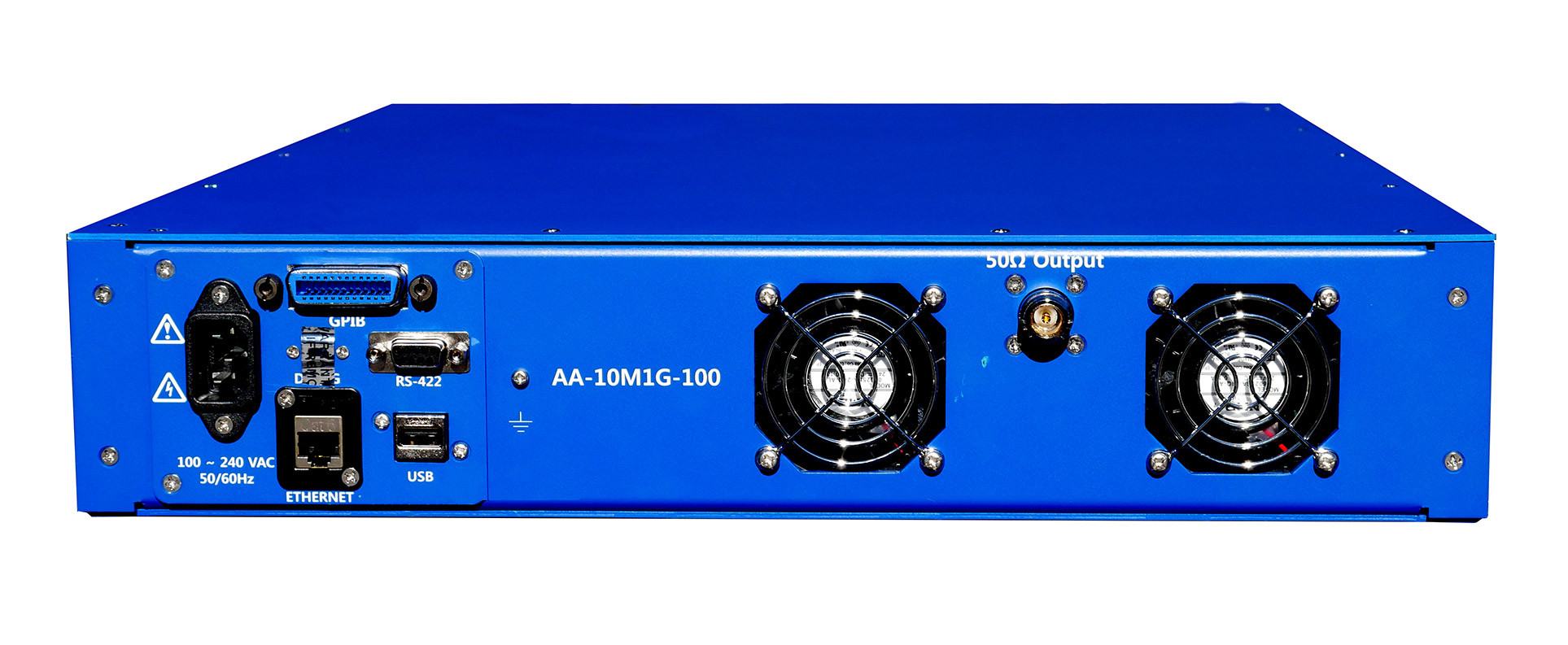

RF Connectors In/Out	Type-N Female	Front Panel Standard
AC Power / Interface Connector	IEC 60320-C14 / 9-Pin D-Sub
Cooling	Built in Fan Cooling
OPTIONAL: Digital Monitor & Control FWD, REV, VSWR, GAIN, ALC, V & I, TEMP	Ethernet RJ-45 TCP/IP, RS422/485	Remote Bluetooth application
