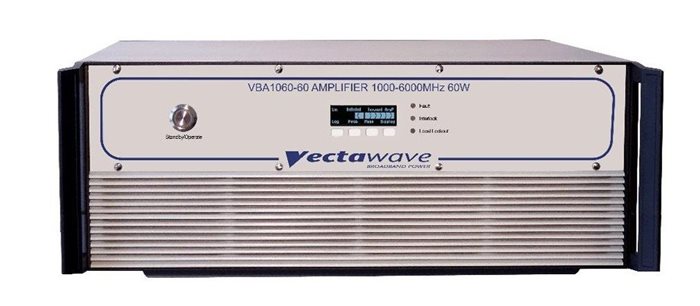

Vectawave VBA1060-60 CW Amplifier | 1 GHz - 6 GHz, 60W

The Vectawave VBA1060-60 is a class A RF amplifier with a frequency range of 1 GHz to 6 GHz and a rated output power of 60W. This device offers low distortion and a tolerance of 100% mismatch without foldback. It has a gain of 49 dB, offering harmonic suppression better than -20 dBc at rated linear power, while supporting rack-mount configurations. Applications for this amplifier include EMC testing, general laboratory use, and environments that need high reliability under mismatch conditions.

Product Info Related Products

Frequency Range (instantaneous)	1 GHz - 60 GHz
Rated output power	60 W

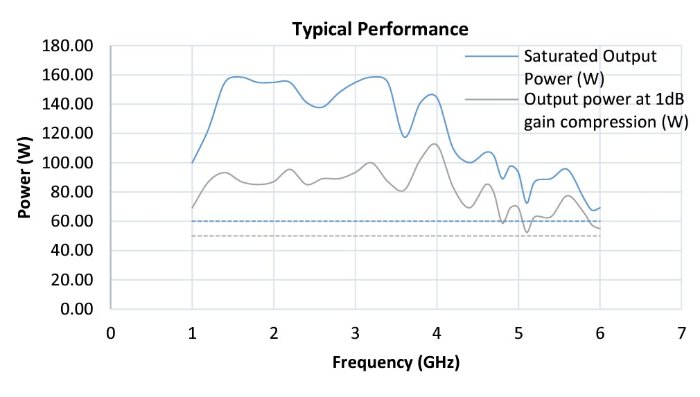

Output power at 1 dB gain compression	50 W
Gain	49 dB Min
Third order intercept point	58 dBm
Output impedance	50 Ohms
Stability	Unconditional
Output VSWR tolerance	Infinity any phase
Input VSWR	2:1 (Max)
Supply voltage	100 - 240 VAC (±10%)
Supply frequency range	45 - 63 Hz
Supply power	1.5 kVA
