Tescom TC-5970B/C Shield Box

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Larger

SKU: TESC-TC-5970C

Categories

RF Enclosures

Documents

Datasheet

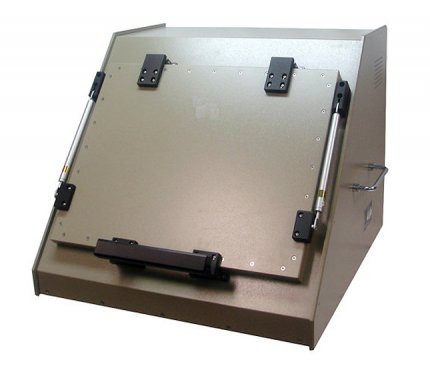

The Tescom TC-5970B/C Shield Box provides RF radiation shielding for testing medium and large size wireless devices for engineering, manufacturing and service. TC-5970B/C Shield Box models are designed with an easy opening/closing of door for easy access. The Tescom TC-5970B/C Shield Box provides EMI filters on all data and DC lines and provides customizable data connections. Tescom TC-5970B/C models have an external dimension of 25.98" (W) x 25.98" (D) x 20.91" (H).

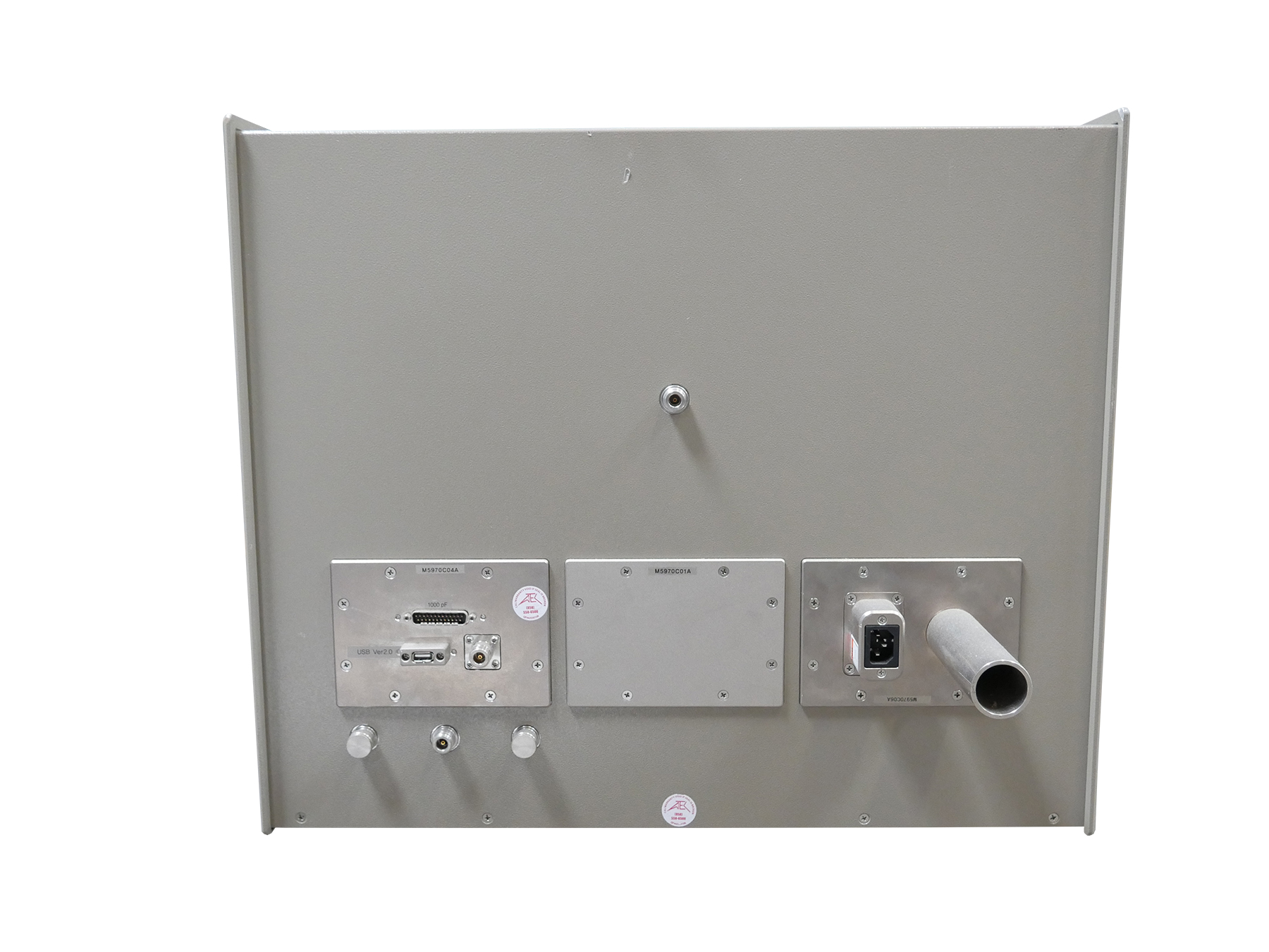

RF Connectors without module	6 N (f) outside and SMA (f) inside
Dimensions
Inside	530(W) x 540(D) x 420(H) mm, 195(D)mm top side
Outside	660(W) x 660(D) x 531(H) mm door closed. 890(H) mm

Tescom TC-5970B/C Shield Box
