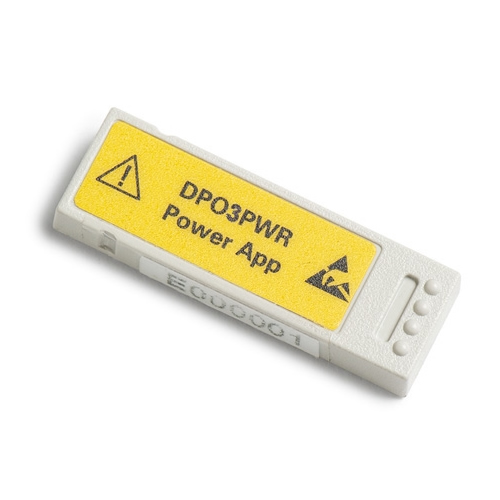

Tektronix DPO3PWR Power Analysis Module
The Tektronix DPO3PWR power analysis application module for the MSO/DPO3000 series allows designers who are unfamiliar with power measurements to have access to accurate and repeatable results. The user-friendly interface of the Tektronix DPO3PWR gives users data that a power supply expert would be familiar with processing. The Tektronix DPO3PWR has a switching component analysis with switching loss measurements and a safe operating area plot to add increased reliability and higher power conversion efficiency. Equipped with input analysis and output analysis with power quality, current harmonics, line switching ripple, and modulation analysis, the Tektronix DPO3PWR is perfect for ample measurement capabilities. The Tektronix DPO3PWR has pre-compliance testing to IEC standard EN61000 3-2 Class A. MIL Standard 1399 Section 300A and up to 400 harmonics.
| Power Quality Measurements | VRMS, VCrestFactor, Frequency, Irms, ICrestFactor, Apparent Power, Reactive Power, Power Factor, Phase Angle |
| Modulation Analysis | Graphical display of +Pulse width, -Pulse width, Period, Frequency, +Duty Cycle, and -Duty Cycle modulation types |
| Safe operating area | Graphical display and mask testiing of switching device safe operating area measurements |
| dV/dt and dl/dt measurements | Cursor measurements of slew rate |
| Instrument capability | All models of MSO/DPO3000 series |
- Deskew wizard ensures accurate, time-correlated results
- Modulation analysis
- Power loss measurement at switching device
- Characterization of power semiconductor devices
- Optimal drive characterization of synchronous rectifiers
- Measurement and analysis of ripple and noise
SKU: TEKT-DPO3PWR
