EMC Partner MIL-MG3 Military Test System

The EMC Partner MIL-MG3 Military Test System is an adaptable piece of equipment that allows users to test for a wide range of impulses and standards. The MIL-MG3 uses various modules that are easily changed to conduct tests for voltage spike, bulk cable injection, and damped sinusoidal transient pulses. When evaluating for those pulses, the military test system can confirm that equipment meets the following standards: Airbus ABD0100-1-8, MIL-STD-461/CS116, MIL-STD-461/CS117, MIL-STD-461/CS106, MIL-STD-461/CS115, MIL-STD-1275B, and STANAG 4239.

Even with that wide array of modules and pulses for tests, the EMC Partner MIL-MG3 Military Test System has an easy set-up and calibration. The device uses an intuitive touch display and 6 BNC connectors to simplify testing and input controls. Users will find it's easy to test for the various waveforms possible with the MIL-MG3, like damped oscillation, voltage spike, ringwave, and burst.

Product Info Related Compliance Standards Related Products

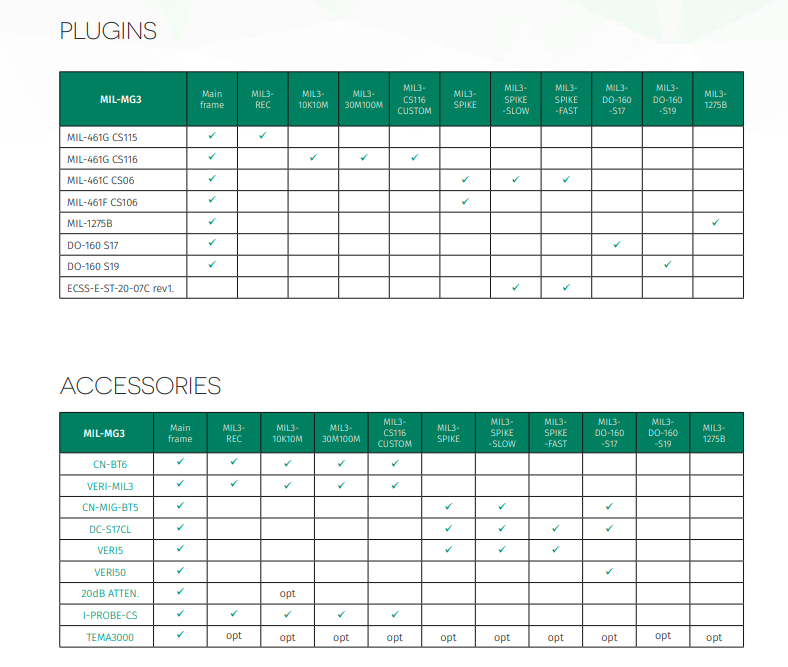

Plugin Module	Spec	Description
MIL3-REC	Standard	MIL-STD-461, CS115
	Test level into 100 Ω	1 – 10 A ± 10 % , adjustable
	Waveform	rectangular pulse
	Pulse rise and fall time	< 2 ns
	Pulse duration	≥ 30 ns
	Repetition rate	max. 33 Hz
	Requires	CN-BT6, VERI-MIL3
	Optional	I-PROBE-CS
MIL3-10K10M	Standard	MIL-STD-461, CS116 (10 kHz – 10 MHz)
	Test level into 100 Ω	@ 10 kHz: 0.02 – 0.22 A ± 10 %, adjustable
	Test level into 100 Ω	@ 100 kHz: 0.2 – 2.0 A ± 10 %, adjustable
	Test level into 100 Ω	@ 1 MHz: 1 – 12 A ± 10 %, adjustable
	Test level into 100 Ω	@ 10 MHz: 2 – 12 A ± 10 %, adjustable
	Waveform	damped oscillation@10k,100k,1MHz,10MHz ±10%
	Damping factor (Q)	15 ± 5 for all frequencies
	Repetition rate	max. 2 Hz for all frequencies
	Coupler for all frequencies	CN-BT6
	Calibration fixture all freq	VERI-MIL3
	Optional	I-PROBE-CS, 20dB ATTENUATOR
MIL3-30M100M	Standard	MIL-STD-461, CS116 (30 MHz – 100 MHz)
	Test level into 100 Ω	@ 30 MHz: 2 – 12 A ± 10 %, adjustable
	Test level into 100 Ω	@ 100 MHz: 1 – 6 A ± 10 %, adjustable
	Waveform	damped oscillation@30MHz,100MHz ±10%
	Damping factor (Q)	15 ± 5 for all frequencies
	Repetition rate	max. 2 Hz for all frequencies
	Coupler for all frequencies	CN-BT6
	Calibration fixture all freq.	VERI-MIL3
	Optional	I-PROBE-CS
MIL3-CS116 CUSTOM FREQUENCY	Standard	MIL-STD-461, CS116
	Test level into 100 Ω	according to Fig. CS116-2
	Frequency	choose any frequency from 10 kHz to 30 MHz
	Waveform	damped oscillation
	Zout	≤ 100 Ω
	Damping factor (Q)	15 ± 5 for all frequencies
	Repetition rate	max. 2 Hz for all frequencies
	Coupler for all frequencies	CN-BT6
	Calibration fixture all freq.	VERI-MIL3
	Optional	I-PROBE-CS
MIL3-SPIKE	Standard	MIL-STD-461F CS106, MIL-STD-461C CS06
	Output impedance	< 2 Ω
	Test level into 5 Ω	100 – 500 V ± 10 % , adjustable
	Waveform	voltage spike
	Pulse rise time	1.5 µs ± 0.5 µs
	Pulse front time	3.5 µs ± 0.5 µs
	Pulse duration	5 µs ± 22 %
	Voltage sag amplitude	≤ 120 V @ 400 V test level
	Voltage sag duration	≤ 20 µs @ 400 V test level
	Repetition rate	max. 10 Hz
	Synchronization	0 – 359° ± 5°, 1° step
	Requires	CN-MIG-BT5, VERI5, DC-S17CL
MIL3-SPIKE-SLOW	Standard	MIL-STD-461C CS06, ECSS-E-ST-20-07C Rev. 1 CS, power leads, transients
	Waveform duration	10 μs ± 20 %
	Polarity	positive and negative
	Repetition rate	0.1 – 60 s
	Synchronization	0 – 359° ± 5°
	Synchronization input	50 – 280 V, 40 – 800 Hz
	Serial injection
	Test level	20 – 300 V ± 10 %
	Zout	< 2 Ω
	EUT current serial inj.	max. 1280A @50Hz, 160A @400Hz, 80A @800Hz
	Requires	CN-MIG-BT5, VERI5
	Optional	DC-S17CL (see EUT supply limits)
	Parallel Injection
	Test level	20 – 500 V ± 10 %
	Zout	< 1 Ω
	EUT voltage parallel inj.	max. 250V @DC - 60Hz, 60V @60 - 400Hz, 30V @400 - 800Hz
	Requires	VERI5
	Optional	DC-S17CL (see EUT supply limits)
MIL3-SPIKE-FAST	Standard	MIL-STD-461C CS06, ECSS-E-ST-20-07C Rev. 1 CS, power leads, transients
	Waveform duration	0.15 μs ± 20%
	Polarity	positive and negative
	Repetition rate	0.1 – 60 s
	Synchronization	0 – 359° ± 5° up to 400 Hz
	Synchronization input	50 – 280 V, 40 – 800 Hz
	Serial injection
	Test level	20 – 400 V ± 10 %
	Zout	< 5 Ω @ standard test level
	EUT current serial inj.	max. 32 A @ DC – 800 Hz
	Requires	VERI5
	Optional	DC-S17CL (see EUT supply limits)
	Parallel injection
	Test level	20 – 400 V ± 10 %
	Zout	< 5 Ω @ standard test level
	EUT voltage parallel inj.	max. 250 V @ DC – 800 Hz
	Requires	VERI5
	Optional	DC-S17CL (see EUT supply limits)
MIL3-DO-160-S17	Standard	DO-160 Section 17
	Output impedance	50 Ω ± 10 %
	Test level into 50 Ω	50 – 1200 V ± 10 % , adjustable
	Waveform	voltage spike
	Pulse rise time	1 – 2 µs ± 30 %
	Pulse duration	> 10 µs
	Repetition rate	max. 2 Hz
	Synchronization	0 – 359° ± 5°, 1° step
	Requires	CN-MIG-BT5, VERI50, DC-S17CL
MIL3-DO-160-S19	Standard	DO-160 Section 19 – spikes/burst
	Resistance	175 Ω ± 10 %
	Inductance	1.5 H ± 10 %
	Test level	≥ 600 V
	Waveform	voltage spikes/burst
	Spike repetition period	in the range 0.2 – 10 µs
	Burst total duration	in the range 50 - 1000 µs
	Event repetition	0.1 – 60 s, adjustable
	Test duration	1 – 65535 s
	Included	cables for coupling 0.5 m, 1.0 m, 2.0 m
MIL3-1275B	Standard	MIL-STD-1275B, figure 10
	Test level	100 – 1000 V ±10 %, in open circuit
	Waveform	ring wave
	Rise time 10 – 90 %	< 50 ns
	Oscillation frequency	100 – 500 kHz
	Pulse repetition	max. 2 Hz
	DC	28 V / 30 A
	AC	230 V / 10 A or 115 V / 25 A @ 50/60 Hz

General Specifications
Operating System	EPOS proprietary firmware
Synchronization on Signals	40 – 800 Hz
Synchronization Source	External, 50 – 280 V
Impulse Polarity	Positive Negative Electronic Switching
Programmable Connectors	6 BNC connectors
Programmable Input Max. Voltage	Low range: 0 – 1.5 V High range: 2.3 – 24 V
Power Consumption	On < 150 VA, standby < 15 VA
