Cutler Hammer MTK2000 Magnum Trip Unit Test Kit
Cutler Hammer 1232C50G05 Secondary Injection Test Kit
GE GTUTK20 EntelliGuard Digital Test Kit
- Operation from a 100-240VAC 50/60 Hz Universal plug supply or two 9-volt alkaline batteries (batteries not supplied).
- Provides power to the trip unit for viewing and setting setpoints with less than 15% load on the breaker or if the replaceable Trip Unit Battery needs replacing.
- Verification of metering (phase simulation)
Cutler Hammer 70C1056G54 Circuit Breaker Test Set
Siemens PTS-5 Secondary Injection Test Set
Cutler Hammer 1287C56G02 Secondary Injection Test Kit
Cutler Hammer 140D481G02R DS Breaker Test Kit
- Accommodate the lower power requirements of microprocessor
- Permits checking of all Trip Unit phase input circuits
- Pickup value accuracy ±10%
Merlin Gerin ME Secondary Injection Test Set

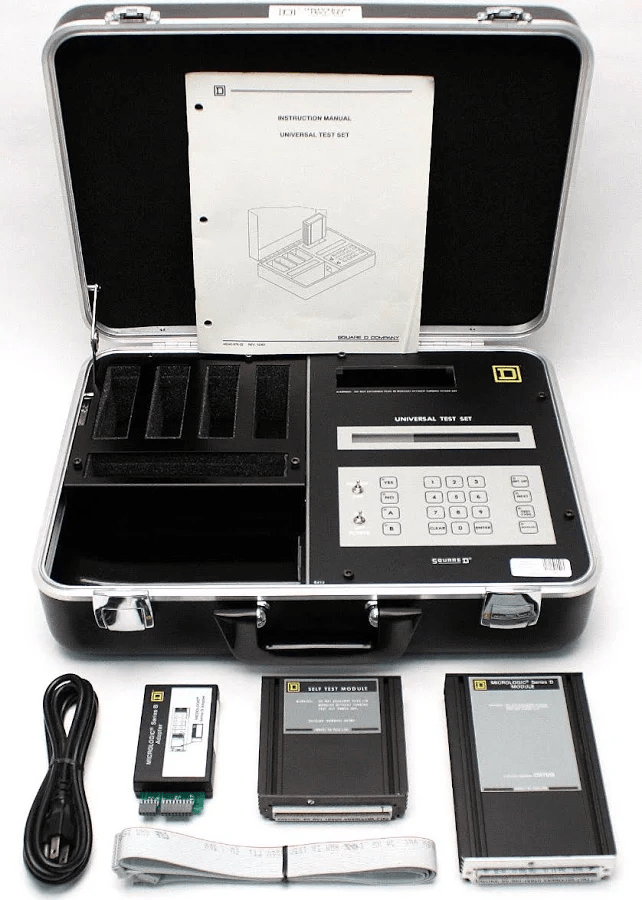

Schneider Electric / Square D UTS3 Circuit Breaker Universal Test Set
- Self-test module (CBTMT)
- Standard and full-function Micrologic Series B module (CBTMB) includes rating plug adapter
- Power cord
GE TAK-TS1 Test Set
ABB 504 Power Shield Test Set
Madison Testing MadTest DSM4i1 Adapter
- DS/DSII 9 pin connector 4 feet in length flexed umbilical cord
- 14 pin connector 4 feet in length flexed umbilical cord
- 2 pin auxiliary power module connector 6 feet in length flexed umbilical cord
Carriere STS100 Secondary Injection Relay Tester
- Provides the following output ranges 0-2 Amps continuous 0-8 Amps for 24 seconds on, 120 Seconds off 0-10 Amps for 12 seconds on, 60 seconds off 0-12 Amps for 0.6 seconds on, 3 seconds
- 0-2 Amps continuous
- 0-8 Amps for 24 seconds on, 120 Seconds off
Cutler Hammer MTK1000 Magnum Trip Unit Test Kit
- Compact design less than 2lbs in weight.
- Pushbutton operated faceplate display with durable, polycarbonate protective film.
- Two line, digital LCD display screen with antiglare coating.

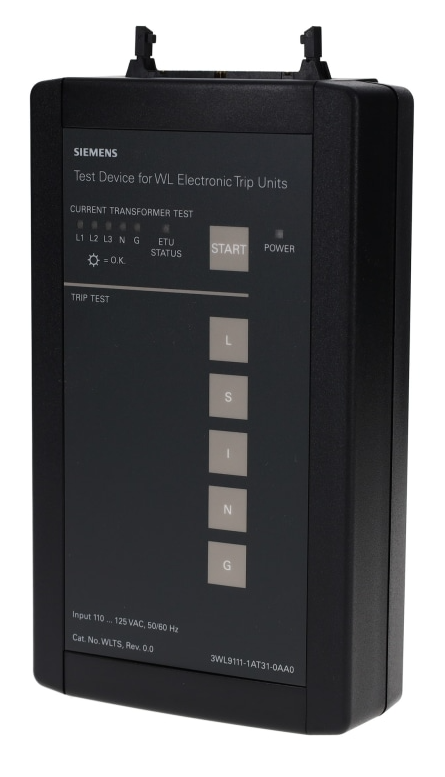

Siemens WLTS Secondary Current Injection Test Set
Madison Testing DMR5I1 Multifunction Trip Unit Adapter
- Easy connect to any configuration
- Budget-friendly solution for testing aftermarket Digitrip RMS retrofitted trip units
- Offers 32 VDC and 120 VAC power source for OPTIM 750 & 1150, and GO3 base unit
General Electric TVTS1 Secondary Injection Test Set
- TP4VT
- TP9VT
- T4VT
Cutler Hammer 140D481G03 DS Breaker Test Kit
- Short delay
- Ground test
- Circuit selector
Siemens PTS-4 Portable Test Set
- Input - 120 Volts, 50 or 60 Hz, 15 Amps Maximum
- Output - 0 to 120 Volts, 15 Amps Maximum
- Maximum continuous current on high scale 1.0 Amp
GE TVRMS2 Digital Test Kit
- Operation from 120 Vac or six D-cell batteries.
- Trip Unit testing without de-energizing the breaker or removing the Trip Unit from the breaker.
- Verification of switch settings on Power+, RMS-9, and Epic Trip Units.
Cutler Hammer 1232C50G10 Secondary Injection Test Kit
Federal Pioneer DDT-USD Secondary Current Injection Relay Tester
- Battery powered, portable test unit.
- Completely self contained.
- Capable of testing in AC and DC modes.
Schneider Electric / Square D UTA Test Set for PowerPack H-, J- and L-Frame Circuit Breakers
Siemens ELTPHB Test Kit
Cutler Hammer Digitrip OPTIM Trip Unit System
- Programmable protection and coordination
- Trip early warnings
- System diagnostics
