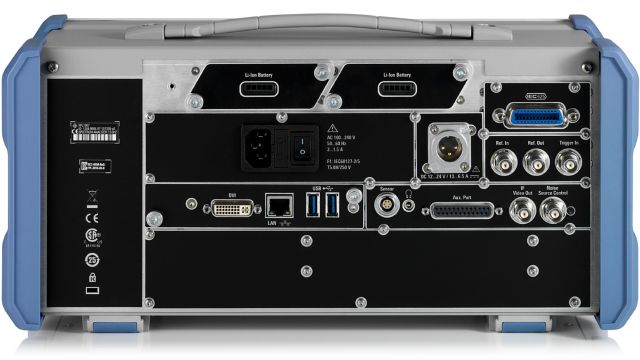

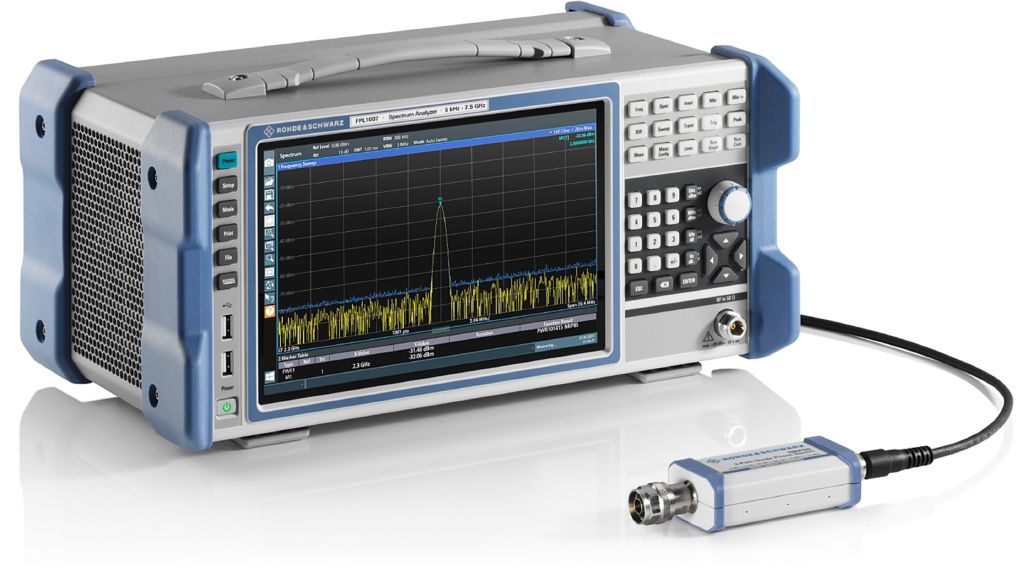

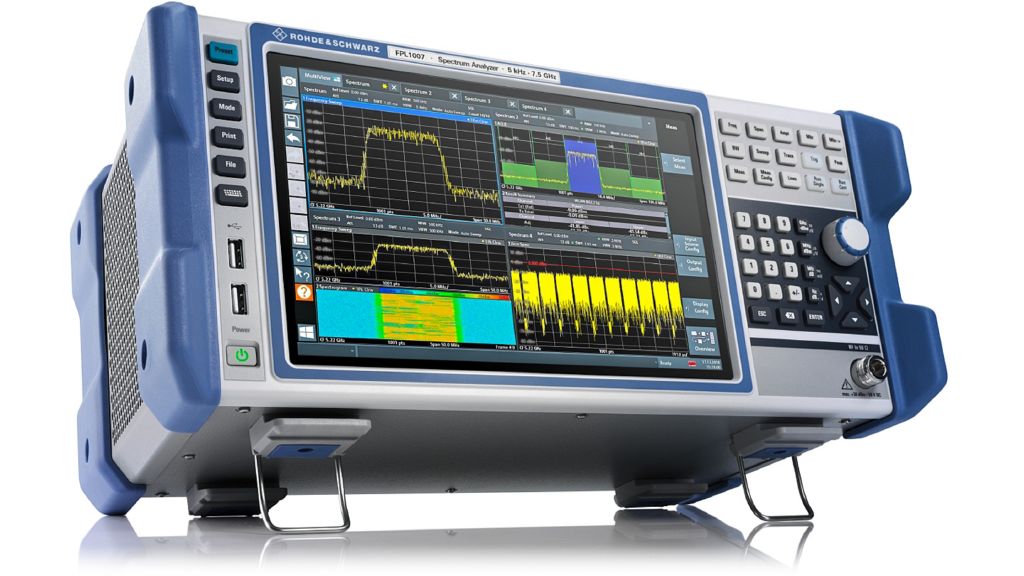

Rohde & Schwarz FPL1007 Spectrum Analyzer

The Rohde & Schwarz FPL1007 Spectrum Analyzer is part of the FPL1000 Series. The FPL1007 is a multifaceted device with a frequency range of 5 kHz to 7.5 GHz. With an intuitive and high-resolution display and easy-to-use features, the FPL1007 Spectrum Analyzer is the ideal device for a variety of testing requirements. The FPL1007 can complete spectrum analysis and measure scalar frequency response, noise figure and gain, and more. The Rohde & Schwarz FPL1007 Spectrum Analyzer is a user-friendly measurement tool that is durable and portable.

Product Info Related Products

Frequency range	5 kHz to 7.5 GHz
Frequency resolution	0.01 Hz
Resolution bandwidth (–3 dB)	Sweep filters 100 kHz to 10 MHz, in 1/2/3/5 sequence FFT filters 1 Hz to 50 kHz, in 1/2/3/5 sequence
I/Q demodulation bandwidth	12.8 MHz
Total measurement uncertainty	1 MHz ≤ f < 3 GHz, 0.5 dB 3 GHz ≤ f < 7.5 GHz, 0.8 dB 7.5 GHz ≤ f ≤ 14 GHz, 1.2 dB 14 GHz ≤ f ≤ 26.5 GHz, 1.8 dB
Phase noise	f = 1 GHz, 10 kHz frequency offset –108 dBc (1 Hz) (typ.)
Display	10.1" high-resolution display 1280×800 pixel resolution
Model	R&S®FPL1000 Series R&S®FPL1007

Lightweight with small footprint
Gated sweep, narrowband resolution filters and spectrogram measurements as standard
One instrument for multiple applications
Solid RF performance
Intuitive user interface
Fully portable
Flexible arrangement of results and MultiView
High-resolution display
