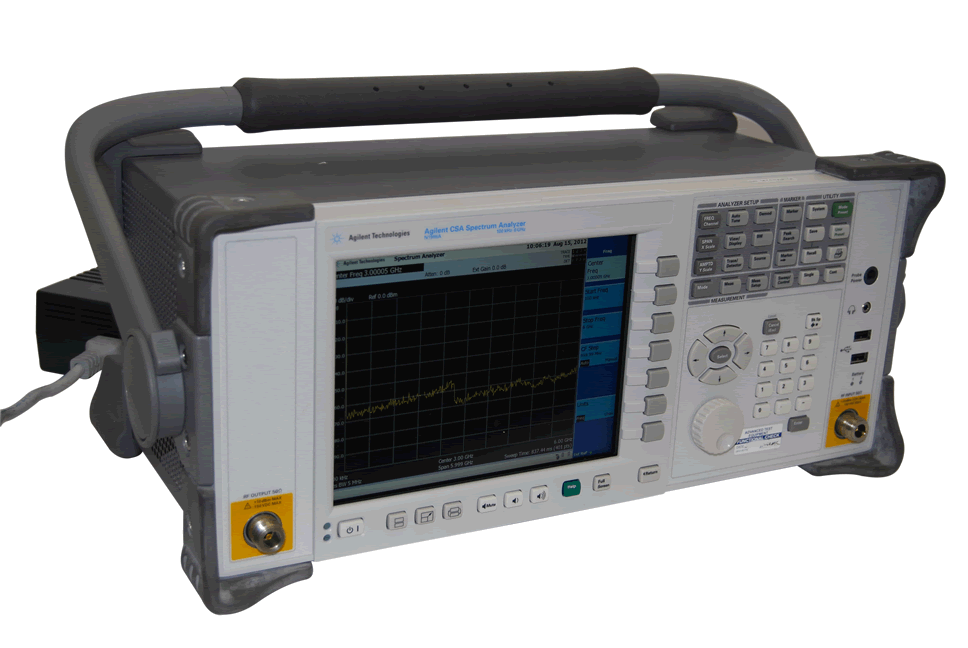

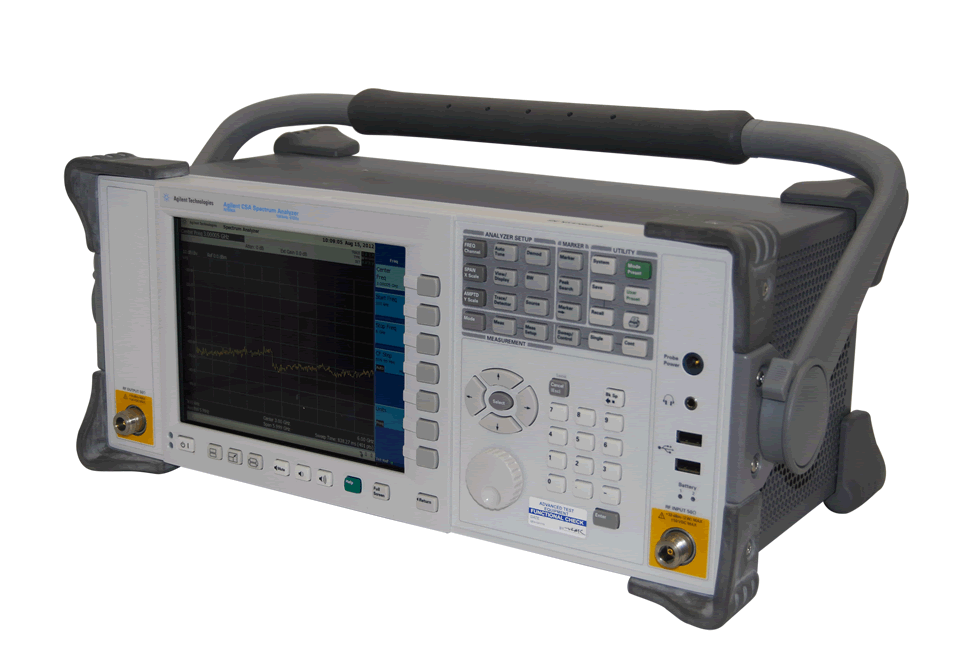

Keysight N1996A-506 CSA Spectrum Analyzer, 100 kHz - 6 GHz

The Keysight N1996A offers spectrum analysis and monitoring, general frequency power measurement, and stimulus response analysis as a single solution in production, development, and outdoor applications. The N1996A portable CSA spectrum analyzer operates within the 100 kHz - 6 GHz range and provides high performance in a compact housing unit. This wide dynamic range comes standard in an affordable model within a highly versatile class of spectrum analyzers. Distortion performance is unmatched and is complimented with exceptional noise performance and 10 Hz resolution bandwidth.

Advanced Test Equipment Rentals has experts ready to answer any questions about the Keysight N1996A CSA Spectrum Analyzer.

Product Info Related Products

1 dB electronic step input attenuator
10 Hz to 5 MHz RBW standard, 10% adjustable
to 200 kHz, 1 Hz to 50 MHz VBW USB and LAN standard

Frequency coverage:

Frequency range: 100 kHz to 3 or 6 GHz

Signal source: 10 MHz to 3 or 6 GHz
Preamplifier to 3 or 6 GHz

Performance:

DANL: -156 dBm/Hz, normalized to 1 Hz
Best-in-class dynamic range with +18 dBm TOI
Overall amplitude accuracy: ±0.5 dB

Compact Design:

Weight: 7.5 kg with built-in signal source, preamplifier, and VSWR bridge
Battery life: 2 hours (typical)
Brightest, highest resolution display in its class (21 cm XGA, 1024 x 768)
