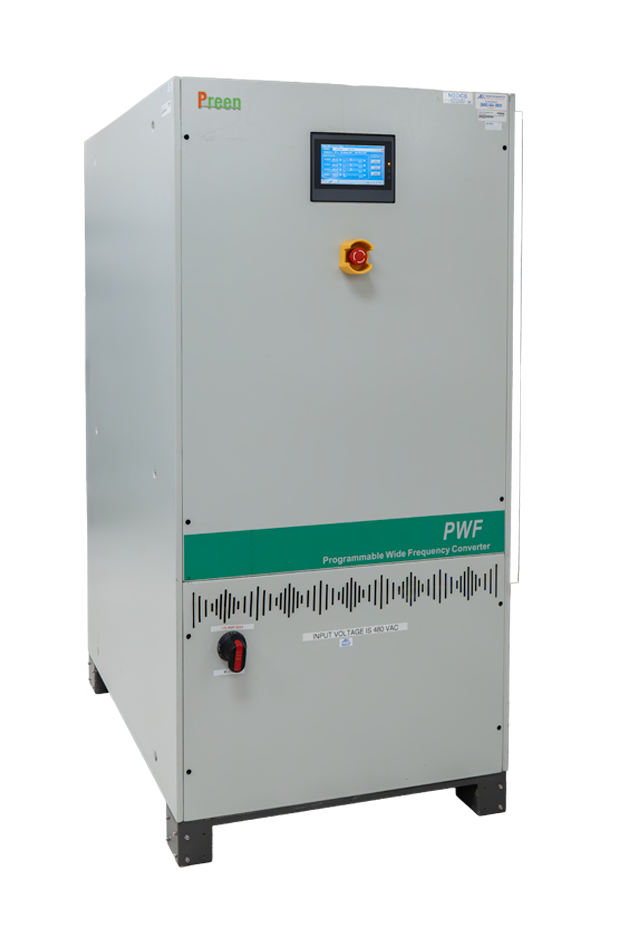

Preen PWF-L 33045 Programmable AC Power Source

The Preen PWF-L 33045 Programmable AC Power Source is a wide-frequency AC power supply with a capacity of 45kVA and a maximum current of 62.5A. This power-generating device features an output frequency ranging from 45-500Hz, an output voltage up to 300V and output power from 20-200kVA. PWF-L models are versatile in their programmable output voltage and frequency functions, with modes including generic, step change, gradual change and disturbance simulation mode to meet all your electrical system diagnostic needs. To identify faults in your electrical systems quickly, the Preen PWF-L 33045 offers an enhanced troubleshooting function which displays the fault code and corresponding message, which can be easily replicated into a USB memory stick for further survey of the issue. The multiple supported communication interface, with RS232, GPIB, LAN, USB and RS485 options available, is complimented by a touchscreen HMI. Eco-friendly with an innovative design, the PWF-L utilizes SMD technology and a high 90% power efficiency to save energy. The Preen PWF-L 33045 fulfills the requirements of aviation standards like Airbus ABD0100.1.8, Boeing 787-B3-0147 and MIL-STD-704.

Product Info

Wide-range output frequency for aerospace and military applications
Three phase independent control to set voltage of each phase
Phase angle control to set angle between each phase
Programming Sequence Function: STEP and GRADUAL modes allow users to easily set sequences of start/ end voltage, frequency and run time for testing purposes
Disturbance function to better simulate grid abnormality
Touch screen display for easy operation
Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with over 20 corresponding error codes and event log for easier trouble shooting
Standard RS232 and RS485 interfaces and optional GPIB interface available
Latest patented power module with high power density and swappable design for better reliability and serviceability
Optional soft start function to reduce inrush current from motor type UUT

SKU: PREE-PWFL-33045
