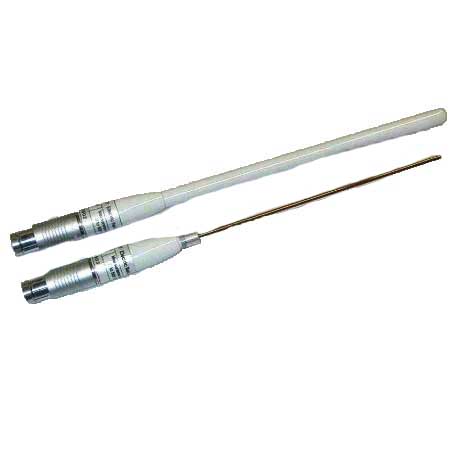

PMM EP-201 Isotropic E-Field Sensor
The PMM EP-201 is an isotropic E-field sensor suitable for proximity radiated immunity tests. Capable of measuring an electromagnetic field in the 60 MHz – 12 GHz range, the PMM EP-201 is ideal for a wide variety of testing environments. The PMM EP-201 isoptropic E-field sensor is perfect for testing leaks in microwave equipment, coaxial cables, shielded chamber door contacts, and research in a variety of scientific fields.
| Frequency range | 60 MHz – 12 GHz |
| Level range | 3 – 500 V/m |
| Overload | > 1000 V/m |
| Dynamic range | > 45 dB |
| Resolution | 0.1 V/m |
| Sensitivity | 8 V/m (instantaneous measurement with filter 10 Hz) |
| Volume sensor | 3 mm diameter sphere |
| Size tube | 180 mm length x 4 mm diameter |
| Size | 300 mm length x 18 mm diameter |
| Weight | 85 g |
- Frequency range 60 MHz - 12 GHz
- Range: 3 - 500 V / m
- Overload > 1000 V / m
- Dynamic > 45 dB
- Resolution: 0.1 V / m
- Sensitivity: 8 V / m (instantaneous measurement with 10 Hz filter) and 3 V / m (RMS or AVG 30 sec with 10 Hz filter)
