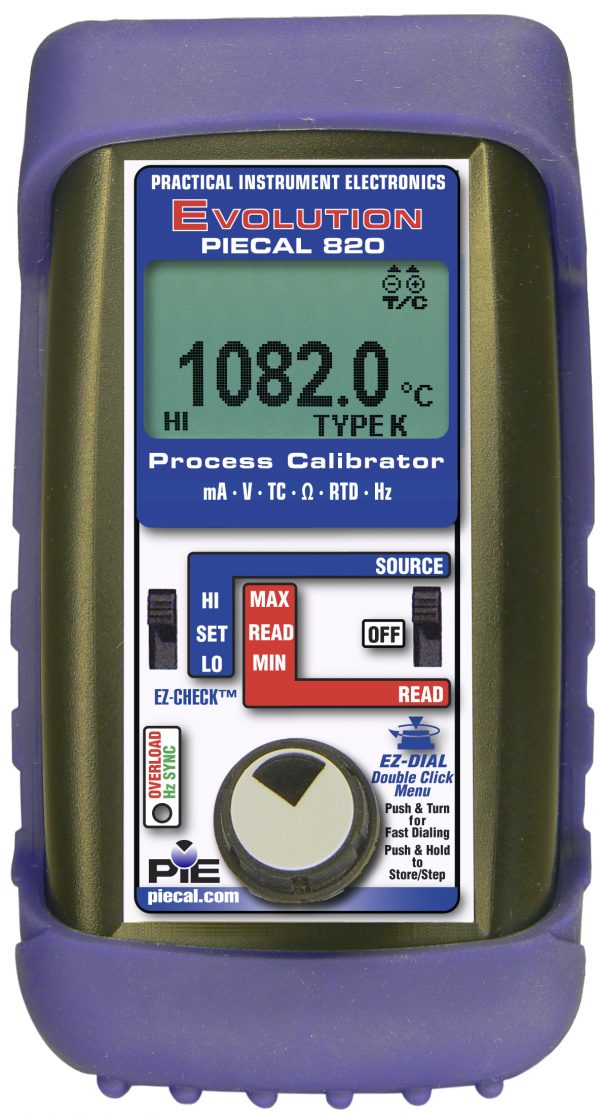

PIE Calibration 820 Multifunction Process Calibrator

The PIE Calibration 820 Multifunction Process Calibrator highlights six functions in one calibrator, including functions for milliamp, voltage, frequency, thermocouples, RTDs, and check continuity. The 820 model has a frequency range of 1 to 2000 CPM, 0.01 to 999.99 Hz, 0.1 to 9999.9 Hz, and 0.001 to 20.000 kHz. With the innovative EZ-DIAL and EZ-CHECK, the 820 Calibrator is easy to operate. The PIE Calibration 820 Multifunction Process Calibrator can calibrate directly in temperature (°C & °F) and offers functions like flow checkout and testing vibration systems.

Product Info

Milliamp and voltage	Source 0.00 - 24.00 mA, 0.00 - 10.25 VDC and 0.00 - 80.00 mV Read to 24.00 mA, 00.00 - 10.,25 VDC, 0.0 - 60.0 VDC, 00.00 - 80.00 mV Simulate 2 Wire transmitters Power up transmitters and loops with built-in 24 V power supply Simplify HART hook ups with built in 250 ohm resistor
Operating temperature	-20 to 60 °C (-5 to 140 °F)
Source V DC range and accuracy	-10.00 to 80.00 mV, ≤ ±(0.03 % of full scale) 0.00 to 10.25 V, ≤ ±(0.03 % of full scale +0.005 V)
Thermocouple source	Accuracy: ±(0.03% of full scale) Output impedance: <1 ohm Source current: >20 mA
Frequency range	1 - 2000 CPM, 0.01 - 999.99 Hz, 0.1 - 9999.9 Hz, 0.001 - 20.000 kHz
Dimensions (L x W x H)	5.63 x 3.00 x 1.60 in 143 x 76 x 41 mm
Weight	12.1 oz (0.34 kg)
