Megger SG15-1150M HV Cable Fault Locating System

The Megger SG15-1150M power cable fault locator system is designed to provide safe, quick, accurate, and easy fault locating performance. The SG15-1150M is typically used on 15/25 kV URD circuits which are made of solid dielectric cables (XLPE, EPR), are 2 to 3 miles (3 to 5 km) long, with a conductor size of up to 500 MCM (250 mm2 ). The unit features a tough, high quality stainless steel enclosure, rated IP64 (closed) and IP53 (open) for use in rough outdoor environments. The unit is available either mounted on a heavy-duty portable hand cart or permantly installed in a vehicle. It offers a complete fault locating approach: hipot testing, fault prelocating and pinpointing.

Dynatel 505 Portable Cable and Conductor Identifier

3M Dynatel 2573-iD Cable/Pipe/Fault and Marker Locator

Trace view mapping display mode
6 active frequencies for direct connect
4 induction frequencies with maximum allowed output power

3M Dynatel 2573 Cable / Pipe / Fault Locator

Trace view mapping display mode
6 active frequencies for direct connect
4 induction frequencies with maximum allowed output power

Dynatel 2273M

Locate cable and pipe path
Measure cable/pipe, or Sonde depth with the push of a button
Display relative signal current in the cable or pipe

3M Dynatel 2273 Pipe / Cable / Fault Locator

Four operator-selectable frequencies
Simultaneous signals
Fault-locate/cable-locate signals applied simultaneously

Dynatel 2250M Cable/Fault Locater System

A easy-to-use system that requires very little operator training
Trace a pipe or cable and locate markers along the way
M-iD versions locate and read/write to all EMS-RFiD markers

Dynatel 1420-iD Electronic Marker System Locator

Large backlit, high-resolution graphic display
Locator PC tools software
PC interface via standard RS232/USB

Megger EZ-Restore Cable Fault Locator

Has back-feed alert
Weighs less than 48.5 lbs
Offers unique USB load

High Voltage Inc. CDS-2010U Cable Fault Locator

Combination Hipot, Burner and Fault Locator
Constant energy at each output voltage setting
Adjustable thump (impulse) repetition rate, from 6 – 10 seconds

Megger PFL32M1500-EN Portable Cable Fault Location System

Portable, rugged fault locating systems
HV insulation testing to 20 kV
Proof/burn up to 20 kV, 115 mA

Megger MGFL100 Battery Ground Fault Locator

Alarms when the real fault is identified
Direct measurement of resistance and stray capacitance
Direct measurement of fault current and leakage current

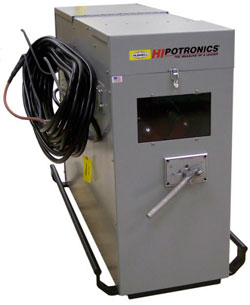

Hipotronics CF30-8-A Cable Fault Locator / Thumper

Self-Contained Unit Features Proof Tester, Burner and Thumper in One
Burn Currents to 50 mA
Impulse Energies of up to 900 J

Amprobe AT 5005 Underground Cable / Pipe Locator System

Locates underground energized and de-energized wires, cables and pipes, eliminates exploratory digging in parking lots or under floors for buried pipes and wires
Signal Select and Distortion Alert icon indicates clean signal of the traced line, versus "ghost" and "return" path signals coming from the neighboring lines
Three testing modes for best accuracy: Passive Power Mode (50, 60, 100 and 120 Hz) – tracing energized lines conducting current Passive Radio Mode (RF) – using surrounding radio
