Electrom Instruments PP-II Power Pack
The Electrom Instruments PP-II Power Pack is a portable two lead high voltage motor tester with an additional ground lead for the motor frame. These power packs are available in 18kV, 24kV, and 30kV options. Electrom Power Pack II instruments can produce surge test output energies from 16 to 45 J depending on the voltage option used. The Electrom Instruments PP-II Power Pack allows users to perform Hipot/Step Voltage tests, Ramp tests and Surge Comparison tests. Insulation resistance tests such as megohm, DAR and PI tests can be done with either the iTIG II or the PP-II. Simply connect the PP-II Power Pack unit to any iTIG II instrument and the PP-II will send test data to the iTIG II which processes, stores and displays the results.
| Surge | |
|---|---|
| Surge Voltage Accuracy | 10% |
| Pulse Repetition Rate | 5 Hz |
| Discharge Capacitance | 100 nF |
| Max Surge Energy | 16 J at 18 kV 29 J at 24 kV 45 J at 30 kV |
| DC Hipot | |
|---|---|
| Voltage Accuracy | 2% |
| Current Accuracy | 2% |
| Current Trip-out | 0-2000 μA |
- Electrom Instruments’ unique voltage generation and control technology has not only enabled us to make the lightest weight 30kV 45J Power Pack on the market, but also to make the Surge and Hipot tests automatic with a surge pulse frequency that is significantly higher than other power packs.
- PP-II instruments are built for both shop and field testing with a rugged case, the same size as the iTIG II.
- The package of features in the PP-II and iTIG II make this high voltage tester very easy to use. Tests can be automatic. Users can set up test profiles and parameters in advance or use default settings.

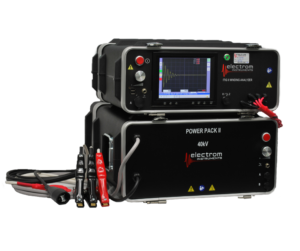

- The PP-II is used together with the iTIG II. Both instruments are connected with a low voltage communication cable, and the PP-II has its own high voltage output leads.
