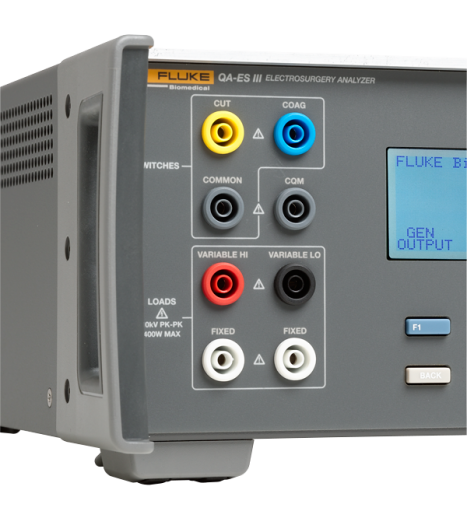

Fluke QA-ES III Electrosurgical Tester and Analyzer

The Fluke QA-ES III Electrosurgical Analyzer is the newest electrical surgical safety tester developed by Fluke Biomedical. The QA-ES III measures the performance of high-frequency medical devices, specifically Electrosurgery Units (ESU). Having the latest technology, the Fluke QA-ES III saves test records via the Fluke Ansur software via either wireless or wired data transfer.

The Electrosurgical Analyzer collects measurements for Vessel Sealing, High Frequency (HF) Leakage, Contact Quality Monitor (CQM), and output Power Distribution in single or continuous mode. Cut and Coag waveforms can also be measured in monopolar or bipolar outputs. With specifications of 10kV and 0mA to 5,500 mA, this covers all basic power measurements of voltage, current, and power under different loads, with greater accuracy than the previous generation unit. The Fluke QA-ES III can test all modern, high-power, electrosurgical units.

Product Info

Housing	Metal case
Dimensions (H x W x L)	5.75 x 13.75 x 18.5 in (14.5 x 35 x 47 cm)
Weight	7.5 kg (16.5 lb.)
Power requirements	100 V ac, 115 V ac, 230 V ac 50 Hz / 60 Hz, universal input 100 V/115 V: 20 VA 230 V: 30 VA
LCD	Monochrome 240 pixels x 64 pixels, 8 lines x 40 characters White LED backlight
Keys	6 (1 fixed, 5 soft-defined) and rotary selector knob
Operating temperature	10°C to 40°C (50°F to 104°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% non-condensing
Altitude	2000 m maximum
IP rating	IEC60529:IP20

Test all critical ESU functions with precise power, current, frequency, crest factor and load resistance ranges
Collect measurements in single and continuous mode
Connect wirelessly via Bluetooth for easy record retrieval without interference or limitation by cables and wires*
Comply to all global standards, including ANSI/AAMI and IEC.
All-in-one tool: all hardware and software necessary to complete preventive maintenance and troubleshooting is built in to the unit, eliminating the need to purchase or transport additional cables, leads, switch boxes and RECM box
User-friendly interface: large buttons and LCD screen guide the user through test sequences
Memory storage of up to 5,000 test records, eliminating the need to download data after the completion of each preventive maintenance or troubleshooting session
*Wireless capabilities not available in all countries. Ask your sales representative for more details. **Bipolar leakage testing performed with 200 ohm fixed load.
