Fluke OptiFiber Pro HDR OTDR S1490 Kit

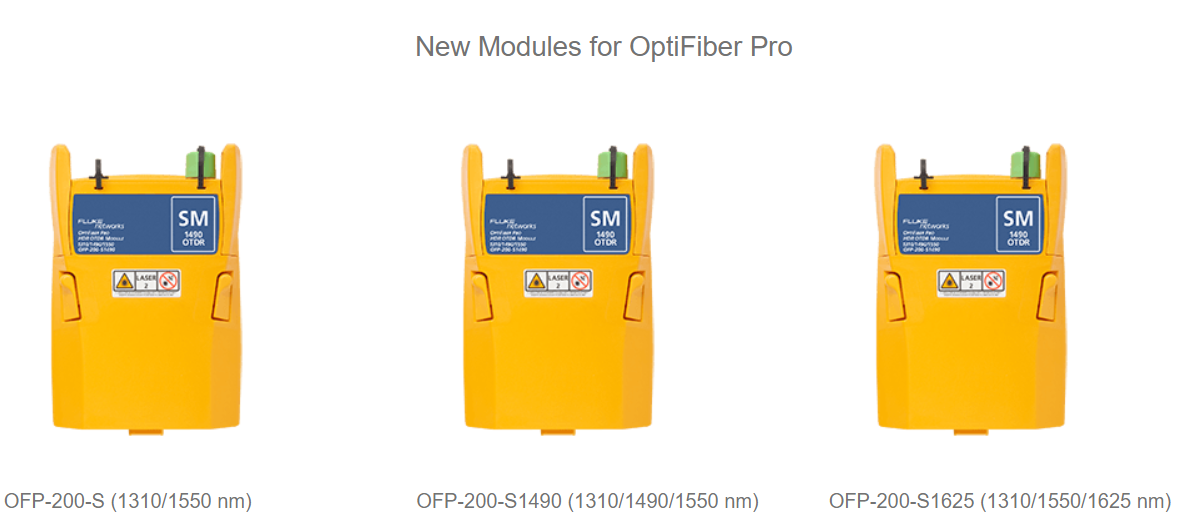

The Fluke OptiFiber Pro HDR OTDR S1490 Kit is a fiber troubleshooting unit with a wavelength combination of 1310, 1490 and 1550 nm, a dynamic range of up to 42 dB and new wavelengths for outside plant/FFTx/Pon testing. Fluke OptiFiber Pro HDR OTDR S1490 packages include a Fluke OptiFiber Pro Series OTDR and a high dynamic range (HDR) module for outside plant applications. OptiFiber Pro HDR units are used for FFTx/PON testing through splitters, allowing operators to automatically locate 1x16, 1x32 and even nx128 splitters with a Discover function. The module features two PON test suites: Auto Pon OTDR, which automatically selects ideal settings for viewing events on OSP (outside plant) cabling, and Manual PON OTDR, a mode which allows you to select trace parameter settings and enter splitter ratios yourself. Fluke OTDRs are compliant with ISO and TIA standards.
| FiberInspector Probe Specifications | |
|---|---|
| Wavelength Combination | 1310, 1490, 1550 nm |
| Magnification | ~ 200X with OptiFiber Pro Display |
| Light source | Blue LED |
| Power source | Versiv Mainframe |
| Field of View (FOV) | Horizontal: 425 µm, Vertical: 320 μm |
| Minimum detectable particle size | 0.5 µm |
| Dimensions | Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip |
| Weight | 200 g |
| Temperature range | Operating: 32°F to 122°F (0 °C to +50 °C), Storage: -4°F to +158°F (-20°C to +70°C) |
| VFL Specifications | |
| On/Off control | Mechanical switch and a button on the touch screen |
| Output power | 316 µW (-5 dBm) ≤ peak power ≤ 1.0 mW (0 dBm) |
| Operating wavelength | 650 nm nominal |
| Spectral width (RMS) | ±3 nm |
| Output modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Connector adapter | 2.5 mm universal |
| Laser safety (classification) | Class II CDRH Complies to EN 60825-2 |
| General Specifications | |
| Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
| Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm) |
| Battery | Lithium ion battery pack, 7.2 volts |
| Battery life | 8 hr Auto OTDR operation, dual wavelength no video probe connected, 150 m of fiber |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
- Taptive™ user interface puts advanced data analysis, easy set-up and operation at the fingertips of technicians of all skill levels
- SmartLoop OTDR enables automated testing and analysis of two fibers in a single test, eliminating the need to travel to the far end of the connection to perform tests
- Multiple wavelengths support a variety of applications: 850, 1300, 1310, 1490, 1550, 1625 nm
- Splitter detection for automated discovery of splitters. Up to 3 cascaded splitters may be found or manually configured
- Macrobend detection for automatic identification of bends
- Expert Manual Mode – simplifies experimentation which allows you to zero in on the part of the trace that interests you
- Ability to edit or add events – Add 0 dB events, such as perfect splices, not seen by the OTDR or change an event to the correct type: APC connector, a splice or loss event
- Span a portion of a link – allows you to select a segment of fiber for analysis within a longer segment. Span allows you to test only the portion for which you are responsible
- Stackable results and batch processing of traces. When testing many identical fibers at a time, batch processing allows users to look at multiple traces and stack them to spot differences and/or batch edit events quickly
- Compatible with LinkWare™ Live. LinkWare Live enables you to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare™ PC Cable Test Management Software
