DeFelsko PosiTest LPD Low Voltage Pinhole Detector

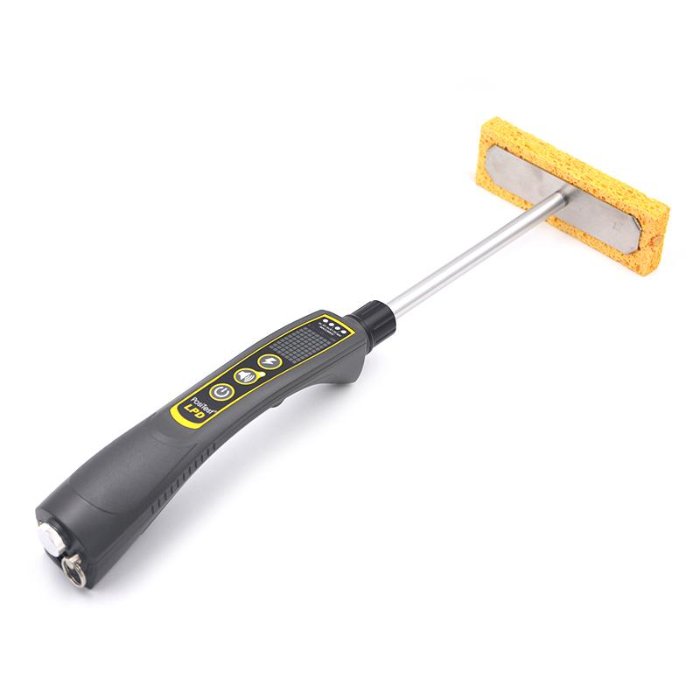

The DeFelsko PosiTest LPD Low Voltage Pinhole Detector is a handheld electronic instrument that locates small defects and discontinuities in a continuous film that acts as a coating system for metal and concrete substrates. This pinhole detector can locate defects that are difficult to see with the naked eye, such as pinholes, holidays, and cracks thinner than 500μm. Additionally, these devices are environmentally sealed enclosures, meaning they are weatherproof, dustproof, and shockproof.

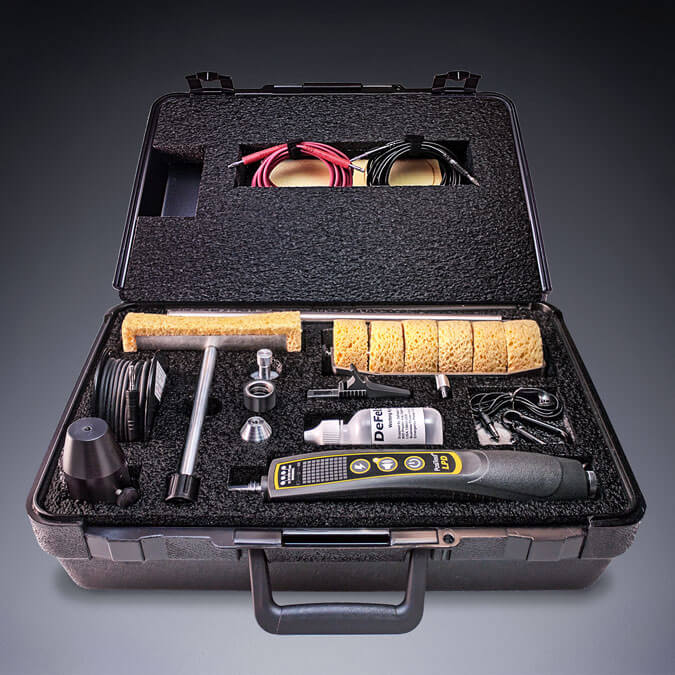

ATEC offers the PosiTest LPD as a complete kit (full accessory list found below).
| Voltage Setting | 9V ± 5% | 67.5V ± 5% | 67.5V ± 5% | 90V ± 5% |
| Sensitivity | 90k ± 3% | 80k ± 3% | 90k ± 3% | 400k ± 3% |
| Thickness Range | 0 – 500 μm (0 – 20 mils) | |||
| Temperature Range | -10 – 50° C (14 – 122° F) | |||
| Battery Life | > 150 hrs (depending on battery type) | |||
| IP Rating | meets or exceeds IP65 | |||
| Size | 27 x 6 x 5.5 cm (10.6" x 2.3" x 2.1") without wand | |||
| Weight | 180 g (6.4 oz.) without batteries | |||
- Ready to measure—both kits come with everything needed for testing
- Audibly and visibly alerts when flaws are detected
- Rugged, environmentally sealed enclosure
- Weatherproof, dustproof and shockproof—meets or exceeds IP65
- Automatic self-test verifies voltage calibration
- Regulated voltage outputs will not drop under load
- Conforms to international standards including ISO, ASTM and NACE
- Uses 3 AAA alkaline or rechargeable batteries
- Rectangle (Flat)
- Roller
- Internal Diameter
- Additional 20 cm x 20 cm (8" x 8") sheet sponge for custom usages
- Wetting agent
- Extension rods provide an additional 0.6 m (2') of reach
- Universal adapters to extend existing paint rollers and poles
- 12 m (40') ground wire
- 4.5 m (15') hot wire
- Magnetic grounding post
- ISO 14654/29601/8289-A
- ASTM G62/G6/D5162
- BS7793-2
- NACE TM0384
- SP0188
- AS3894.2
- JIS K 6766
SKU: DEFE-POSITEST-LPD
