Bird SK-4500-TC SiteHawk Cable & Antenna Analyzer

Larger

SKU: BIRD-SK-4500

Categories

Cable & Antenna Analyzers

Documents

Datasheet
Brochure

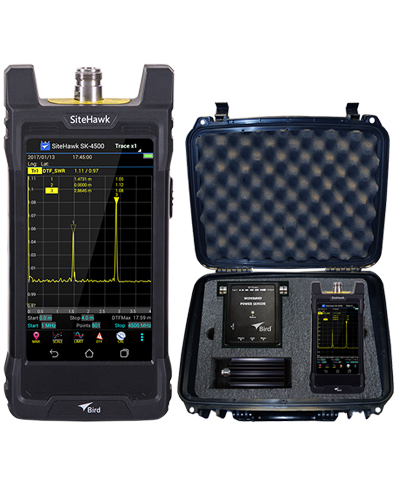

The Bird SK-4500-TC SiteHawk Cable & Antenna Analyzer is a user-friendly device with a frequency range of 1 MHz to 4500 MHz. The SK-4500-TC has a typical output power of -10 dBm, a resolution of 0.01 dB, and a cable loss measurement range of 0 dB to 30 dB. With multiple language options and a 5.5 inch display, the Bird SK-4500-TC SiteHawk Cable & Antenna Analyzer provides operators with the applications needed for a range of testing requirements.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Model	SK-4500-TC
Frequency Range	1 MHz to 4500 MHz
Typical Output Power	-10 dBm
VSWR Measurement Range	1.0 to 65.0
Cable Loss Measurement Range	0 dB to 30 dB
Resolution	0.01 dB
Operating Temperature	14°F to 131°F (-10°C to +55°C)
Storage Temperature	-40°F to 176°F (-40°C to +80°C)
Languages	English, Chinese, Spanish
Display	5.5 in, 1920 x 1080 p
Dimensions	7.7 in x 3.6 in x 2.4 in (195 mm x 90 mm x 60 mm)
Weight	1.98 lb. (0.9 kg)
