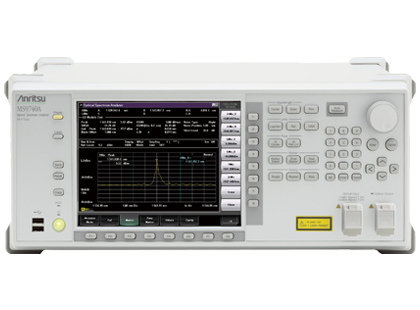

Anritsu MS9740A Optical Spectrum Analyzer | 600nm - 1750nm

Discontinued

View Alternatives

The Anritsu MS9740A Optical Spectrum Analyzer is a user-friendly device with a wavelength measurement range of 600 nm to 1750 nm. With a maximum input power of +23 dBm, a high dynamic range of 60 dB, and more, the Anritsu MS9740A is the ideal model for a variety of testing requirements. The Anritsu MS9740A has a minimum resolution bandwidth of 30 pm.

Product Info

Model	MS9740A
Applicable Optical Fiber	10 μm/125 μm SM fiber (ITU-T G.652) 50 μm/125 μm GI fiber
Wavelength Measurement Range	600 nm to 1750 nm
Wavelength Accuracy	±20 pm (1520 nm to 1620 nm) Resolution: 0.03 to 0.2 nm ±100 pm (1520 nm to 1620 nm) Resolution: 0.5, 1.0 nm
Minimum Resolution Bandwidth	30 pm
Maximum Input Power	+23 dBm (Optical ATT: On)
Dynamic range	High dynamic range: 60 dB (0.4 nm from peak wavelength) Normal dynamic range: 58 dB (0.4 nm from peak wavelength)
Sweep	Sweep width: 0.2 nm to 1200 nm, 0 nm Sweep speed: ≤0.2 sec. (Span 5 nm)
Weight	≤15.0 kg (≤33 lb.)
Dimensions ( W x H x D)	426 x 177 x 350 mm (16.8 x 7.0 x 13.8 in)

Measurement of passive optical devices in <0.2s (5nm) reduces total analysis time
Dedicated applications for evaluating active optical devices
Excellent cost performance
Dynamic range performance ≥60 dB (0.4 nm from peak wavelength)
30 pm minimum resolution bandwidth
Supports SM and MM fibers
Lightweight, 50% less power consumption
