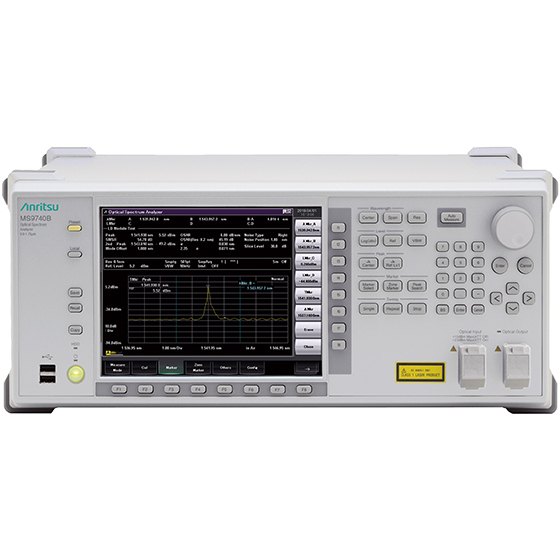

Anritsu MS9740B Optical Spectrum Analyzer | 600nm - 1750nm
The Anritsu MS9740B Optical Spectrum Analyzer is a user-friendly device with a minimum resolution of 30 pm, a wavelength range of 600 nm to 1750 nm, and a wide dynamic range of >58 dB. With an all-in-one design and innovative features, the Anritsu MS9740B provides technicians with the technology needed to complete effective active optical device evaluation. The MS9740B model has a wavelength accuracy of ±20 pm.
| Model | MS9740B |
| Wavelength Range | 600 nm to 1750 nm |
| Dynamic Range | >58 dB (at ±0.4 nm from peak wavelength) |
| Lowest Optical Sensitivity | -90 dBm |
| Minimum Resolution | 30 pm |
| Wavelength Accuracy | ±20 pm |
| Operating Temperature | +5°C to +45°C (+41°F to +113°F) |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
| Relative Humidity | 0 to 90% (no condensation) |
| Display | 800 × 600 dots 8.4 inch SVGA color LCD |
| Dimensions (W x H x D) | 426 × 177 × 350 mm (16.8 x 7 x 13.8 in) Excluding projections |
| Weight (Without Options) | ≤15.0 kg (33 lb.) |
- A wavelength range of 600 nm to 1750 nm
- A dynamic range of >58 dB (at ±0.4 nm from peak wavelength)
- Lowest optical sensitivity of -90 dBm
- A minimum resolution of 30 pm
- ±20 pm wavelength accuracy (C/L band, at wavelength calibration using wavelength calibration light source)
- Supports signal level integration function supporting modulation signals
- Accurate noise position estimation using noise fitting function
- Supports optical axis alignment, wavelength calibration, and effective resolution calibration functions
